Home ProductsBillet compressor wheel

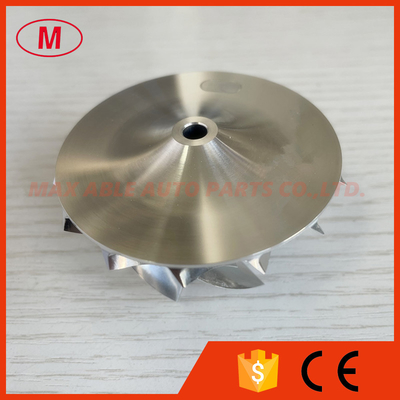

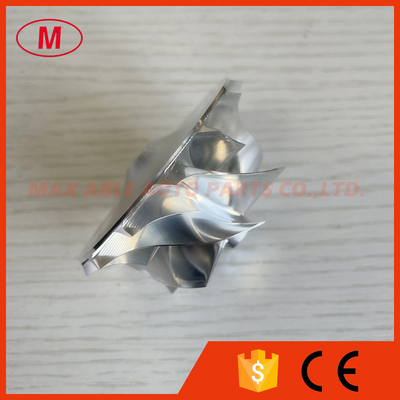

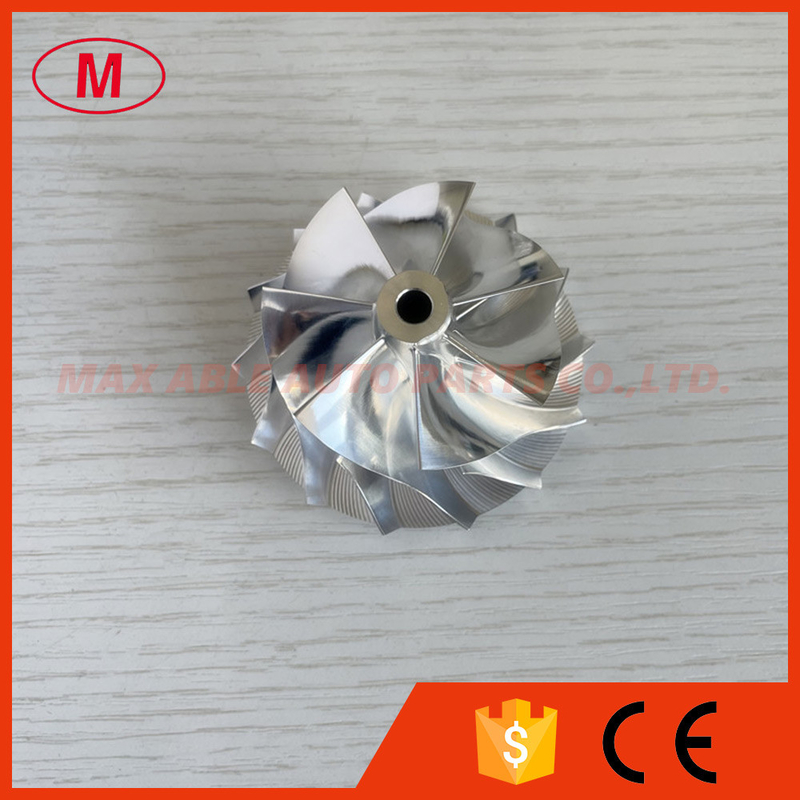

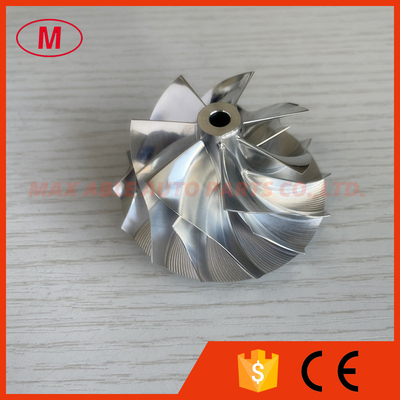

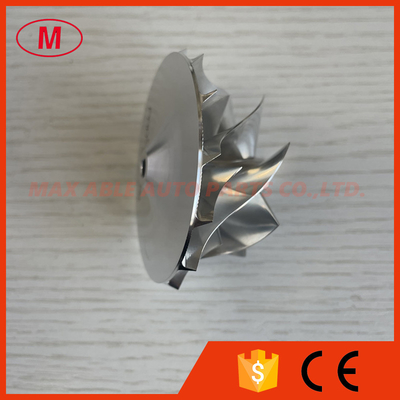

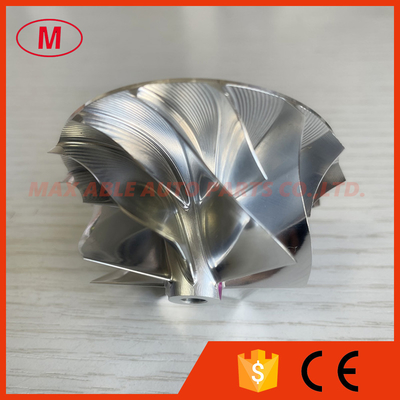

RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5

RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5

    • RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5
    • RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5
    • RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5
    • RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5
    • RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5
    • RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5
    • RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: RHF5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1.Model:RHF5 Forward

    2.RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel



    3.Size:
    Nose diameter:11.00mm
    Inducer:46.50mm
    Exducer:60.00mm
    Tapered tip exducer:63.64mm
    Tip height:4.16mm
    Superback:4.50mm
    Overall height:34.60mm
    Bore size:5.10mm
    bore type:through
    Trailing angle:60 degree
    Cutback:4.2mm
    SP Height angle:0.00
    Blade height:27.30mm
    Splitter height:13.10mm
    7+7 blades
    Forward rotation
    Tapered tip angle:30 degree
    It is custom size ,please check carefully before buying.

    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    All the compressor wheels have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.



    Skype: maxabledieselparts
    Wechat/whatsapp:+ 86-18018657719

    RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5

    RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5RHF5 forward 46.50/60.00mm 7+7blades high performance turbocharger milling/aluminum 2618/billet compressor wheel tip height:4.5
