| Place of Origin: | CHINA |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GTA5518B |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
|

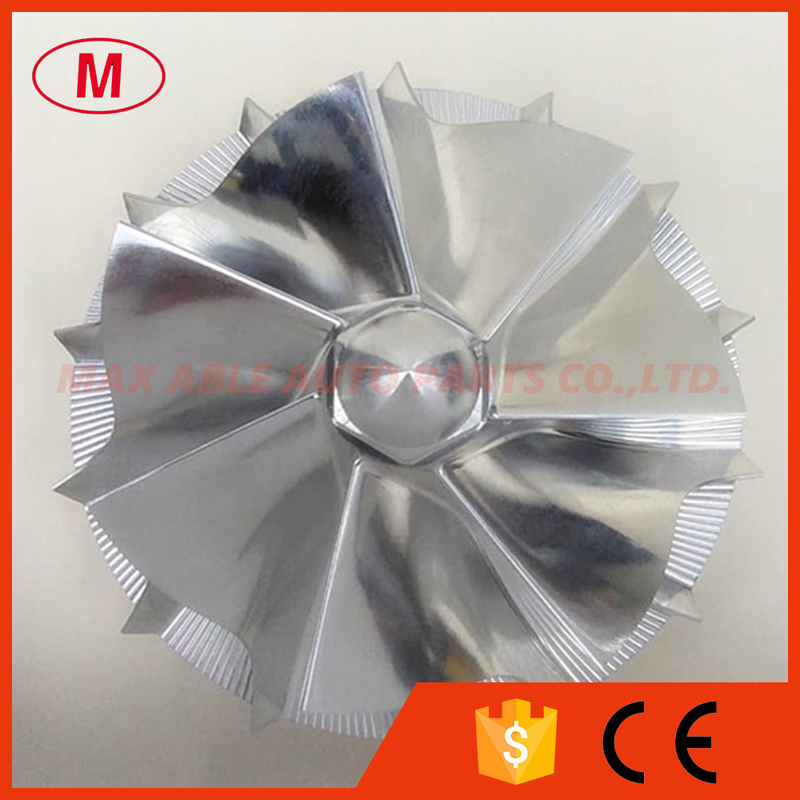

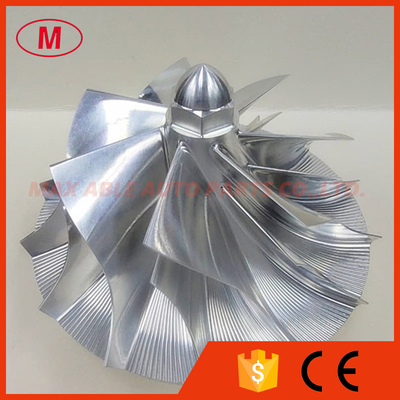

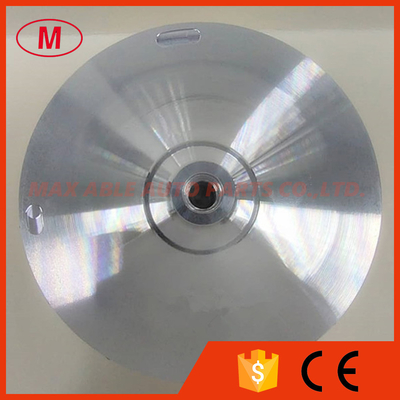

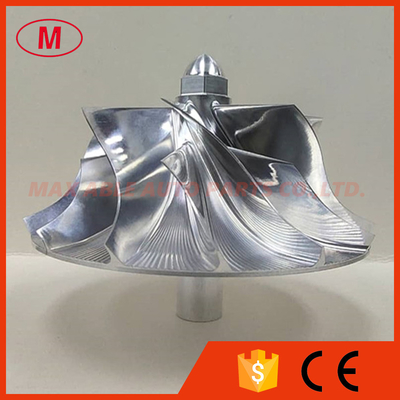

1.Model:GTA5518B Forward 2.GTA5518B 449207-0022 88.00/117.70m 7+7 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
for 739443-0003 3508B, 3516B, PP3516, SR4, 3508B, 3516B, PM3508, PM3516
3.Size:
Nose diameter:21.00mm
Inducer:88.00mm
Exducer:117.70mm
Tapered tip exducer:123.37mm
Tip height:6.41mm
Superback:26.97mm
Overall height:89.01mm
Bore size:10.32mm
Trailing angle:60 degree
Bore type:Boreless-3/8-16G-LHT
Cutback:4.0mm
SP Height angle:10.00
Blade height:43.00mm
Splitter height:25.10mm
7+7blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheel have been balanced.
