Home ProductsBillet compressor wheel

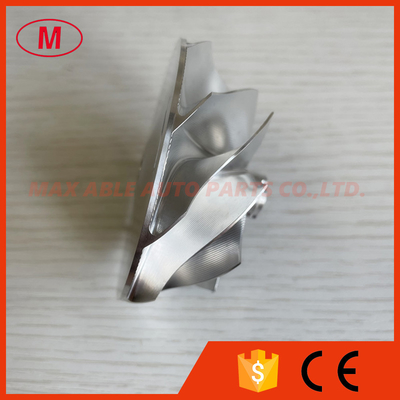

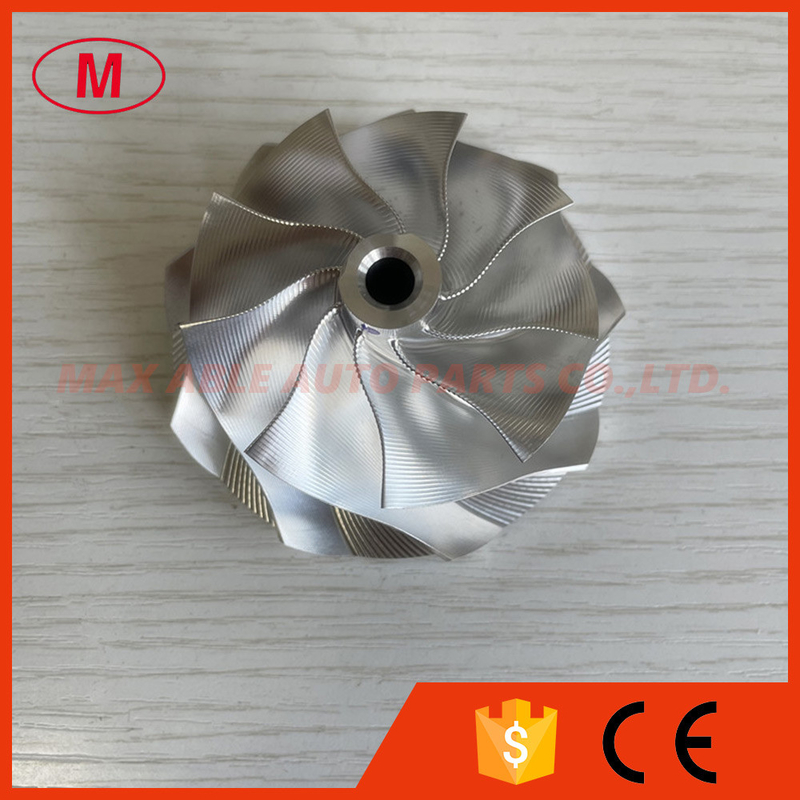

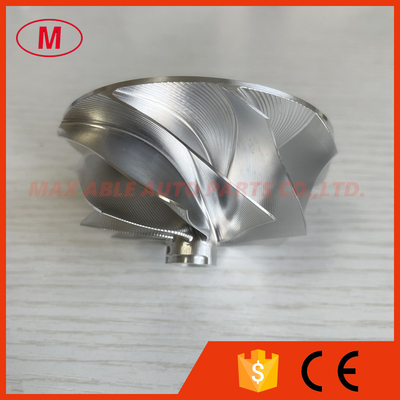

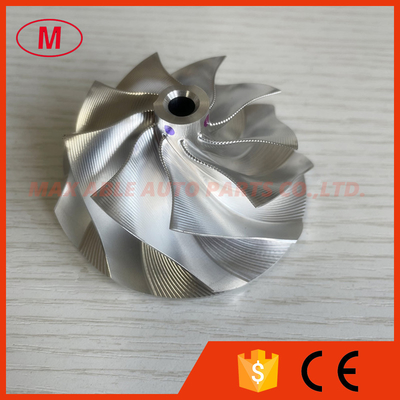

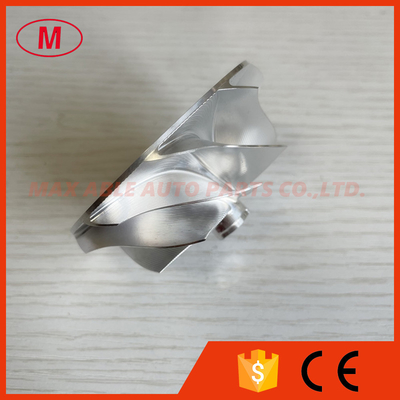

G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S

G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S

    • G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S
    • G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S
    • G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S
    • G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S
    • G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S
    • G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S
    • G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: G30-770

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:G30-770 forward
    2.G30-770 57.52/71.40mm 9+0 blades point milling snake curve Billet/milling/aluminum 2618 compressor wheel for 880693-5002S / 880697-5008S / 880697-5009S/ 880697-5010S/ 880697-5011S
    3.Size:
    Nose diameter:13.15mm
    Inducer:57.52mm
    exducer:71.40mm
    Tapered tip exducer:73.98mm
    Tip height:7.58mm
    Superback:1.75mm
    bore size :6.35mm
    bore type:through
    Overall height:35.23mm
    Cutback:6.70mm
    Trailing Angle:35 degree
    SP height angle:0.00
    Splitter height:0.00mm
    Blade height:27.60mm
    9+0 blades forward
    Fit for OE compressor housing
    Tapered tip Angle:11.4 degree
    Application:
    880693-5002S / 880697-5008S / 880697-5009S/ 880697-5010S/ 880697-5011S
    4.High quality and competitive price.
    5.if you want more details, please send email to me.
    We can produce as your requirement ,the minimun order is 5pcs
    All the compressor wheels have been balanced.
    G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S

    G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009SG30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009SG30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009SG30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009SG30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009SG30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S
