1.Model:K04 forward

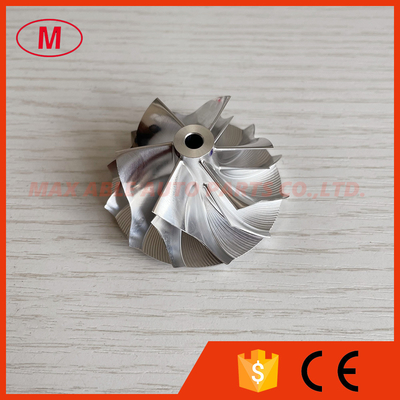

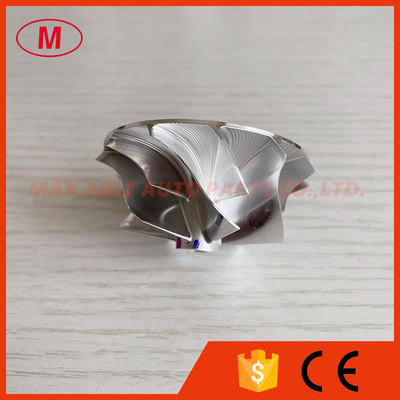

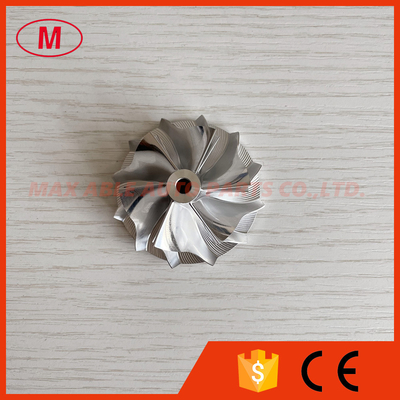

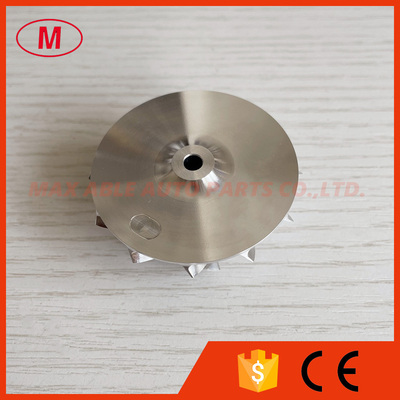

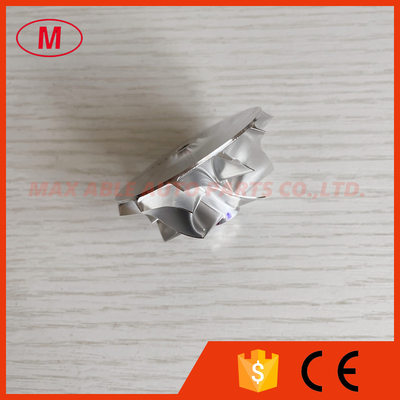

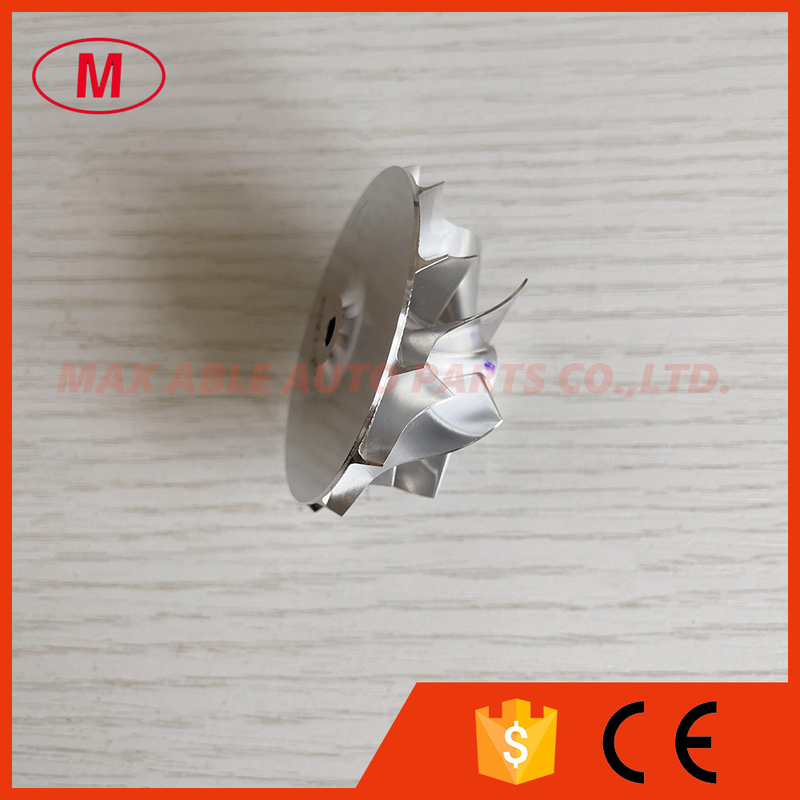

2.K04 6+6 blades 41.02/50.96mm high performance billet/milling/aluminum 2618 compressor wheel
for 5303-970-0260/0154/0191/0198/0237/0238/0240/0259/0269/0288/0289 GTDI/FordS-Max/LandRoverRangeRoverEvoque/LandRoverLR2/LandRoverDiscoverySport/Ecoboost Engine:AJ-I4D/B4204T7
3.SIZE:
Nose diameter:10.30mm
inducer:41.02mm
Exducer:50.96mm
Tapered tip exducer:54.59mm
Tip height:4.15mm
Superback:1.80mm
Overall height:25.65mm
bore size :4.61mm
bore type:through
Trailing angle :60 degree
blade height:21.90mm
Cutback:8.00mm
Splitter height:12.20mm
SP height angle:0.00
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
Application:
5303-970-0260
5303-970-0154
5303-970-0191
5303-970-0198
5303-970-0237
5303-970-0238
5303-970-0240
5303-970-0259
5303-970-0269
5303-970-0288
5303-970-0289
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheels have been balanced.
We can produce as your requirement.
