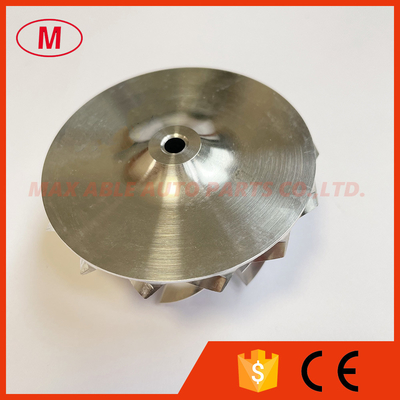

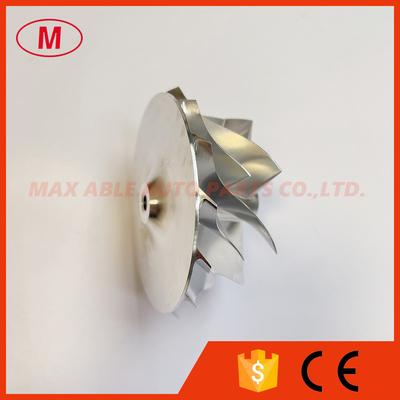

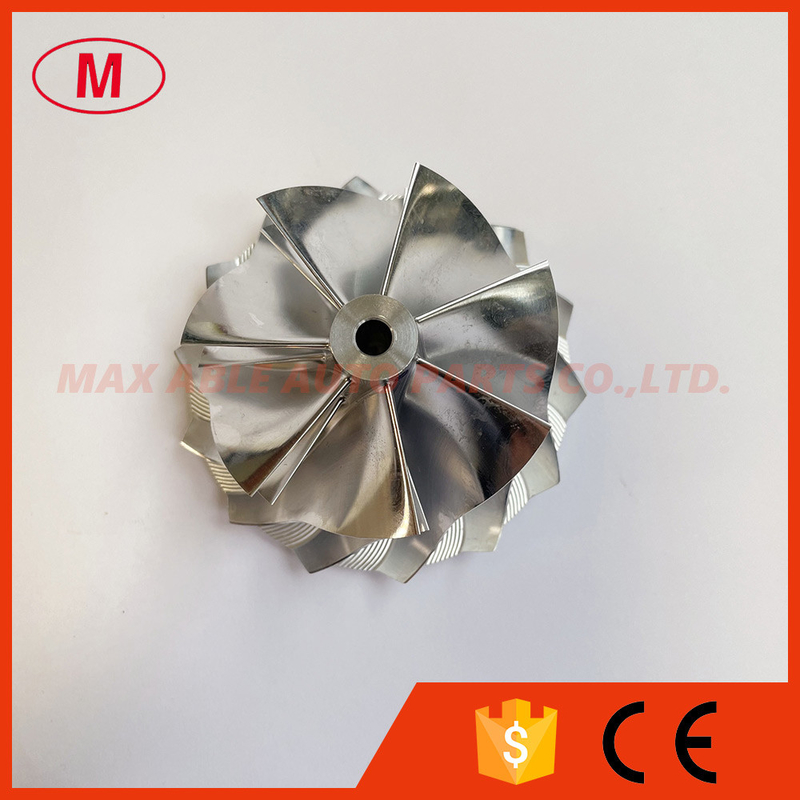

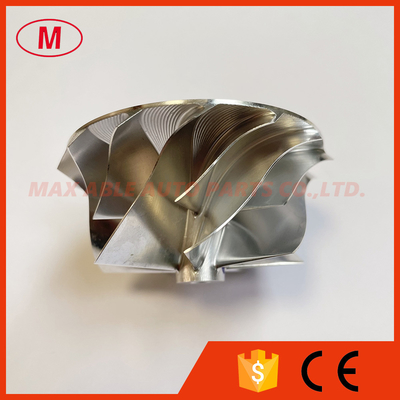

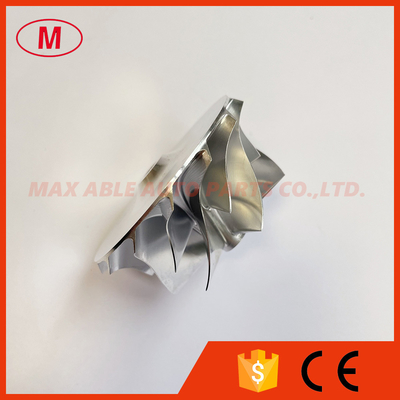

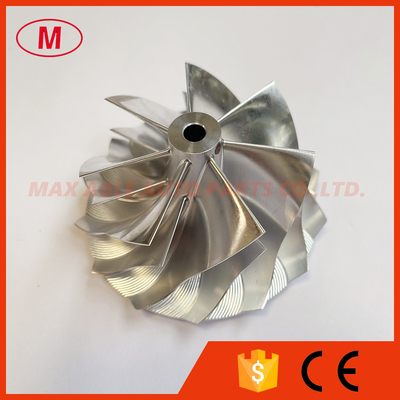

CT01 reverse 7+7blades 52.00/63.00mm high performance turbo milling/aluminum 2618/billet compressor wheel

Contact Now

Detailed Product Description

1. MODEL:CT01 reverse

2.CT01 reverse 7+7blades 52.00/63.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:11.50mm

Inducer:52.00mm

exducer:63.00mm

Tapered tio exducer:67.04mm

Tip height:4.50mm

Superback:3.60mm

bore size :4.81mm

Bore type:through

Overall height:35.10mm

Cutback:3.0mm

Trailing Angle:45 degree

Blade height:28.70mm

Sp Height angle:-5.00

Splitter height:18.00mm

7+7 blades

reverse rotation

It is for custom size ,please check carefully before buying.

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

CT01 reverse 7+7blades 52.00/63.00mm high performance turbo milling/aluminum 2618/billet compressor wheel
