1. MODEL:custom REVERSE

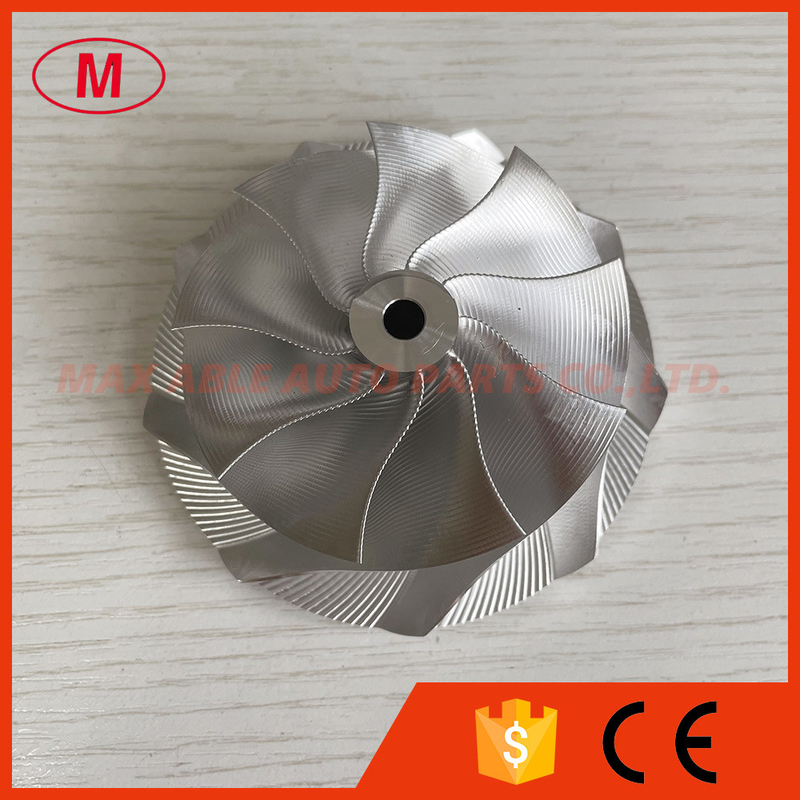

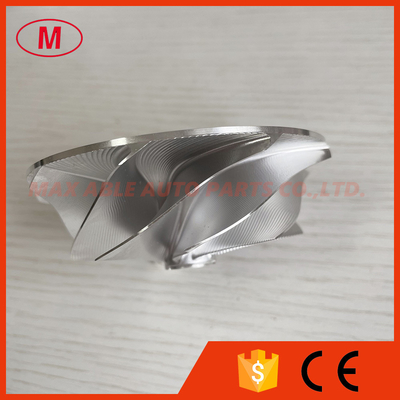

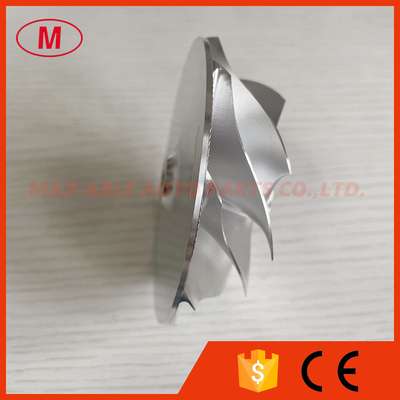

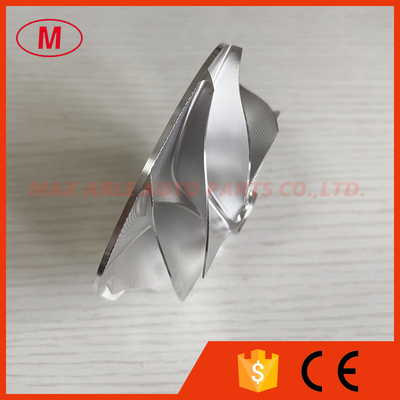

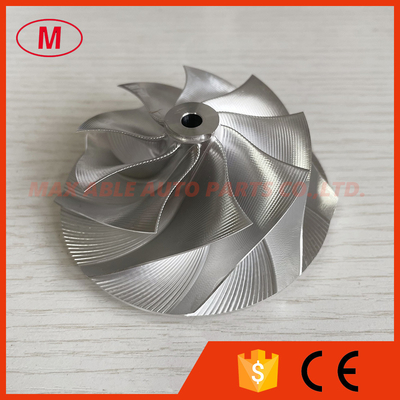

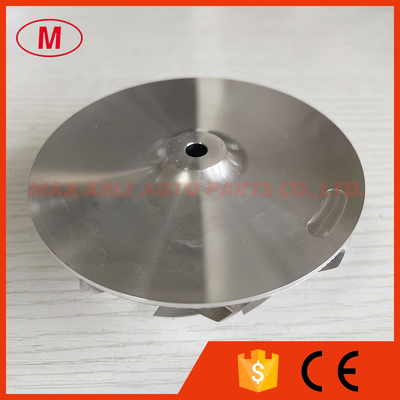

2.custom reverse 68.00/87.00mm 9+0 blades Point Milling,Snake Curve, Performance Design Turbocharger milling/aluminum 2618/Billet compressor wheel
3.Size:
Nose diameter:15.30mm
Inducer:68.00mm
exducer:87.00mm
Tapered tip exducer:89.00mm
Tip height:5.71mm
Superback:3.72mm
bore size :5.80mm
bore type:through
Overall height:34.60mm
Trailing angle:45 degree
Cutback:5.00mm
SP height angle:0.0
Splitter height:0.00mm
Blade height:24.92mm
9+0blades reverse
Tapered tip angle:13.4 degree
It is for custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
