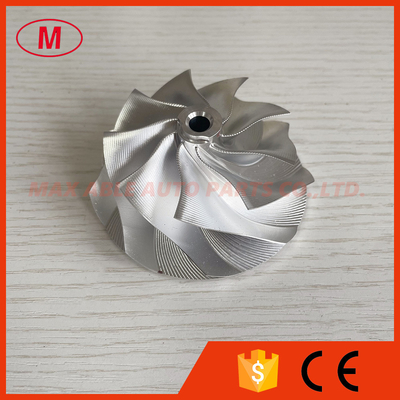

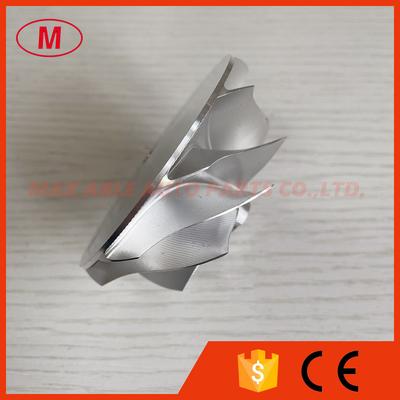

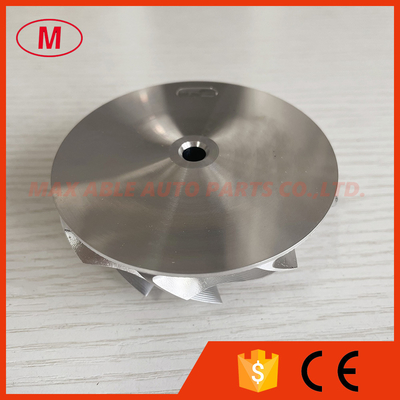

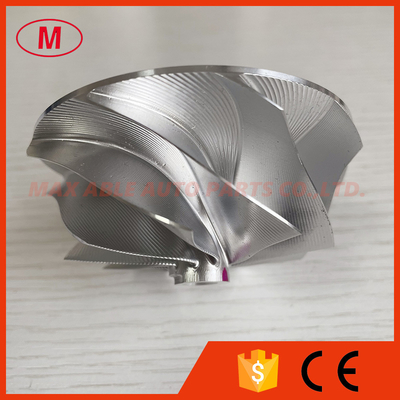

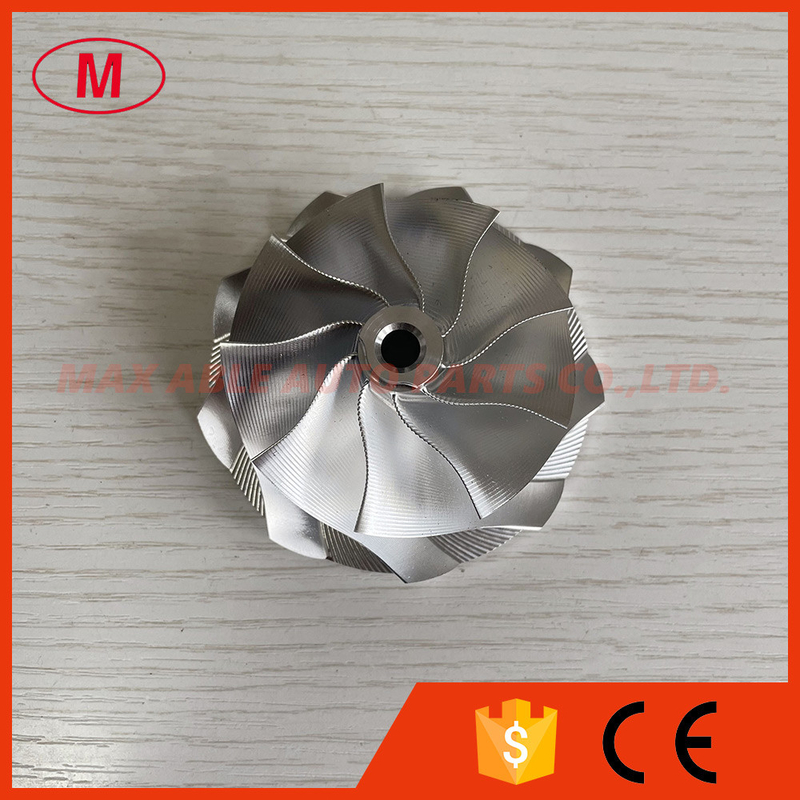

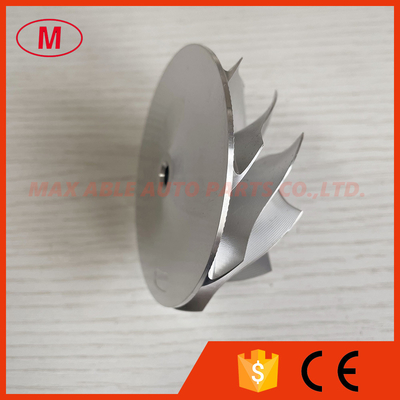

TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel

TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel

    • TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel
    • TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel
    • TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel
    • TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel
    • TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel
    • TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel
    • TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel

    Product Details:

    Place of Origin: CHINA
    Brand Name: NO
    Model Number: TD05

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description

    1. MODEL:TD05 Forward
    2.TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel
    3.Size:
    Nose diameter:14.10mm
    Inducer:61.75mm
    exducer:76.60mm
    Tapered tip exducer:79.36mm
    Tip height:8.15mm
    Superback:1.67mm
    bore size :6.50mm
    bore type:through
    Overall height:35.00mm
    Cutback:6.50mm
    Trailing Angle:35 degree
    SP height angle:0.00
    Splitter height:0.00mm
    Blade height:29.50mm
    9+0 blades forward
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:11.55 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719


    TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel
    TD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheelTD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheelTD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheelTD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheelTD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheelTD05 forward 61.75/76.60mm 9+0 blades point milling snake curve milling/aluminum 2618/billet compressor wheel
