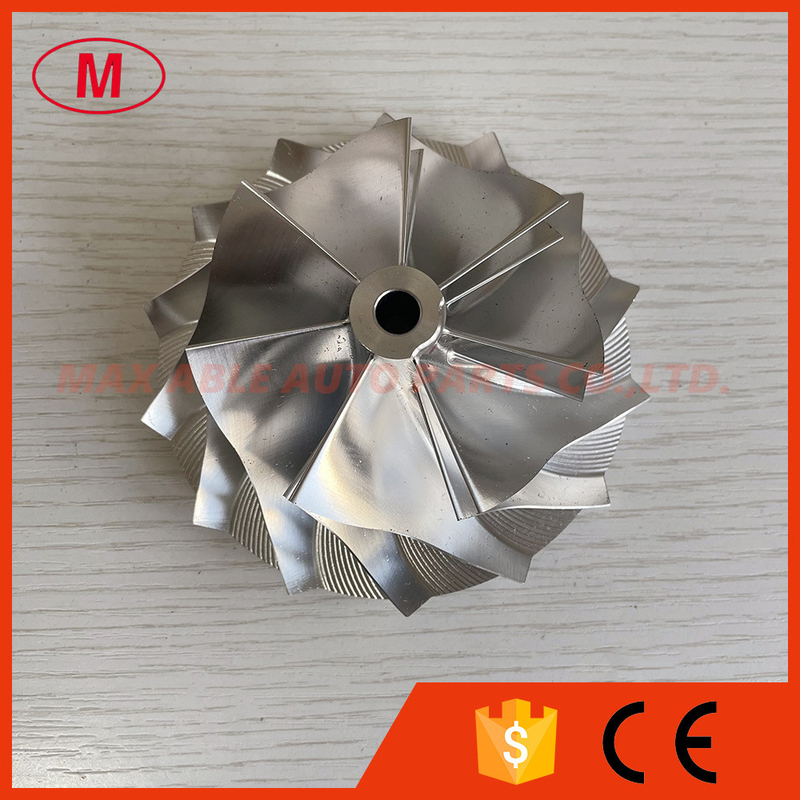

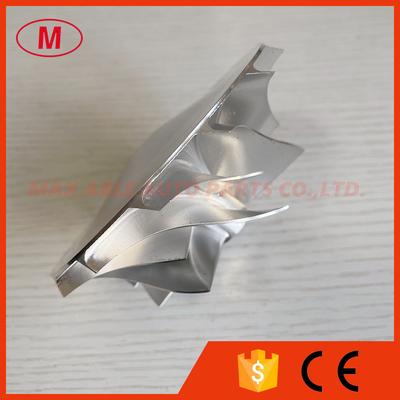

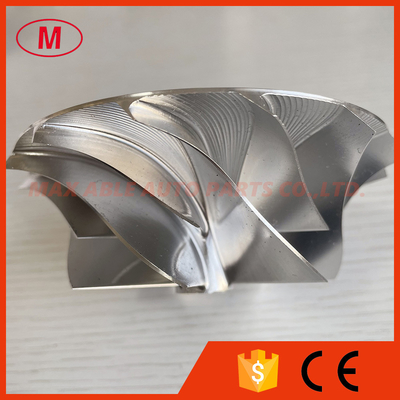

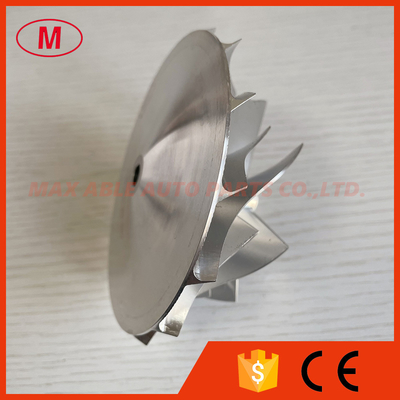

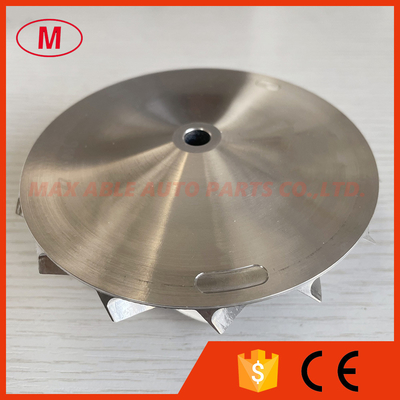

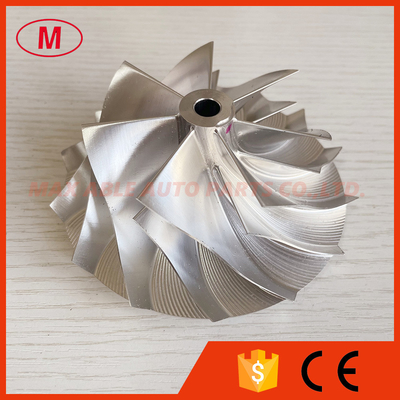

HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319

HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319

    • HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319
    • HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319
    • HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319
    • HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319
    • HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319
    • HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319
    • HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319

    Product Details:

    Place of Origin: CHINA
    Brand Name: NO
    Model Number: HX50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description

    1.Model:HX50 forward
    2.HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel for 4044319/4044840/4047075/4044198 Volvo/Scania/Man/Mercedes /Iveco/Daewoo
    3.Size:
    Nose diameter:17.45mm
    Inducer:77.00mm
    exducer:105.00mm
    Tapered tip exducer:111.50mm
    Tip height:6.63mm
    Superback:6.27mm
    bore size :8.01mm
    bore type:through
    Overall height:45.05mm
    Cutback:0.0mm
    Trailing Angle:50 degree
    SP height angle:-2.50
    Blade height:36.81mm
    Splitter height:24.35mm
    7+7 blades forward
    It is custom size ,please check carefully before buying
    Tapered tip Angle:30 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.
    we can desgin and produce as your requirement.

    All the compressor wheels have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719



    HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319
    HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319HX50 3593686 7+7 blades 77.00/105.00mm high performance turbo milling/aluminum 2618/billet compressor wheel for 4044319
