1. MODEL:K04 FORWARD

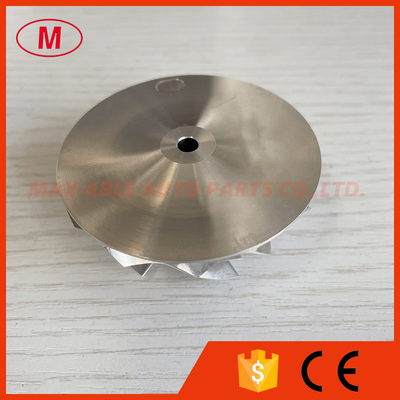

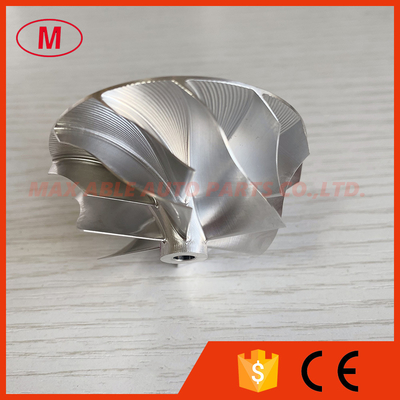

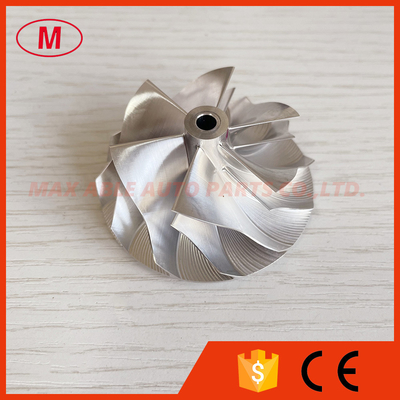

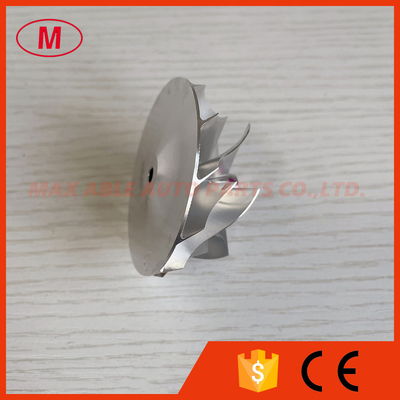

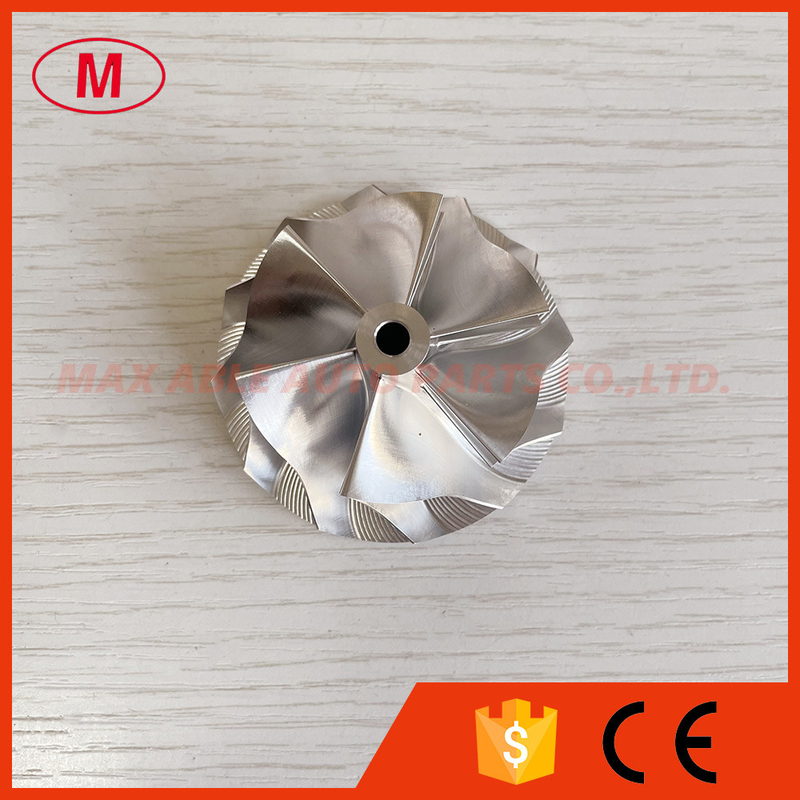

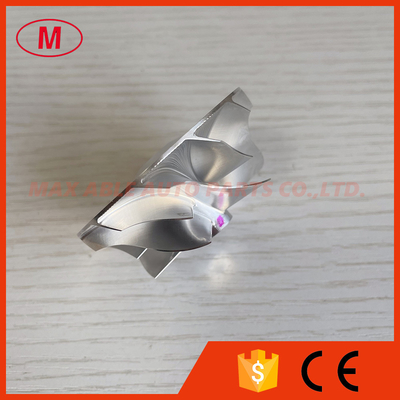

2.K04 45.00/58.00mm 6+6 blades forward turbo turbocharger aluminum 2618/milling/billet compressor wheel
3.Size:
Nose diameter:10.15mm
Inducer:45.00mm
exducer:58.00mm
Tip height :6.13mm
superback:1.80mm
Overall height:26.70mm
Bore size:4.61mm
bore type:through
Trailing Angle:45 degree
Cutback:0.0mm
SP height Angle:-2.50
Blades height:21.94mm
Splitter Height:15.00mm
6+6 blades
forward rotation
Tapered tip Angle: 0 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
