Customer Satisfy is the eternal pursue of corporation.
Place of Origin: | CHINA |
Brand Name: | NO |
Model Number: | RHF55 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000 |
1. MODEL:RHF55 forward

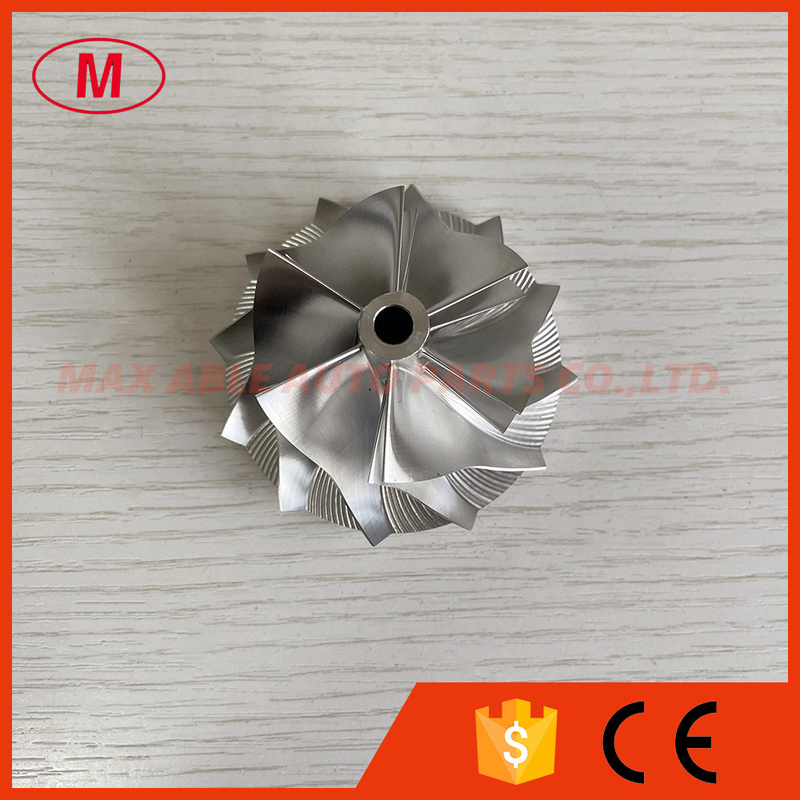

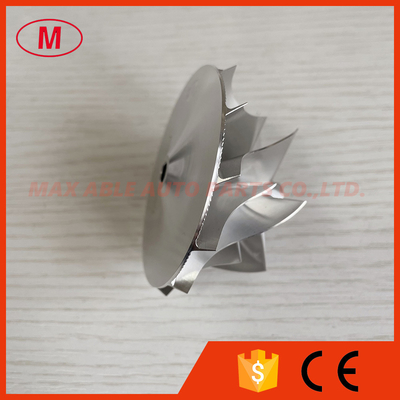

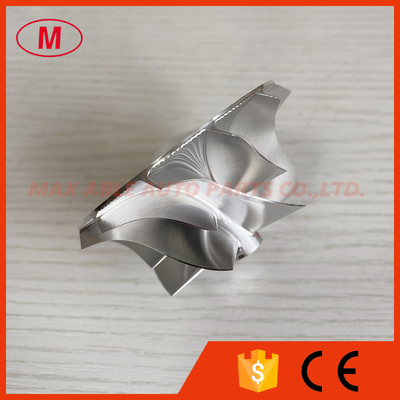

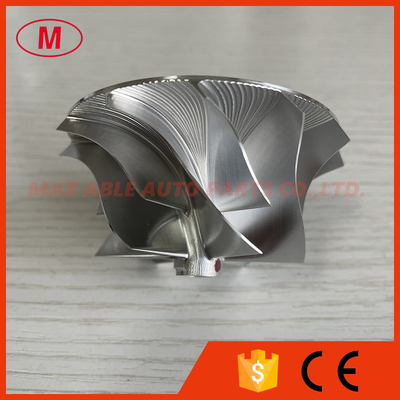

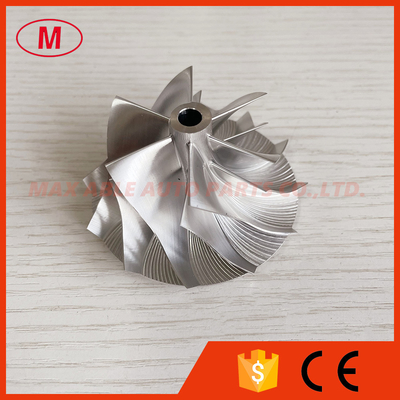

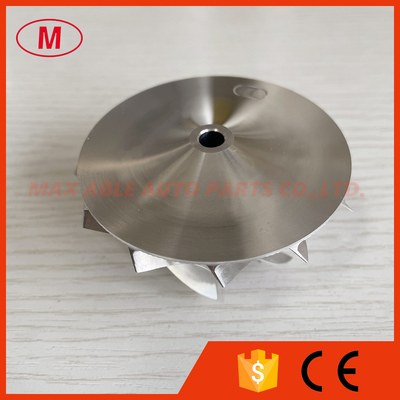

2.RHF55 48.62/65.00mm 6+6 blades high performance Turbo aluminum 2618/milling/ Billet compressor wheel for Fit IHI CHRA
3.Size:
Nose diameter:11.26mm
Inducer:48.62mm
exducer:65.00mm
Tapered tip exducer:69.99mm
Tip height :5.32mm
superback:3.68mm
Overall height:37.07mm
Bore size:6.10mm
bore type:through
Trailing angle:60 degree
Cutback:0.0mm
SP height angle:-3.00
Blade height:29.66mm
Splitter height:20.35mm
6+6 blades
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
