Customer Satisfy is the eternal pursue of corporation.
Place of Origin: | CHINA |
Brand Name: | NO |
Model Number: | GTA4702 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000 |
1.Model:GTA4702 forward rotation

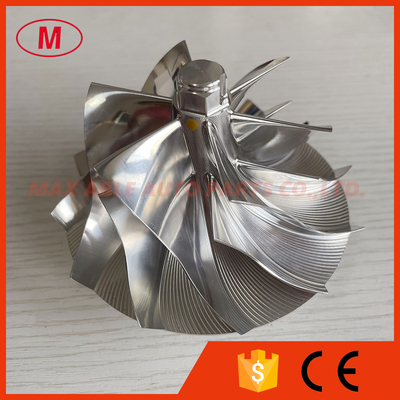

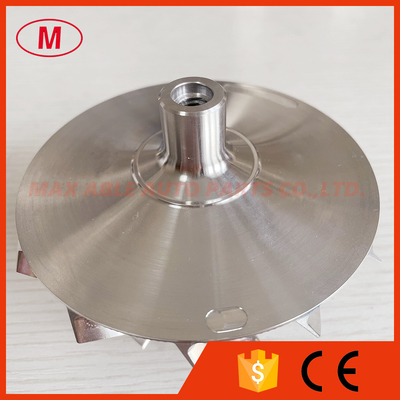

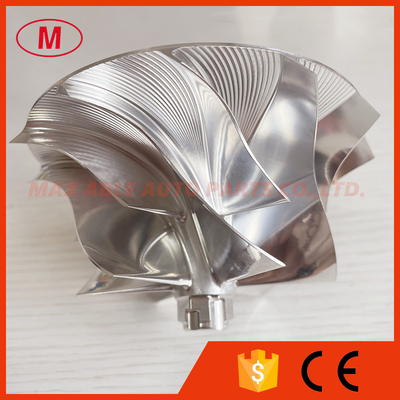

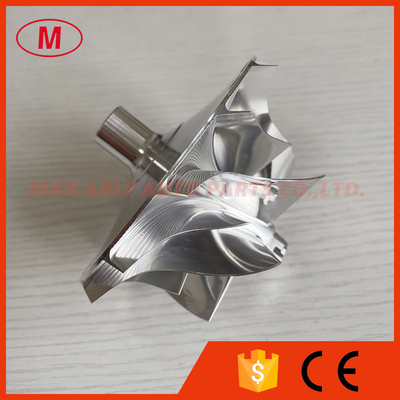

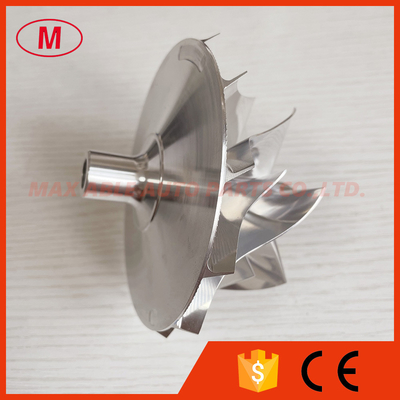

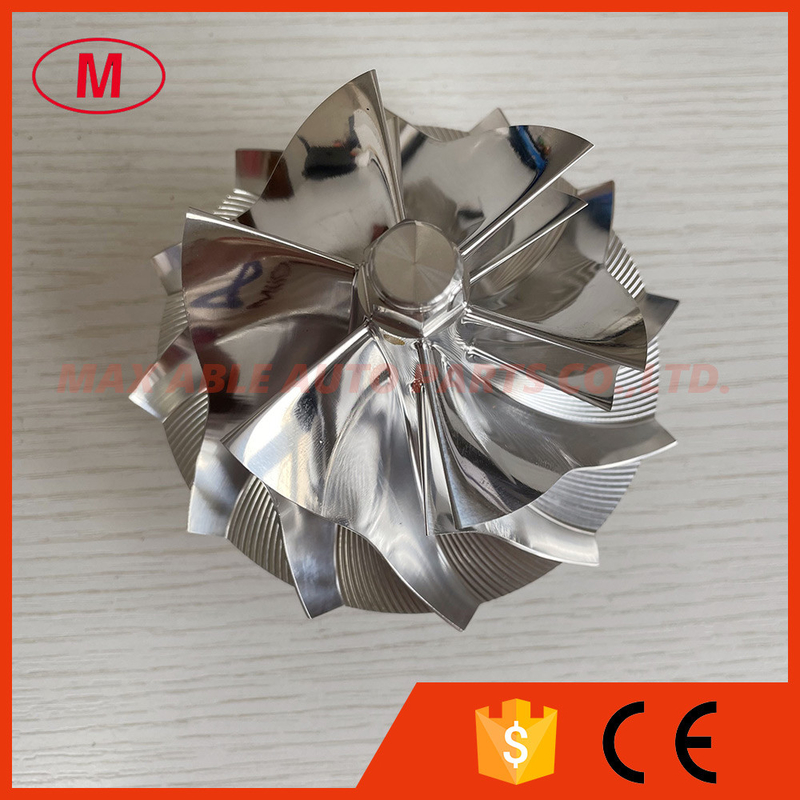

2.GTA4702 451936-0001, 448671-0009 74.70/102.38mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for 466445-0014, 704604-0003, 704604-0007, 715735-0016, 761302-0001, 451686-0016, 451686-0018, 712371-0016,466445-0021, 466445-0022, 466445-0023, 466445-0024, 471066-0001, 471119-0001,0R-6985, 0R-7310, 0R-9806, OR-7923, 124-3031, 1243031, 160-5548, 1605548, 167-9271, 1679271, 175-6218,1756218,176-7716, 1767716, 23535347, E23535347, R23535347, R23535348. 1994-01: CAT with 14.64L 3406E, C12, C15 Diesel Engine/2004-: Scania with 15.6L DC1604, DC1605 Diesel Engine/2005-: Scania with 15.6L DC1605, DC1606 Diesel Engine
3.Size:
Nose diameter:17.17mm
Inducer:74.70mm
Exducer:102.38mm
Tapered tip exducer:109.95mm
Tip height:7.56mm
Superback:26.98mm
Overall height:82.80mm
Bore size:10.32mm
bore type:Boreless-3/8-16G-LHT
Trailing angle:60 degree
Cutback:0.0
SP Height angle:-7.50
Blades height:44.51mm
Splitter height:29.45mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
ALL the billet compressor wheels have been balanced.
