Brand Name: | NO |
Certification: | ISO |
Model Number: | GT28 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1.Model:GT28 reverse

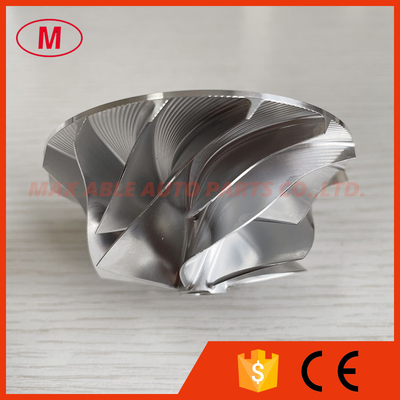

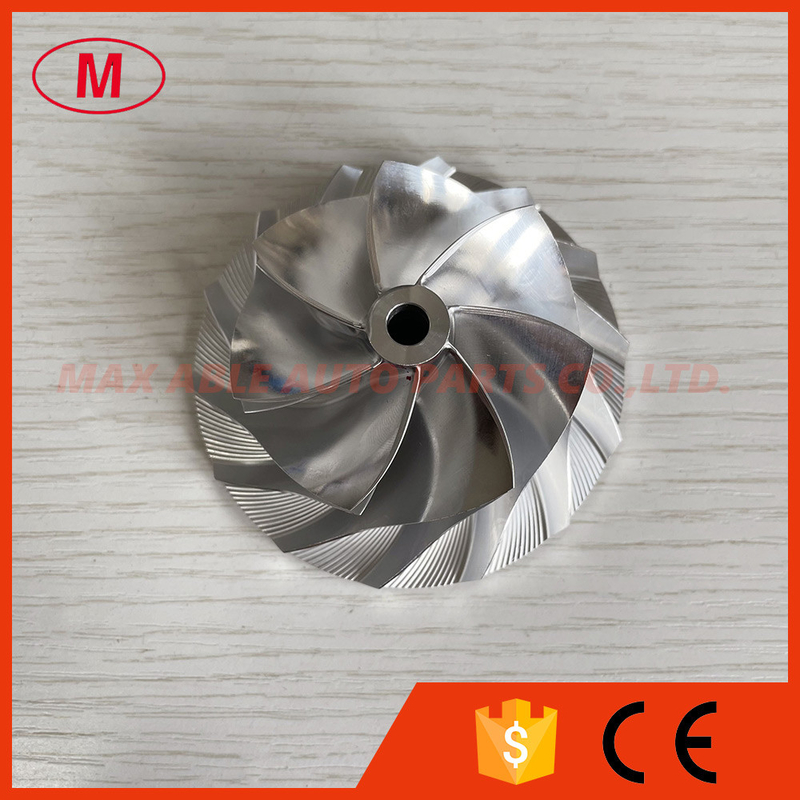

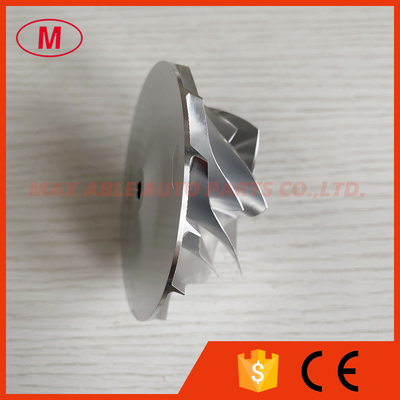

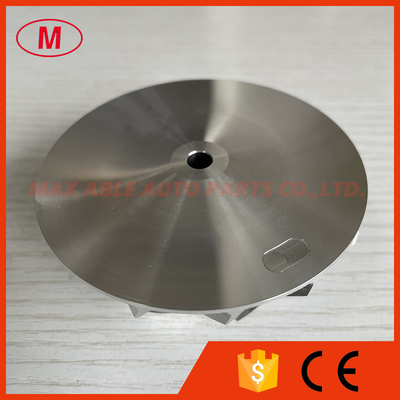

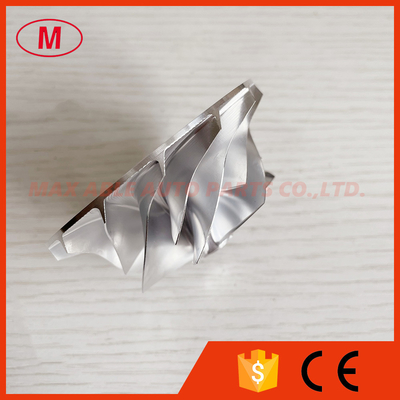

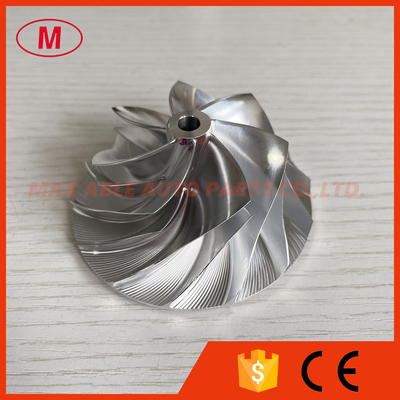

2.GT28 reverse 54.28/76.13mm 7+7 Blades LEP Style turbo billet/aluminum 2618/Milling compressor wheel
3.Size:
Nose diameter:11.80mm
Inducer:54.28mm
Exducer:76.13mm
Tapered tip exducer:76.51mm
Tip height:5.52mm
Trailing angle:60 degree
Superback:1.75mm
Bore:6.00mm
bore type:through
Cutback:11.4mm
Overall height:34.70mm
SP Height angle:-14.50
Blades height:31.50mm
Splitter height:20.50mm
7+7 blades
Tapered tip angle:2.5 degree
reverse rotation
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
we can produce as your requirement ,the minimum order is 5pcs.
