1. MODEL:S400 Forward

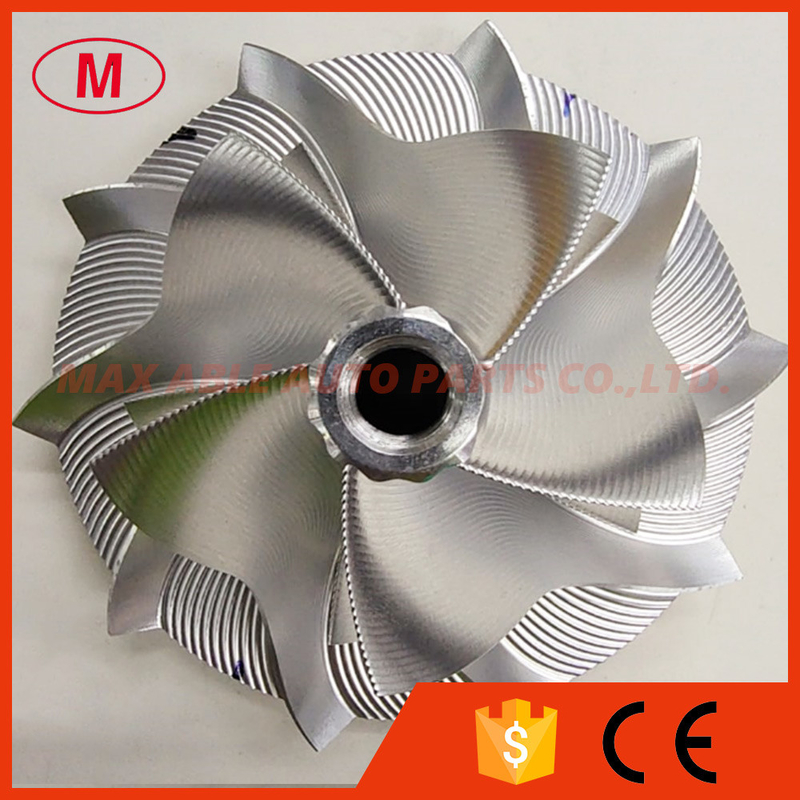

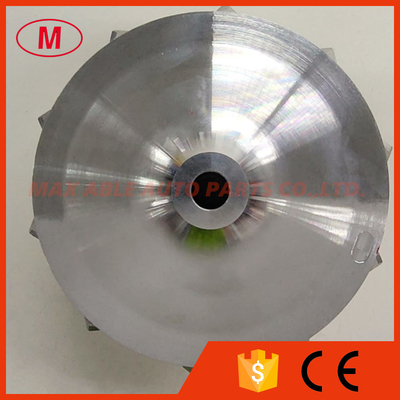

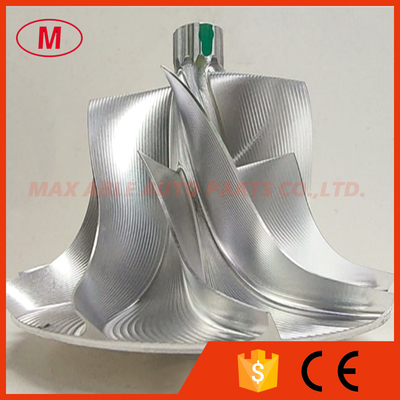

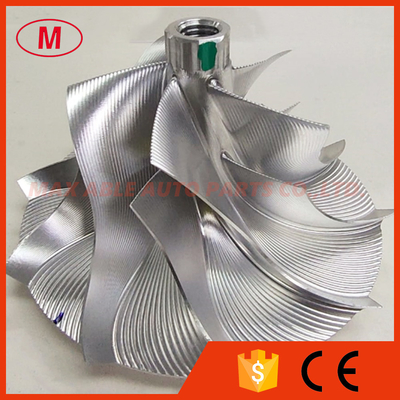

2. S400 63.55/101.40mm 5+5 blades Point Milling, Performance Design, Dodecagon Nut Turbo Billet/milling/aluminum 2618 compressor wheel .
3.Size:
Nose diameter:15.00mm
Inducer:63.55mm
Exducer:101.44mm
Tapered tip exducer:110.70mm
Tip height:5.65mm
Superback:8.50mm
Overall height:65.00mm
Bore size:10.00mm
bore type:Threaded-M10x1.5-LHT
Trailing angle:60 degree
Overall height:65.00mm
Cutback:10.0mm
SP Height angle:-6.30
Blades height:46.00mm
Splitter height:28.50mm
5+5 blades
Forward rotation
Tapered tip angle:45 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheels have been balanced.
