Home ProductsBillet compressor wheel

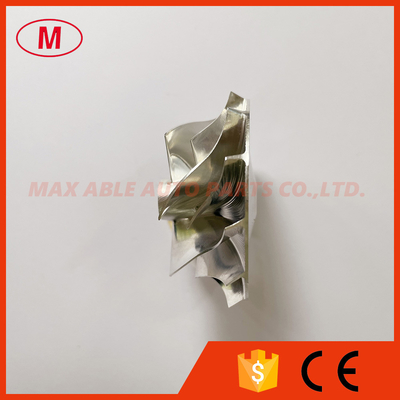

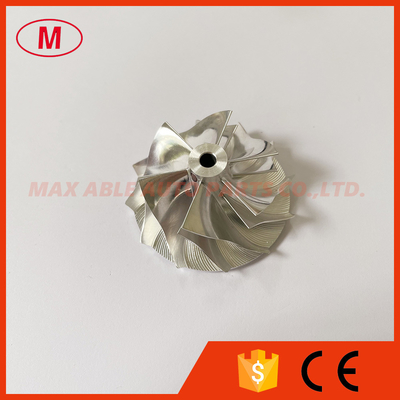

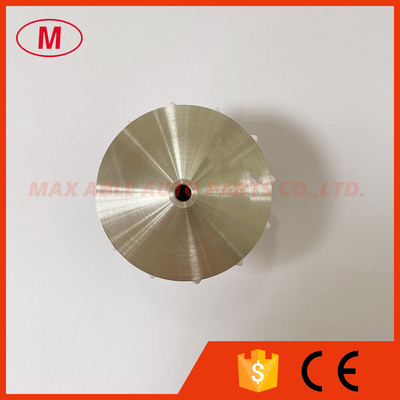

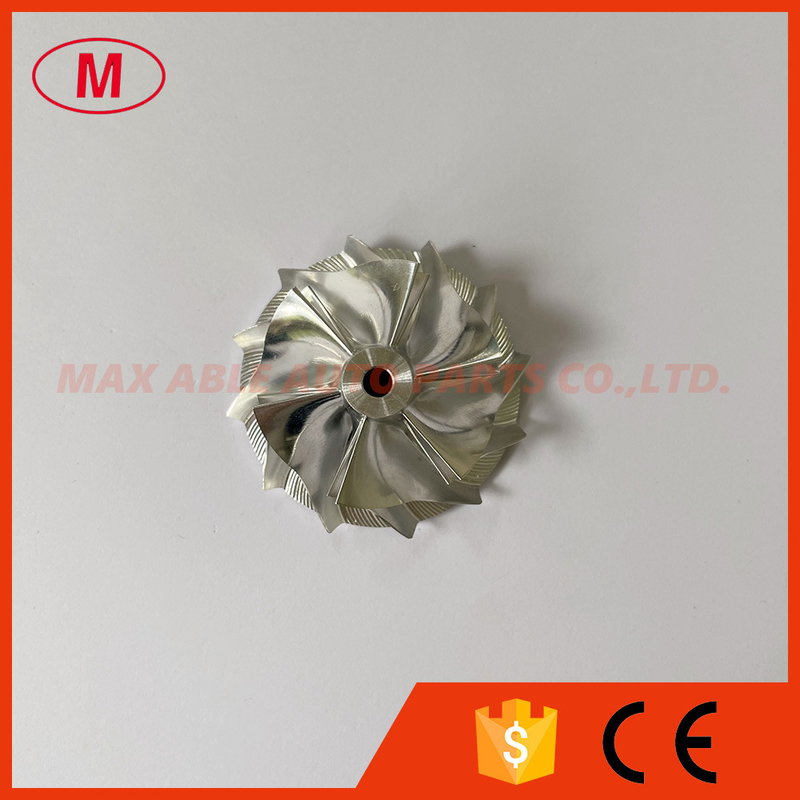

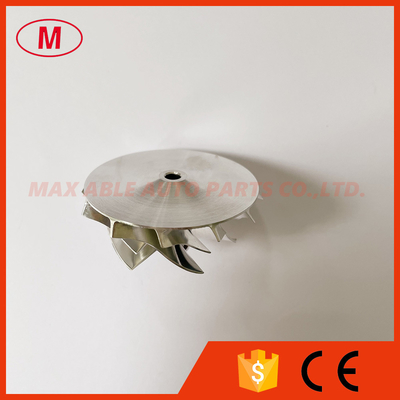

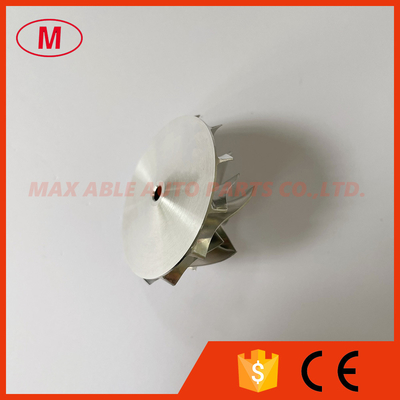

TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610

TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610

    • TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610
    • TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610
    • TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610
    • TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610
    • TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610
    • TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610
    • TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610

    Product Details:

    Place of Origin: China
    Brand Name: no
    Model Number: TD03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD03 forward
    2.TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo Billet/milling/aluminum 2618 compressor wheel for 49131-05400/08610/5210/05211/05212/05252/05312/05313/05353/05401/05402/05403/05452
    3.Size:
    Nose Diameter:9.67mm
    Inducer:35.09mm
    exducer:44.01mm
    Tapered tip exducer:47.57mm
    Tip height:4.09mm
    Superback:1.68mm
    bore size :4.00mm
    bore type:through
    Overall height:21.60mm
    Trailing angle:30 degree
    Blade height:17.14mm
    Cutback:0.0mm
    Sp Height angle:-3.60
    Splitter height:11.65mm
    Tapered tip angle: 30 degree
    6+6 blades forward
    It is for OE compressor housing
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
    skype: maxabledieselparts
    wechat/whatsapp:+8618018657719
    TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610
    TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610
