| Model Number: | G25-550 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 48.35/60.00mm | Type: | Turbochargers |
|---|
1.Model:GT25-550 FORWARD

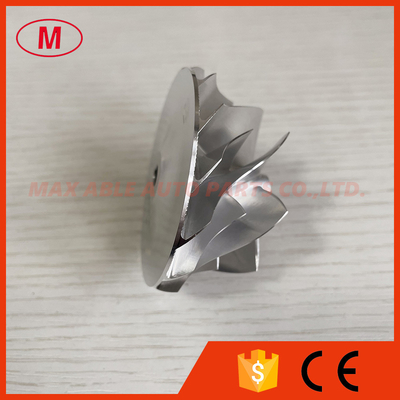

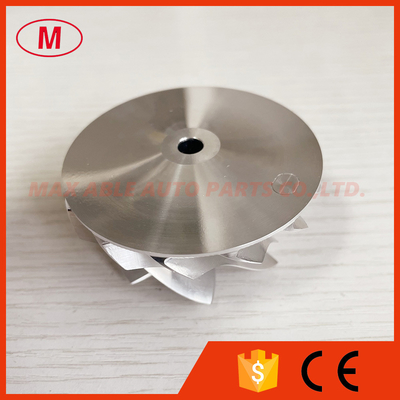

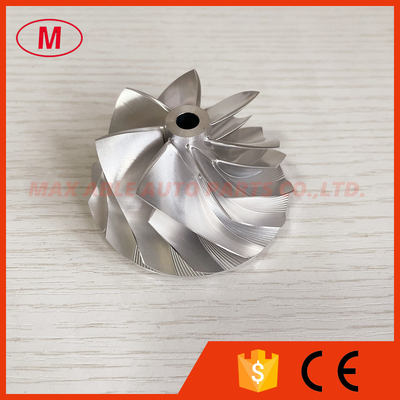

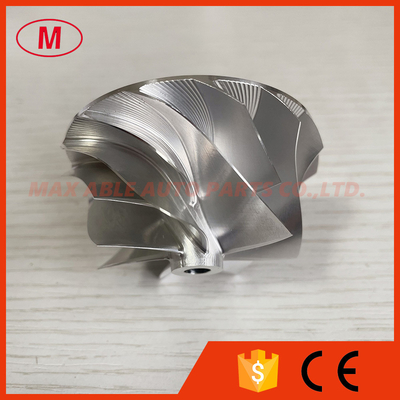

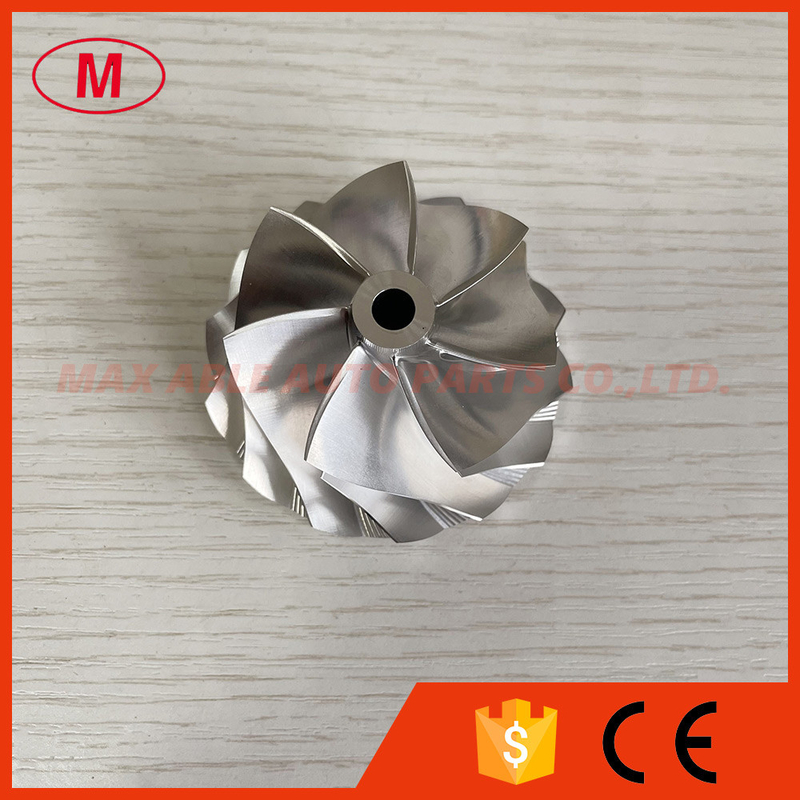

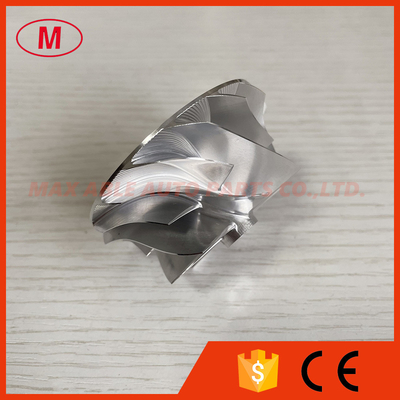

2. G25-550 48.35/60.00mm 7+7 Blades LEP style turbo aluminum 2618/Milling/billet compressor wheel for 871389-5004S/871389-5005S/877895-5001S/877895-5003S/877895-5004S/877895-5011S
3.Size:
Nose diameter:11.80mm
Inducer:48.35mm
Exducer:60.00mm
Tapered tip exducer:62.16mm
Tip height:6.40mm
Trailing angle:35 degree
Superback:2.23mm
Bore size:6.00
bore type:through
Cutback:0.0mm
Overall height:32.30mm
SP Height angle:0.00
Blades height:27.20mm
Splitter height:16.75mm
7+7 blades
Tapered tip angle:11.5 degree
Forward rotation
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
6.Application:
871389-5004S/871389-5005S/877895-5001S/877895-5003S/877895-5004S/877895-5011S
All the compressor wheel have been balanced.
