1. MODEL:TD04 reverse

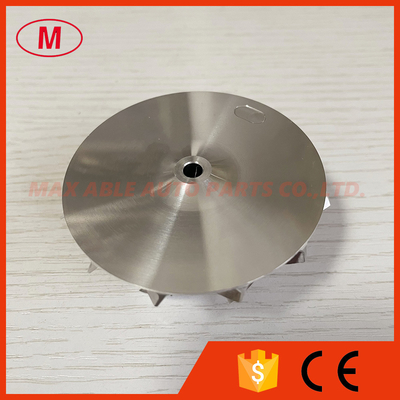

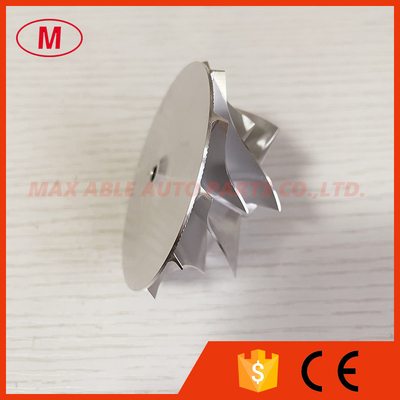

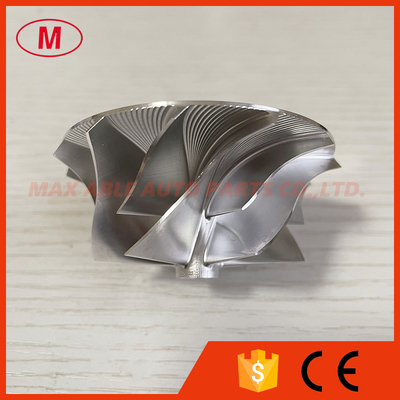

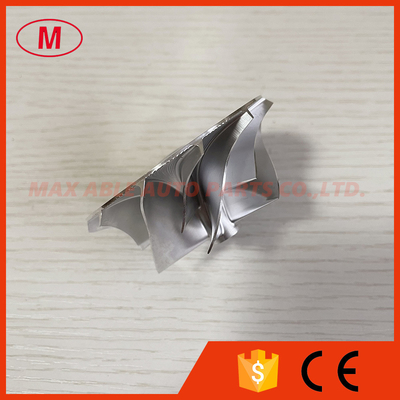

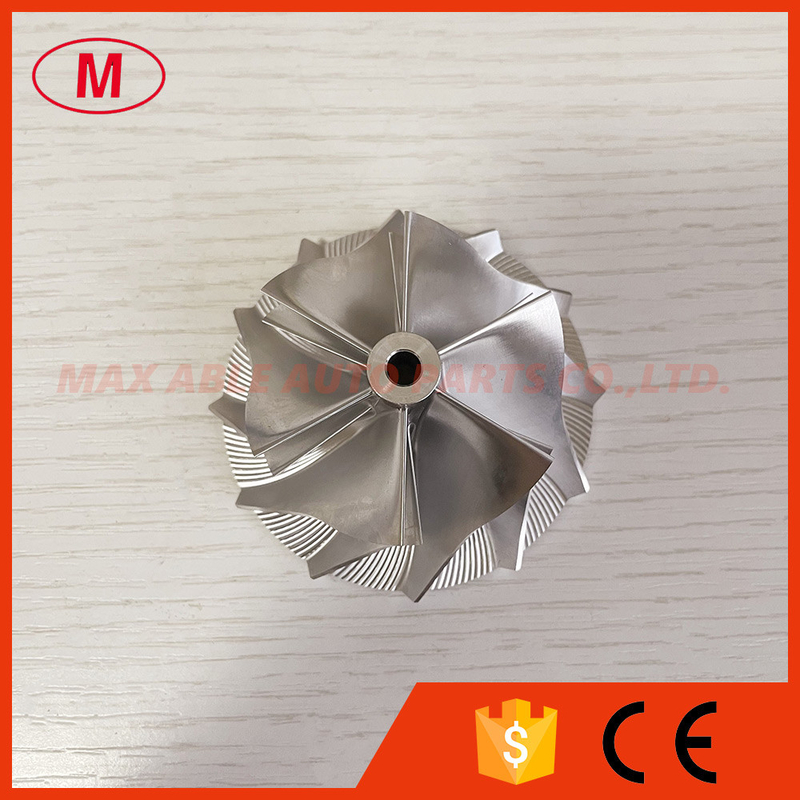

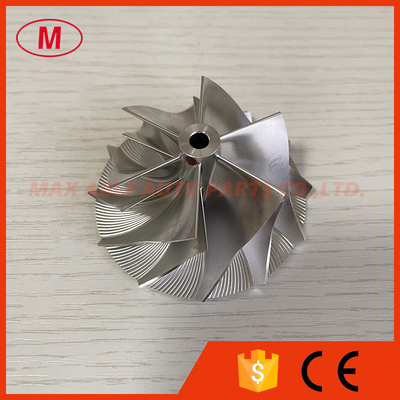

2.TD04 reverse 50.50/66.00mm 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.77mm
inducer:50.50mm
Inducer:66.00mm
Tapered tip exducer:69.57mm
Tip height:4.09mm
Superback:1.53mm
Overall height:32.00mm
bore size :5.00mm
bore type:through
Trailing Angle:60 degree
Cutback:3.0mm
SP height angle:-4.30
Blade height:27.66mm
Splitter height:18.20mm
Tapered tip Angle: 30 degree
It is custom size ,please check carefully before buying
6+6 blades
reverse rotation
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
