Home ProductsBillet compressor wheel

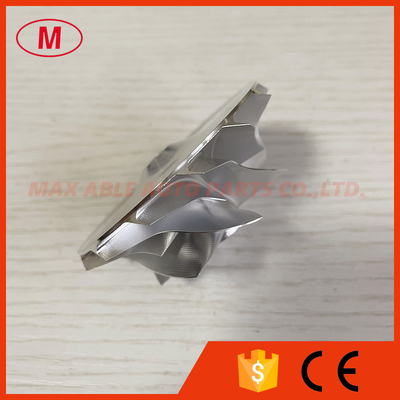

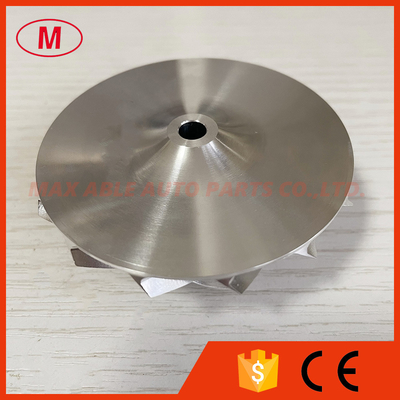

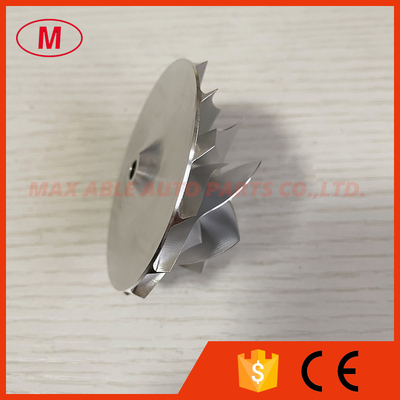

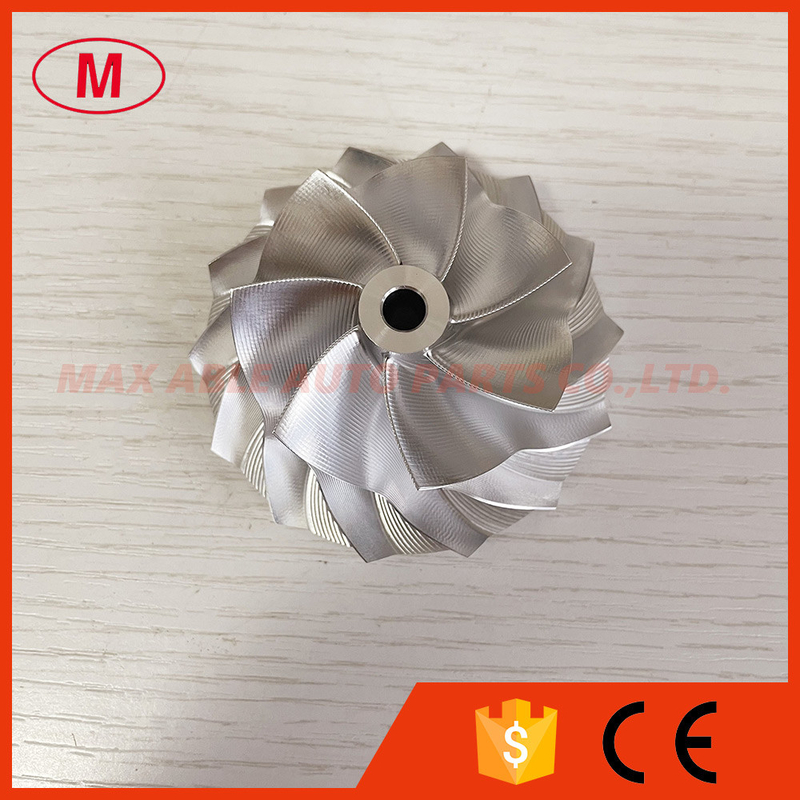

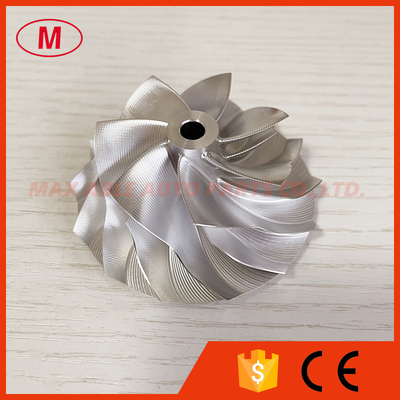

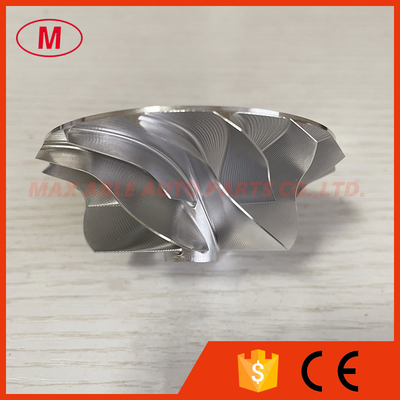

S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel

S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel

    • S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel
    • S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel
    • S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel
    • S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel
    • S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel
    • S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel
    • S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel
  • S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Place of Origin: CHINA
    Brand Name: NO
    Certification: ISO
    Model Number: S100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:S100 FORWARD

    2.S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel

    3.Size:

    Nose diameter:12.75mm

    inducer:50.00mm

    Exduder:68.01mm

    Tapered tip exducer:71.57mm

    Tip height:4.77mm

    Superback:3.50mm

    Overall height:30.00mm

    bore size :6.00mm

    bore type:through

    Trailing Angle:45 degree

    Cutback:0.0mm

    Blades height:23.97mm

    sp Height Angle:-3.10

    Splitter height:14.40mm

    7+7 blades

    forward rotation

    Tapered tip Angle:25.3 degree

    It is custom size ,please check carefully before buying.



    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    We can produce as your requirement.

    All the billet compressor wheels have been balanced

    The more models we also have.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel

    S100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheelS100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheelS100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheelS100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheelS100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheelS100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheelS100 50.00/68.01mm 7+7 blades high performance point milling turbo milling/aluminum 2618/billet compressor wheel
