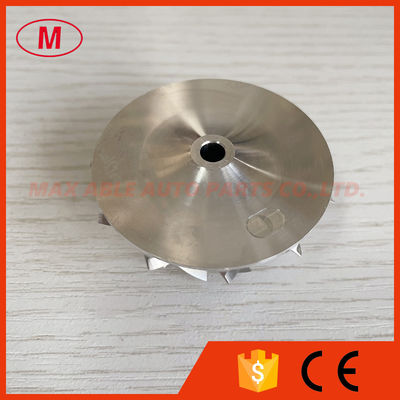

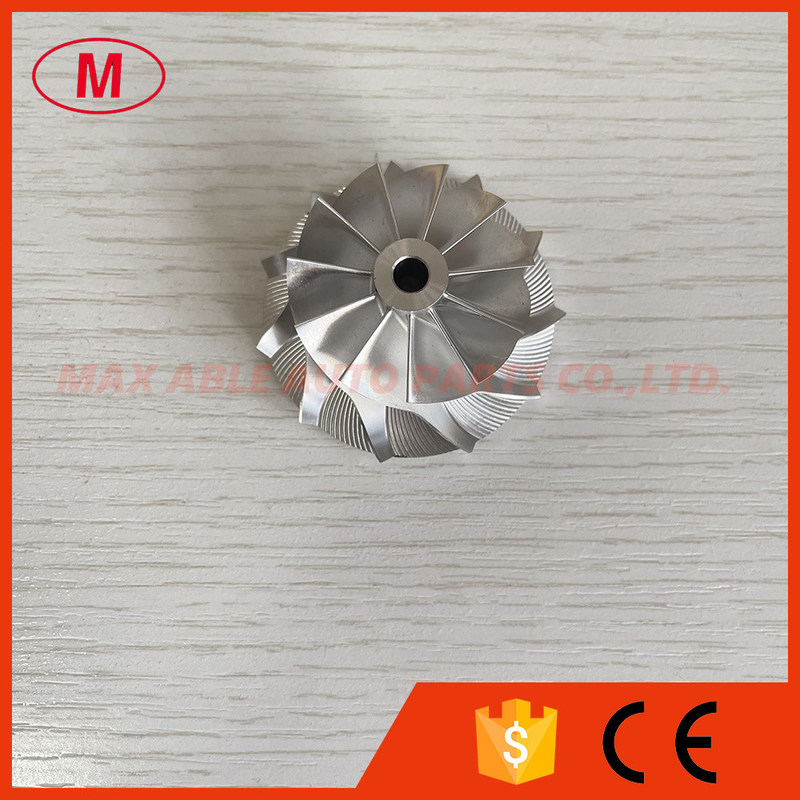

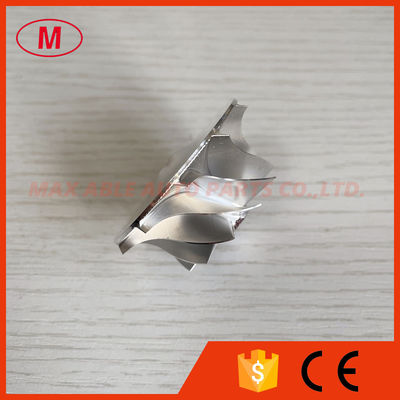

GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002

GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002

    • GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002
    • GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002
    • GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002
    • GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002
    • GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002
    • GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002
  • GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002

    Product Details:

    Place of Origin: CHINA
    Brand Name: NO
    Model Number: GT15-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description

    1. MODEL:GT15-25 forward

    2.GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo billet/milling/aluminum 2618 compressor wheel for 717382-0002/717478-0004/0005/0006/7214021-0003/0004/0005/0006/724495-0002/0003/729853-0001/750431-0004/0006/0007/0009/0010/0012/0015/753556-0002/0006/753847-0002/0006/756047-0002/0004/0005/760698-0002/0003/0004/760774-0002/0003/765993-0004

    3.Size:

    Nose diameter:10.70mm

    inducer:36.39mm

    Exduder:49.00mm

    Tapered tip exducer:52.00mm

    Tip height:3.60mm

    Superback:2.40mm

    Overall height:24.89mm

    bore size :5.08mm

    bore type:through

    Trailing Angle:60 degree

    Cutback:0.0mm

    SP Height angle:0.00

    Blades height:20.50mm

    Splitter height:0.00mm

    Tapered tip Angle:30 degree

    11+0 blades

    Forward rotation

    Fit for OE compressor housing

    Application:



    717382-0002/717478-0004/0005/0006/7214021-0003/0004/0005/0006/724495-0002/0003/729853-0001/750431-0004/0006/0007/0009/0010/0012/0015/753556-0002/0006/753847-0002/0006/756047-0002/0004/0005/760698-0002/0003/0004/760774-0002/0003/765993-0004

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    We can produce as your requirement.



    The more models we also have.

    ALL the billet compressor wheels have been balanced

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002
    GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717382-0002
