| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GTX5533R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model:GTX5533R GENII Forward rotation

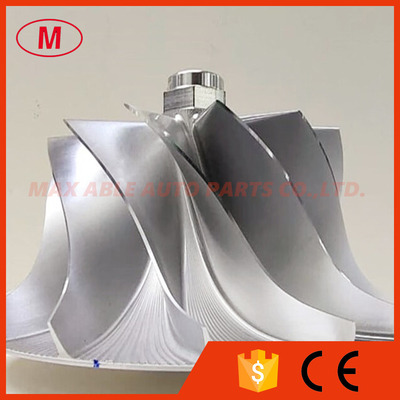

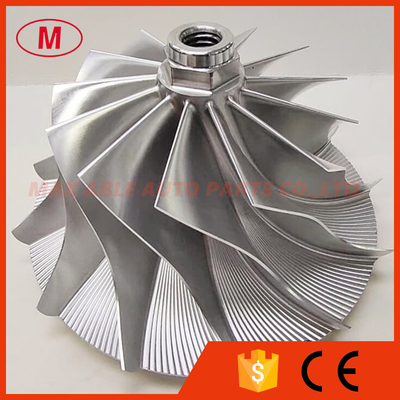

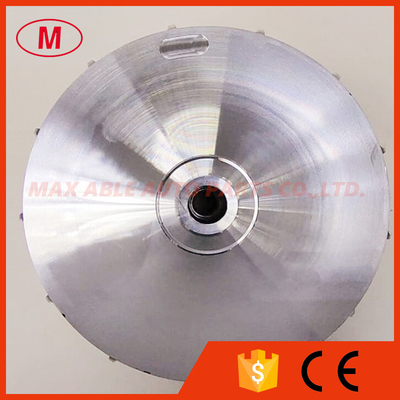

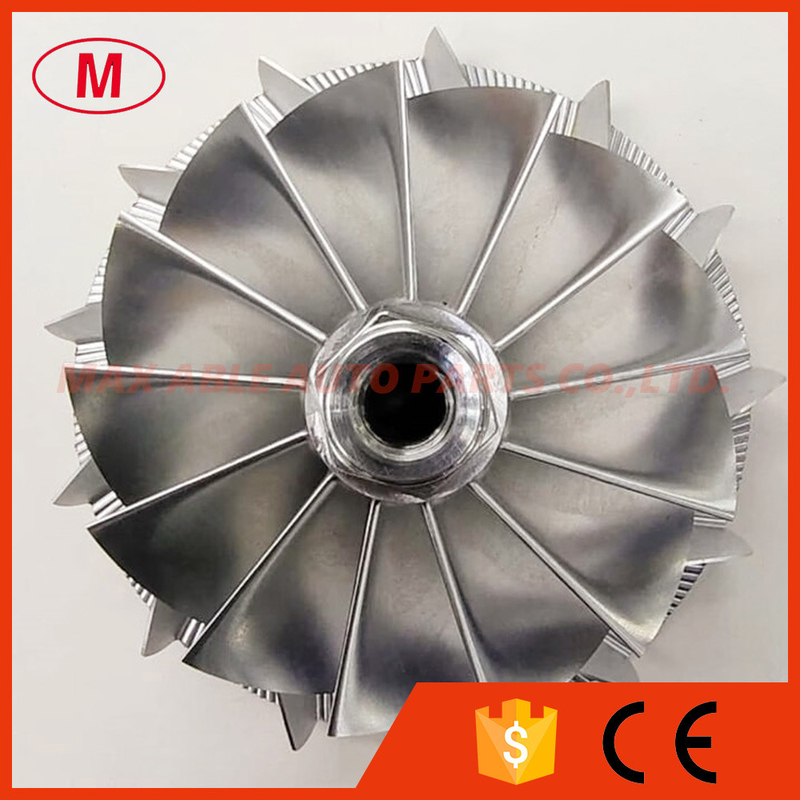

2. GTX5533R GENII 9376-5, 15427 98.40/133.30mm 13+0 blades milling/aluminum 2618/billet compressor wheel for 851285-5005S
3.Size:
Nose diameter:27.00mm
Inducer:98.40mm
Exducer:133.30mm
Tapered tip exducer:142.50mm
Tip height:7.65mm
Superback:8.10mm
Overall height:75.73mm
Bore size:13.49mm
bore type:Threaded-1/2-13G-LHT
Trailing angle:80 DEGREE
Cutback:7.2mm
SP Height angle:0.00
Blades height:53.75mm
Splitter height:0.00mm
13+0 blades
forward rotation
Tapered tip angle:34.7 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price.
5.if you want to know more details ,please send email to me !
