Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 100pcs |
1.Model:TD04HL 13T forward

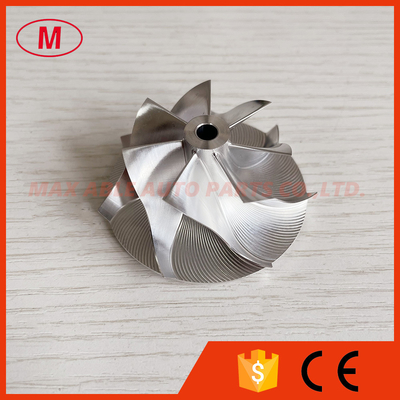

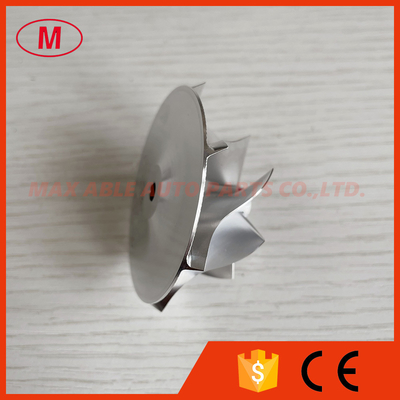

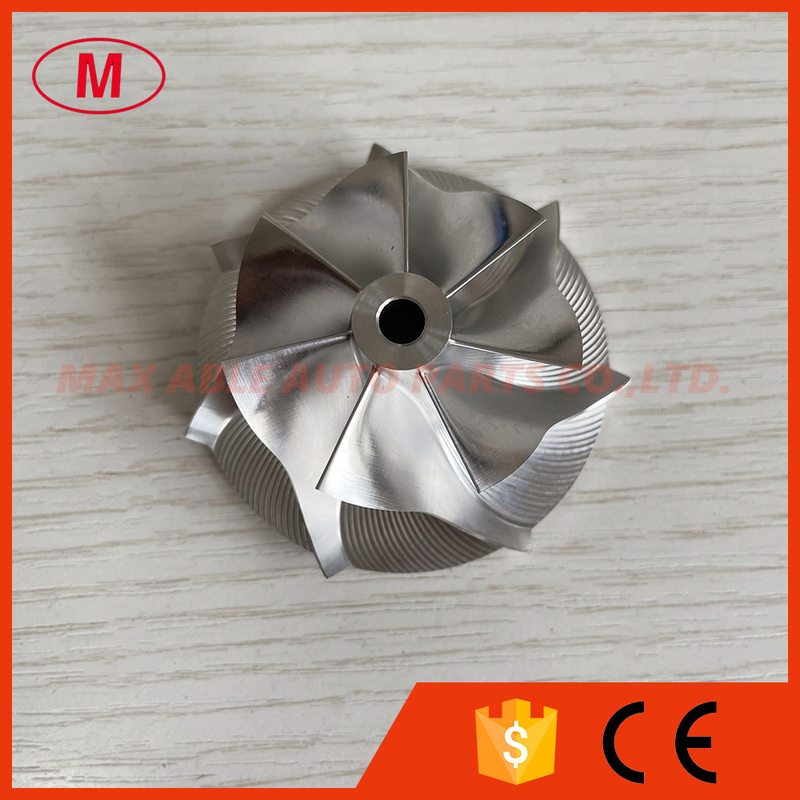

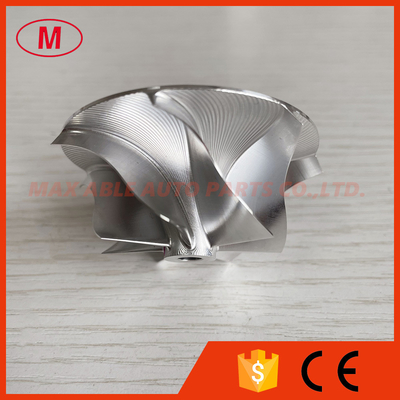

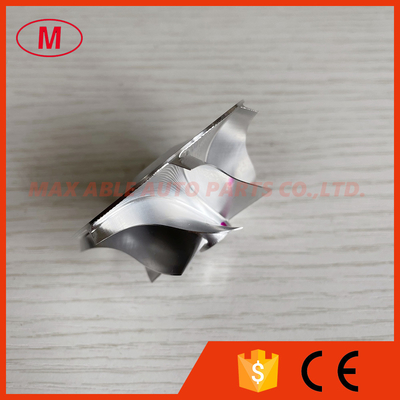

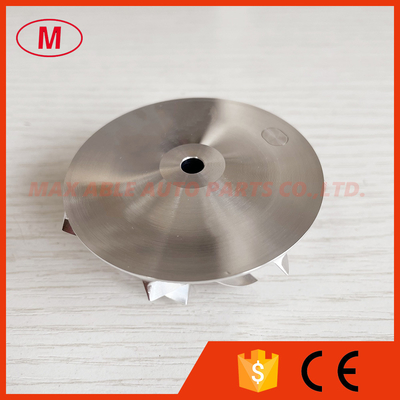

2.TD04HL 13T 40.61/56.02mm 7+0blades high performance turbo milling/aluminum 2618/billet compressor wheel
3.SIZE:
Nose diameter:10.94mm
Inducer:40.61mm
Exducer:56.02mm
Tapered tip exducer:60.13mm
Tip height:4.56mm
Superback:1.83mm
Overall height:26.22mm
bore size :5.00mm
bore type:through
Trailing angle:65 degree
Cutback:0.0mm
Sp height angle:0.00
Splitter height:0.00mm
Blades height:22.38mm
7+0 blades Forward
Tapered tip angle:30 degree
It is for OE compressor housing.
4.Good quality and competitive price
5.All the billet compressor wheels have been balanced.
