| Model Number: | PTE68 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 68.00/92.45mm | Type: | Turbochargers |
|---|
1. MODEL:PTE68 forward

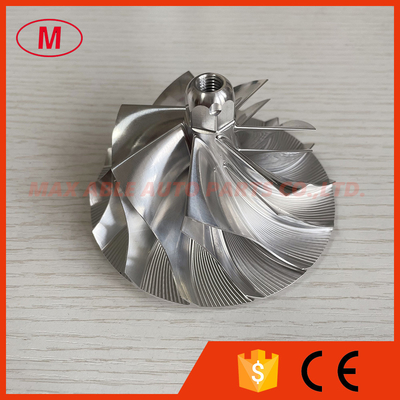

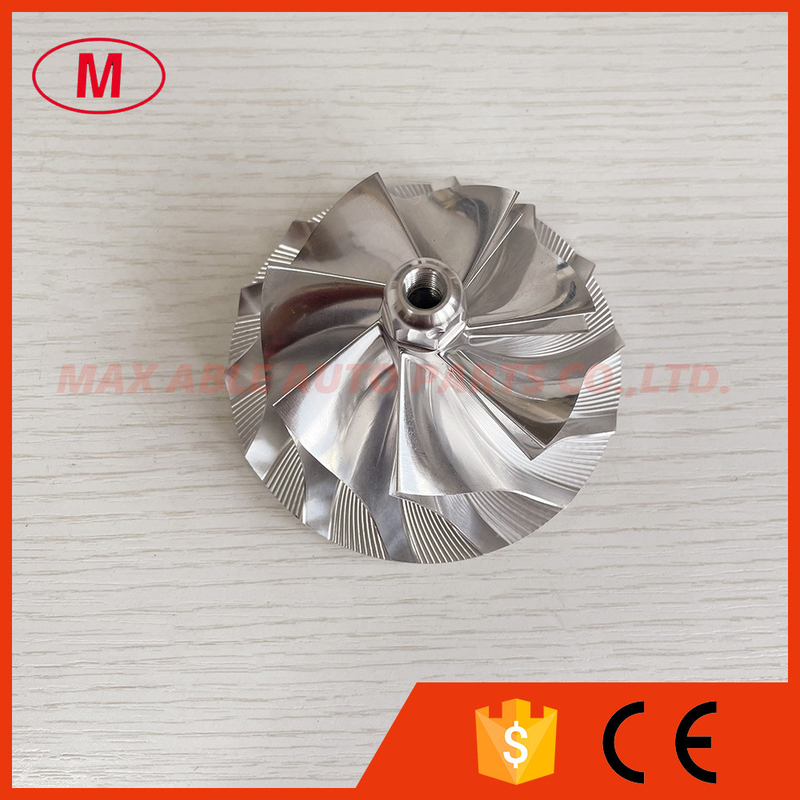

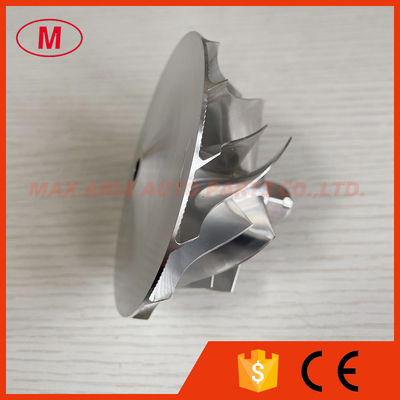

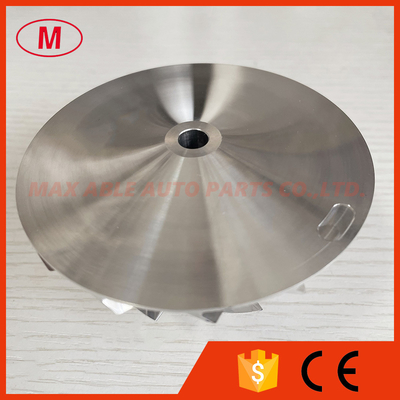

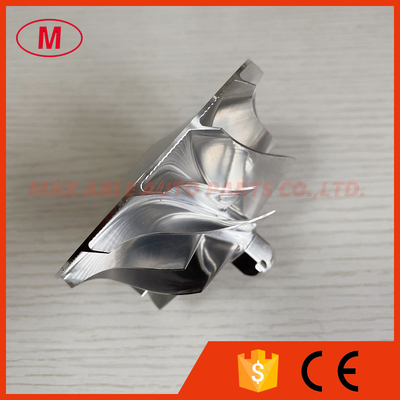

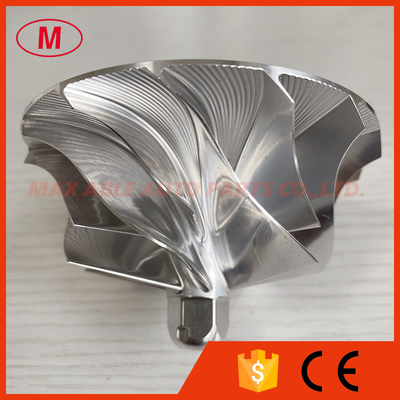

2. PTE68 68.00/92.45mm 7+7 blades A22268-02 REV A 02109 milling/aluminum 2618/billet compressor wheel for PTE6870SP CEA GEN2, PTE6870HP CEA GEN2, PTE6875SP CEA GEN2, PTE6875HP CEA GEN2
3.Size:
Nose diameter:16.20mm
inducer:68.00mm
Exduder:92.45mm
Tip height:6.47mm
Superback:4.83mm
Overall height:57.03mm
bore size:7.94mm
bore type:Threaded 5/16-24G-LHT
Trailing angle:45 degree
Cutback:11.9mm
Blades height:38.00mm
Splitter height:24.95mm
Sp height angle:2.60 degree
7+7 blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the turbine shaft and compressor wheels have balanced .
The more models we also have.
