| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 forward

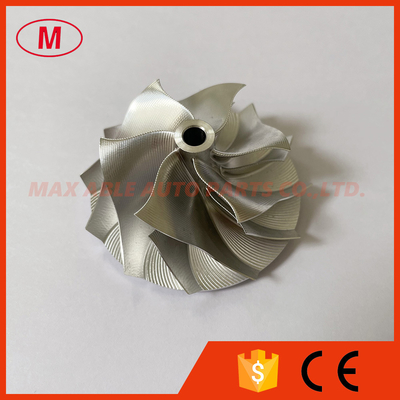

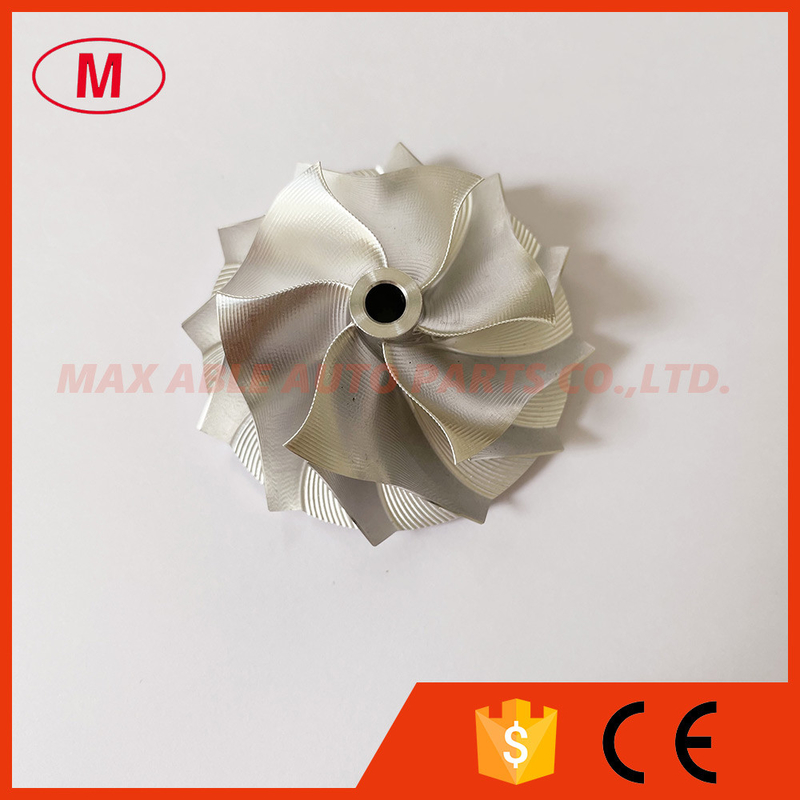

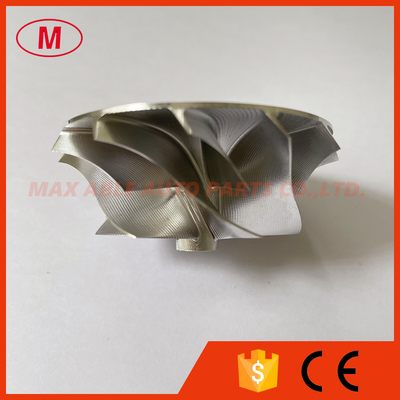

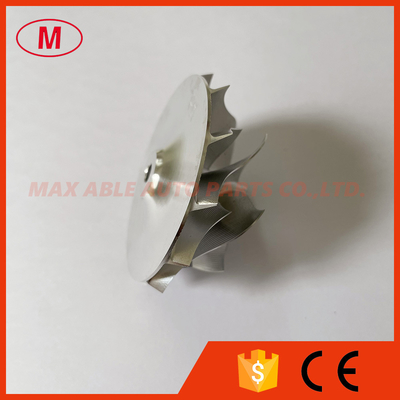

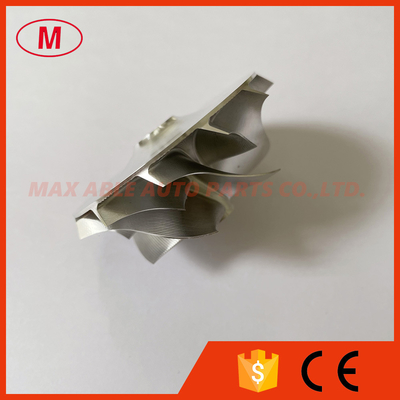

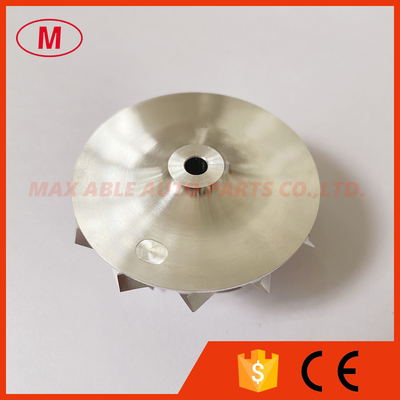

2.GT15-25 43.30/56.03mm 6+6 blades high performance point milling snake curve billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.08mm
inducer:43.30mm
Exduder:56.03mm
Tapered tip exducer:60.40mm
Tip height:5.29mm
Superback:3.68mm
Overall height:28.00mm
bore size :5.08mm
bore type:through
Trailing Angle:60 degree
Cutback:3.0mm
SP height angle:-7.00
Blade height:20.90mm
Splitter height:13.00mm
6+6 blades
Tapered tip Angle:27 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
