Home ProductsBillet compressor wheel

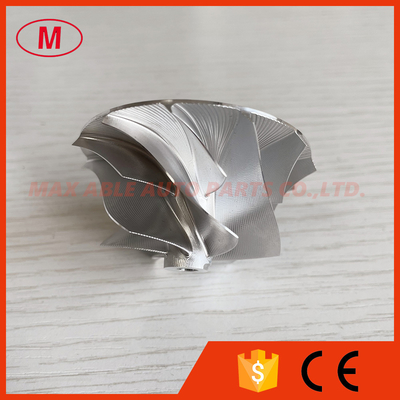

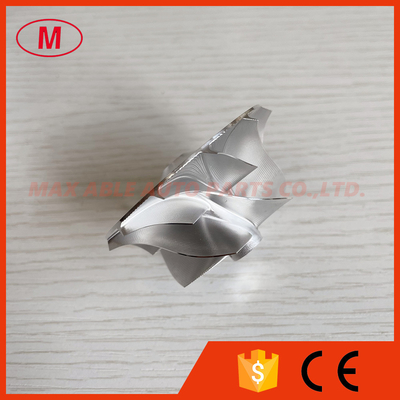

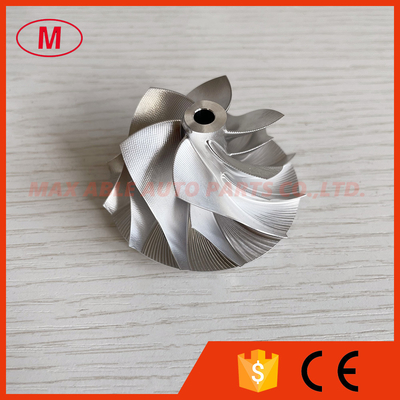

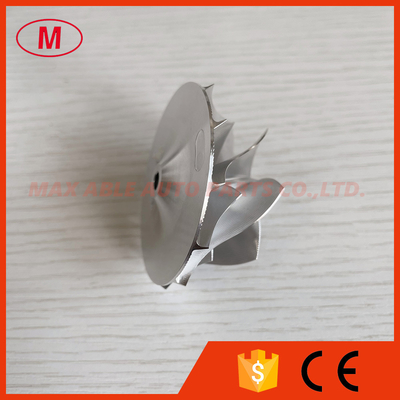

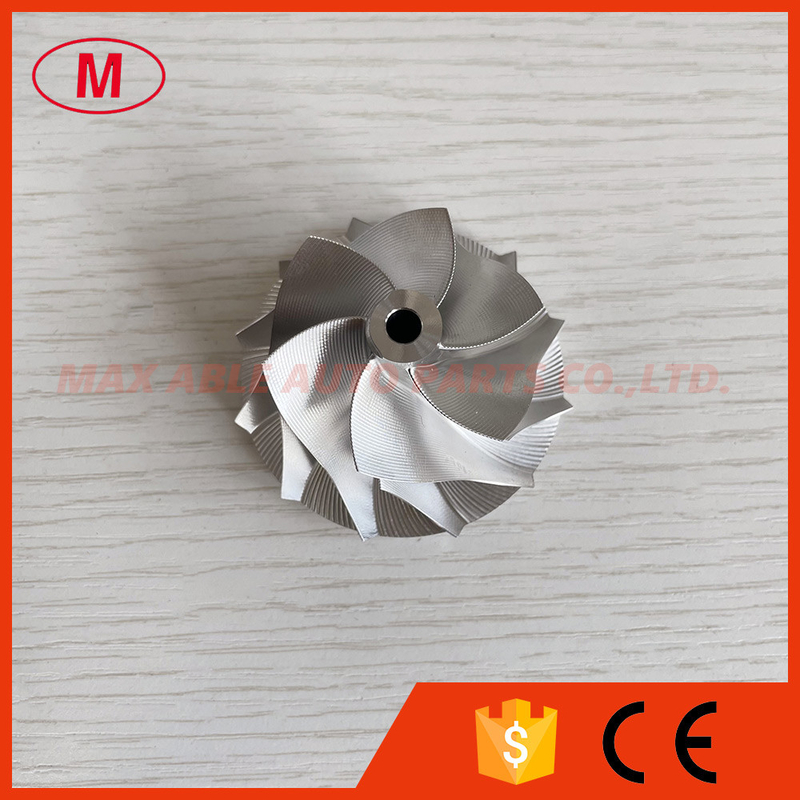

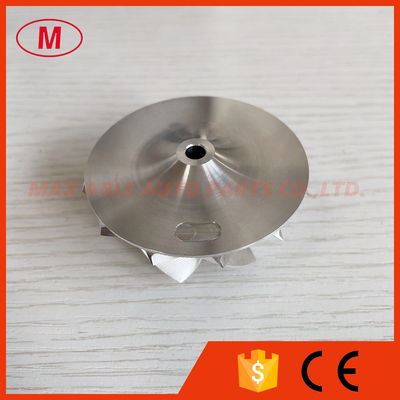

RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel

RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel

    • RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel
    • RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel
    • RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel
    • RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel
    • RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel
    • RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel
    • RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Model Number: RHV4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1.Model:RHV4 Forward

    2.RHV4 42.80/56.50mm 6+6 blades high performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel

    3.Size:

    Nose diamter:11.00mm

    inducer:42.80mm

    Exduder:56.50mm

    Tapered tip exducer:59.53mm

    Tip height:3.63mm

    Superback:3.81mm

    bore size :5.10mm

    bore type:through

    Overall height:32.50mm

    Trailing Angle:60 degree

    Cutback:6.0

    SP height angle:0.00

    Blades height:25.70mm

    Splitter height:12.20mm

    It is custom size ,please check carefully before buying

    6+6blades

    Forward rotation

    Tapered tip angle:30 degree

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    We can produce as your requirement.

    THE MINIMUN ORDER IS 5PCS

    The more models we also have.

    ALL The billet compressor wheels have been balanced.

    Skype: maxabledieselparts
    Wechat/whatsapp:+ 86-18018657719
    RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel
    RHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheelRHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheelRHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheelRHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheelRHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheelRHV4 42.80/56.50mm 6+6 blades performance point milling air curve turbo milling/aluminum 2618/billet compressor wheel
