Model Number: | RHF4H |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
Size: | 35.30/47.00mm | Type: | Turbochargers |
---|
1. MODEL:RHF4H forward

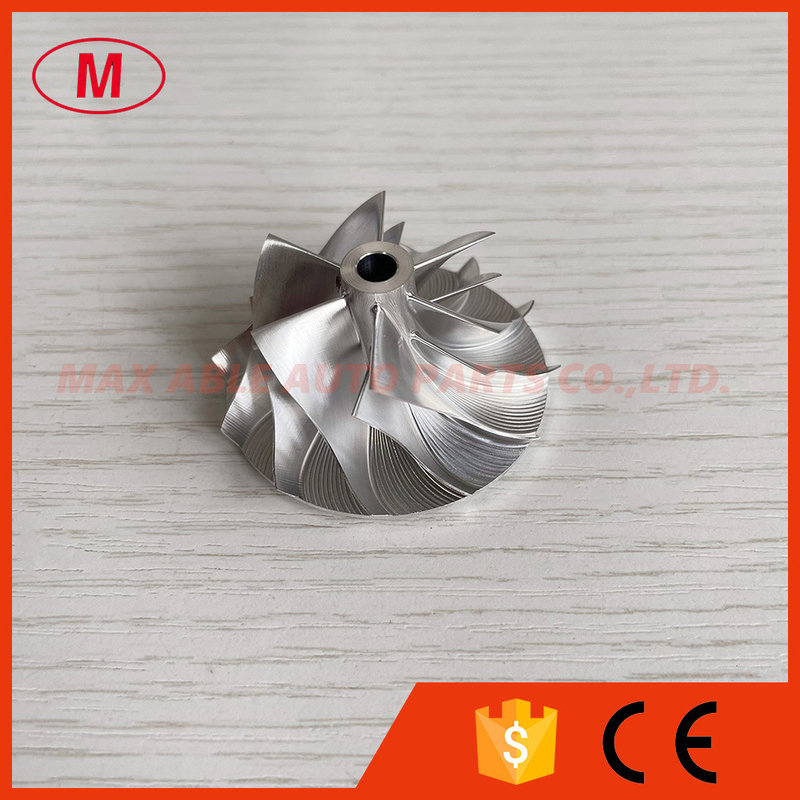

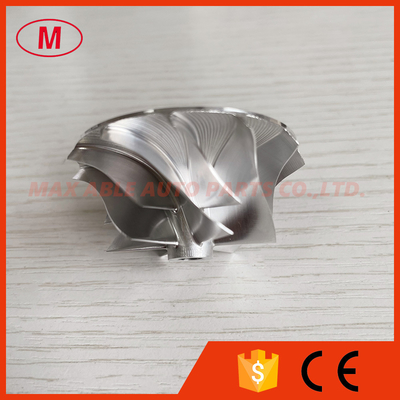

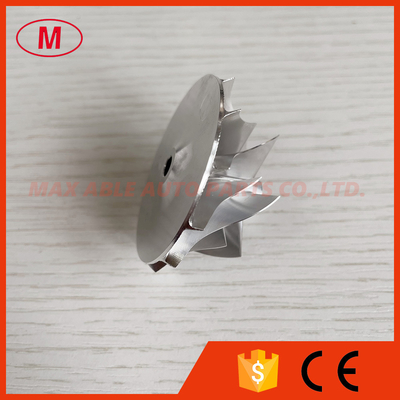

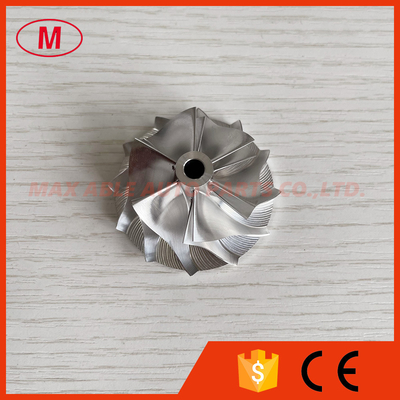

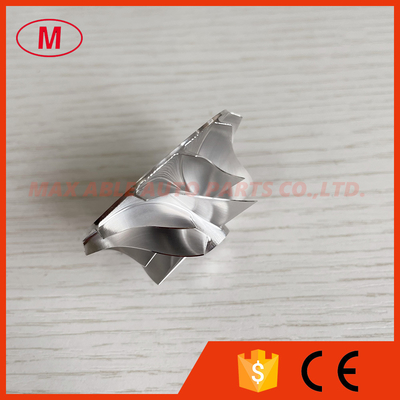

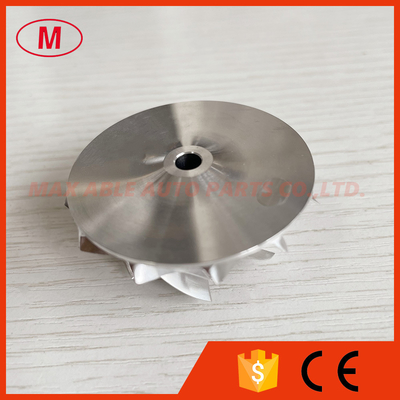

2. RHF4H 35.30/47.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for VIBR/VN3
3.Size:
Nose diameter:9.36mm
inducer:35.30mm
exducer:47.00mm
Tapered tip exducer:50.35mm
Tip height:3.90mm
Superback:1.40mm
Overall height:24.20mm
Bore size:5.10mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
Splitter height:14.80mm
Sp height angle:-7.00
Blade height:20.30mm
6+6 BLADES
Forward rotation
It is for OE compressor housing .
Tapered tip angle:30 degree
4.High quality and competitive price.
5.Any questions please send email to me.we have other many sizes.
All the compressor wheel have been balanced.
