| Model Number: | B03G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 56.50/76.13mm | Type: | Turbochargers |
|---|
1. MODEL:B03G forward

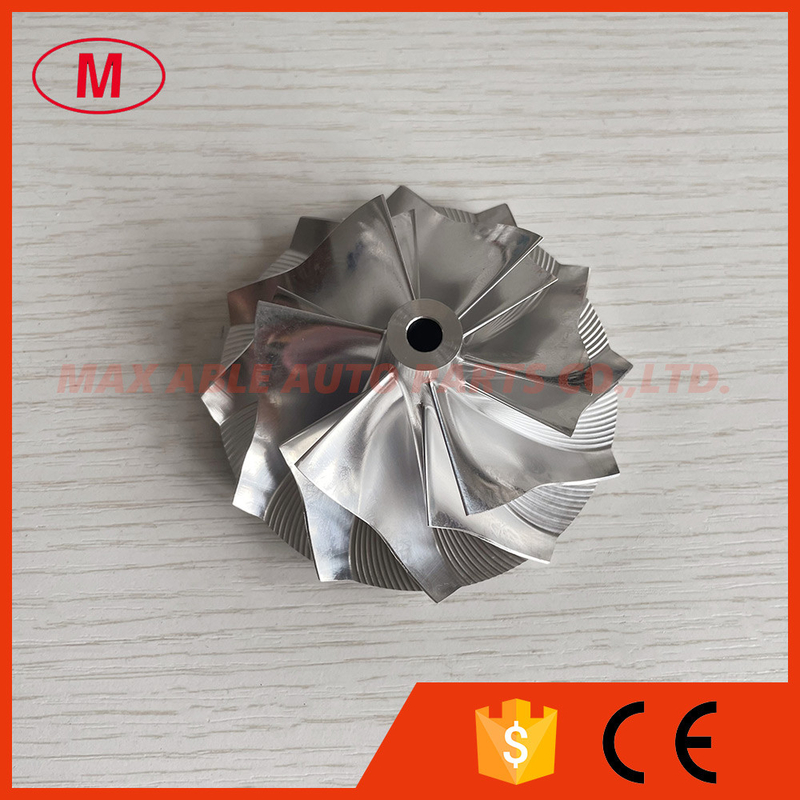

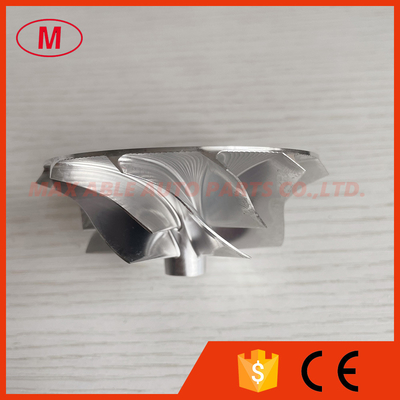

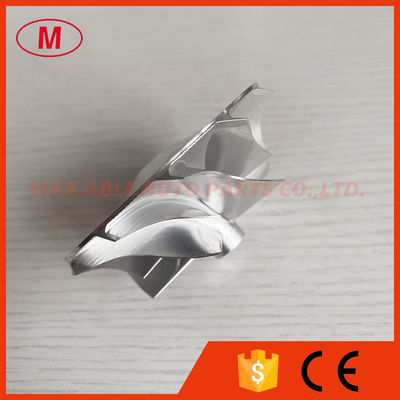

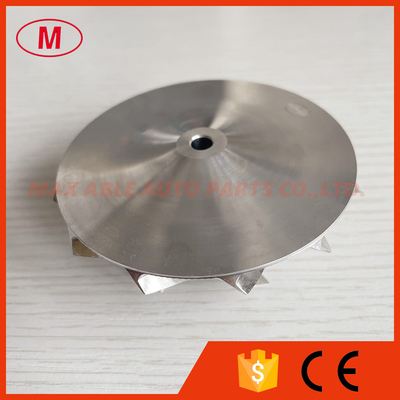

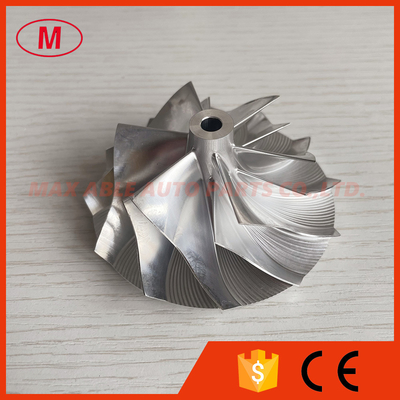

2. B03G forward 56.50/76.13mm 6+6 blades slim nose Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.90mm
Inducer:56.50mm
exducer:76.13mm
Tapered tip exducer:80.76mm
Tip height:5.01mm
Superback:3.90mm
Overall height:35.50mm
Bore size:5.61mm
bore type:through
Trailing angle:45 degree
Cutback:3.0
SP Height angle:0.00
BladeS height:26.18mm
Splitter height:18.20mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
We also have many other sizes,please don't hestitate to contact me.
All the compressor wheel have been balanced.
