| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 57.69/78.00mm | Type: | Turbochargers |
|---|
1. MODEL:TD05H forward

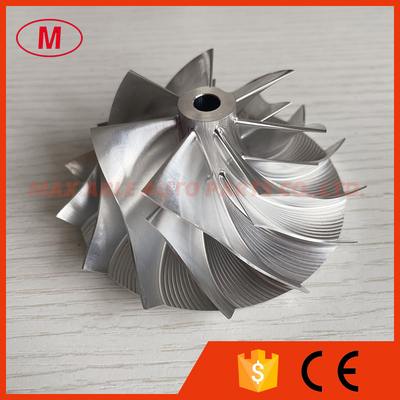

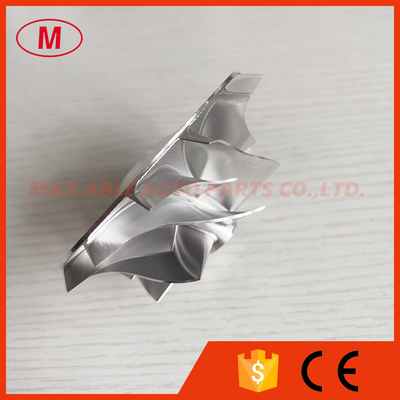

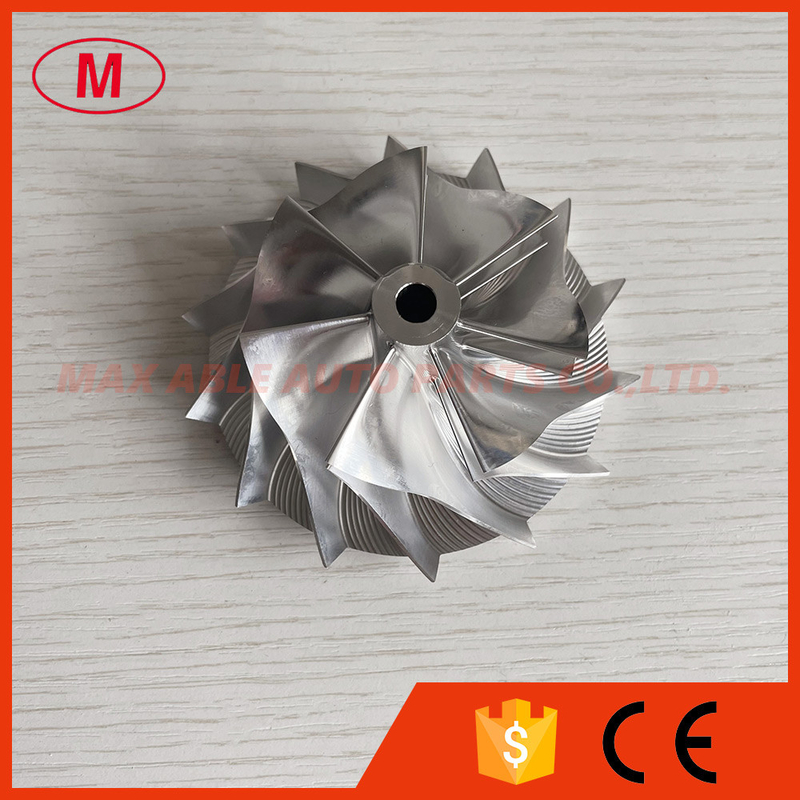

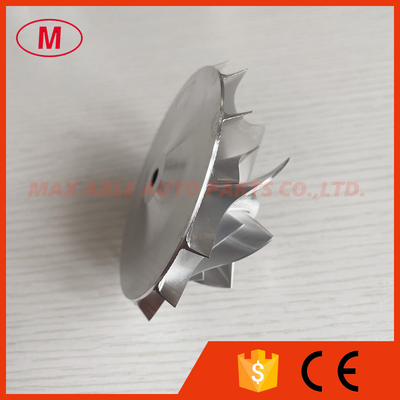

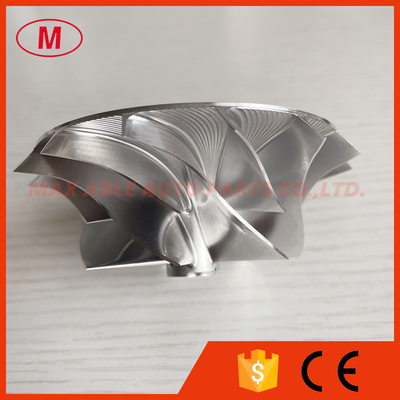

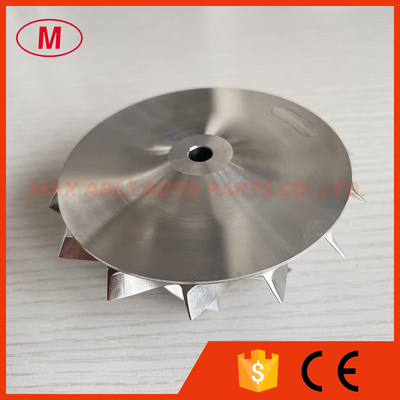

2. TD05H forward 57.69/78.00mm 7+7 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:14.20mm
inducer:57.69mm
exducer:78.00mm
tapered tip exducer:87.72mm
tip height:6.79mm
super back:2.90mm
Overall height:35.57mm
bore size :6.50mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
blades height:29.97mm
7+7 blades
forward rotation
Tapered tip angle:40 degree
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced
We can produce as your requirement.
