| Model Number: | GTX2860R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 45.70/60.13mm | Type: | Turbochargers |
|---|
1. MODEL:GTX2860R Forward

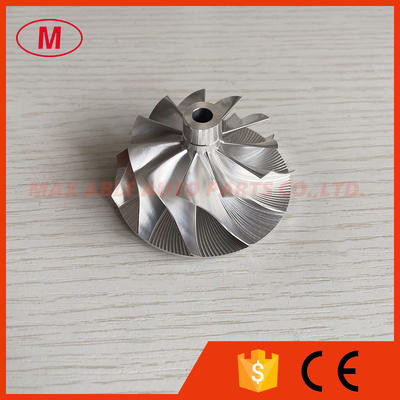

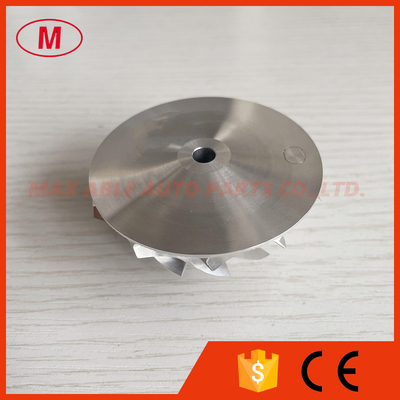

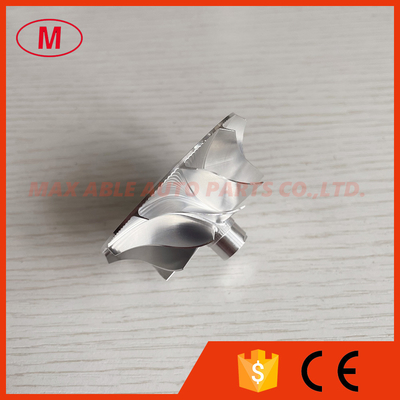

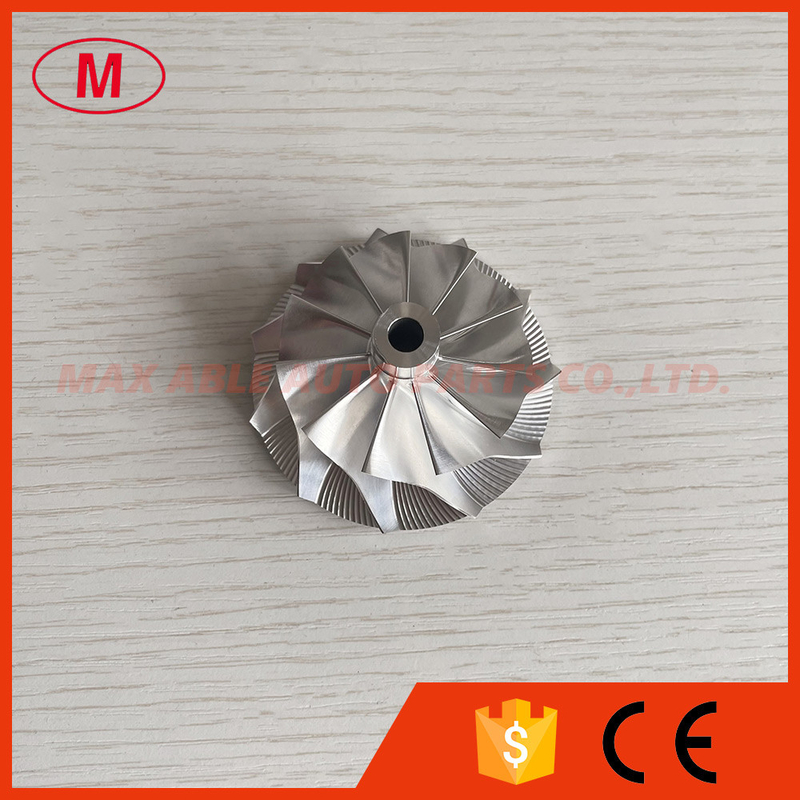

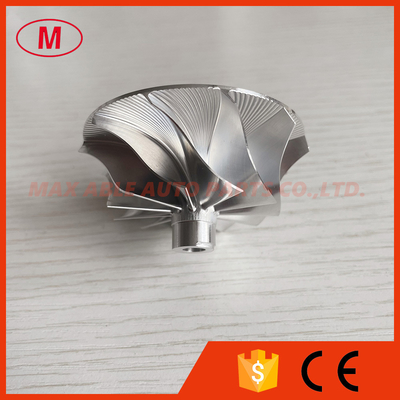

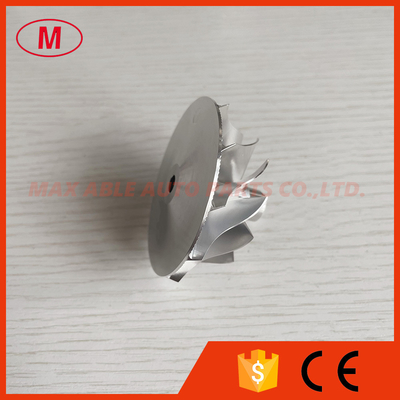

2.GTX2860R 813711-0002 45.70/60.13mm 11+0 Turbo Billet/milling/aluminum 2618 compressor wheel for 816364-5001 racing
3.Size:
Nose diameter:12.06mm
inducer:45.70mm
Exduder:60.13mm
Tapered tip exducer:62.45mm
Tip height:4.58mm
Superback:2.30mm
bore size :6.00mm
bore type:through
Overall height:32.70mm
Trailing angle:55 degree
Blades height:20.90mm
Cutback:0.0
SP Height angle:0.00
Splitter height:0.00mm
11+0 Blades
Forward rotation
Tapered tip angle:18 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the compressor wheels have been balanced.
The more models we also have.
