| Model Number: | CT10 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 40.60/64.00mm | Type: | Turbochargers |
|---|
1. MODEL:CT10 forward

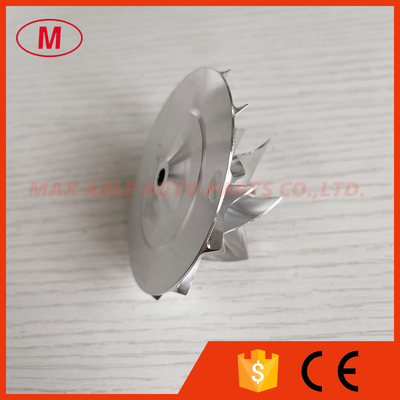

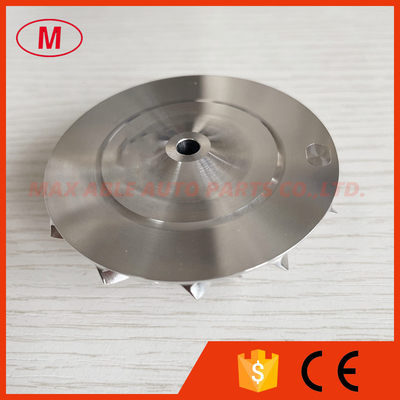

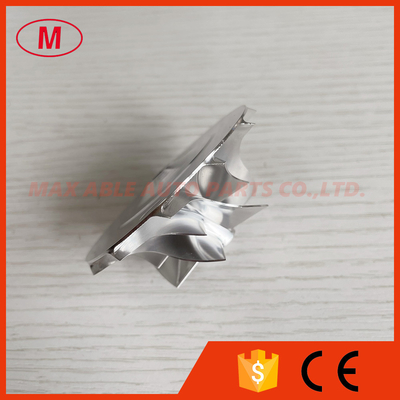

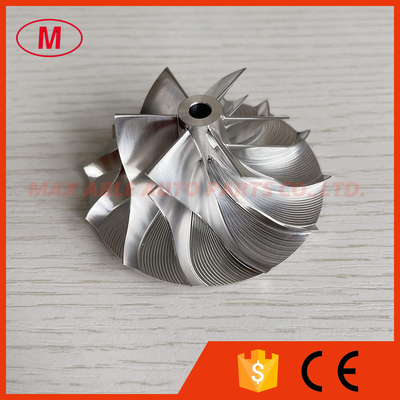

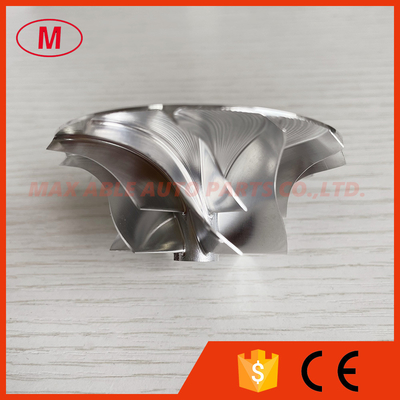

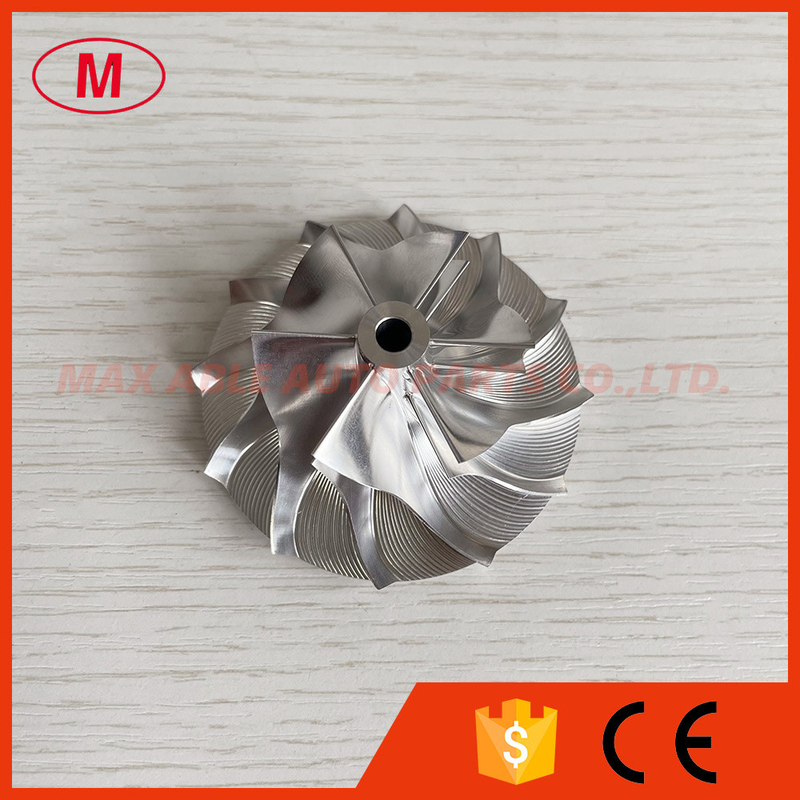

2. CT10 40.60/64.00mm Upgrade 17201-0L020 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel .
3.Size:
Nose diameter:10.27mm
inducer:40.60mm
Exducer:64.00mm
Tapered tip exducer:67.17mm
Tip height:3.74mm
Superback:2.65mm
Overall height:28.60mm
Bore size:5.10mm
bore type:through
Trailing angle:50 degree
Cutback:0.0
Blades height:24.17mm
Splitter height:15.85mm
Sp height angle:-1.60
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me,we have many size.
All the compressor wheel have been balanced.
