| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | t04b |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

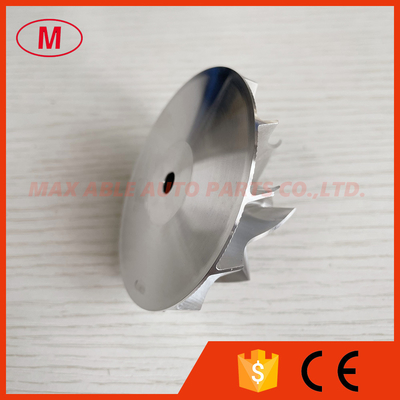

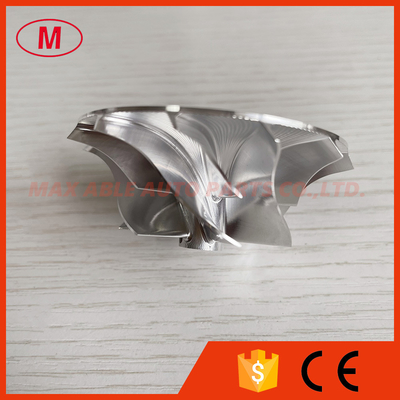

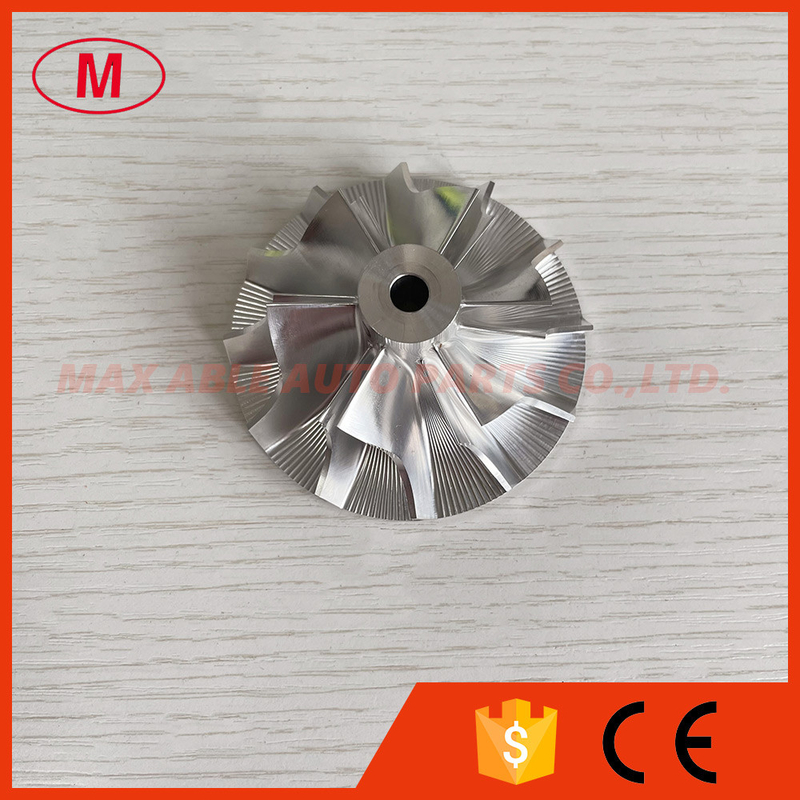

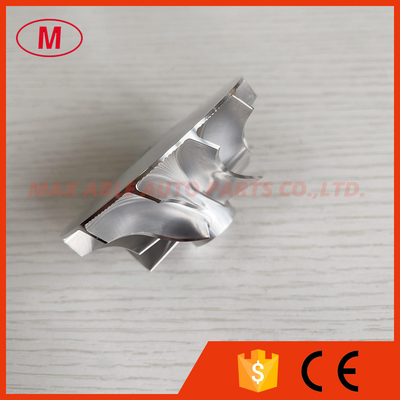

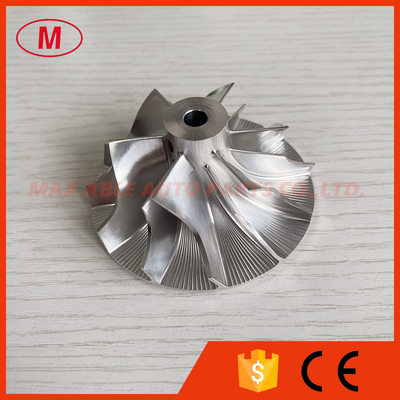

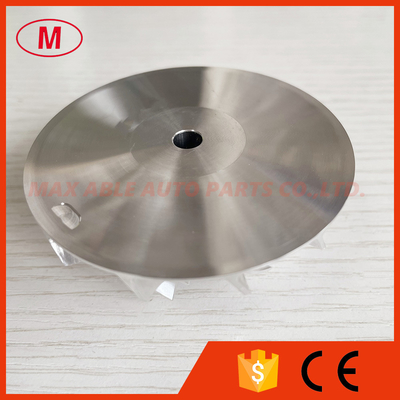

1.T04B 48.35/70.01mm 6+6 blades Turbo Aluminum 2618 /milling/billet compressor wheel
2.Size:
Nose Diameter:16.90mm
Inducer:48.35mm
Exducer:70.01mm
Tip height:7.54mm
Superback:1.60mm
Overall height:32.00mm
Bore size:6.35mm
Trailing angle:60
Cutback:1.0
Blades height:25.00mm
Splitter height:18.15mm
Sp height angle:9.50
6+6 blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
3.If you want more details, please send email to me.We can do all we can to satisfy your needs.
4.High quality and competitive price and good service.
5.We can produce as your requirement.
