1. MODEL:supercharger forward

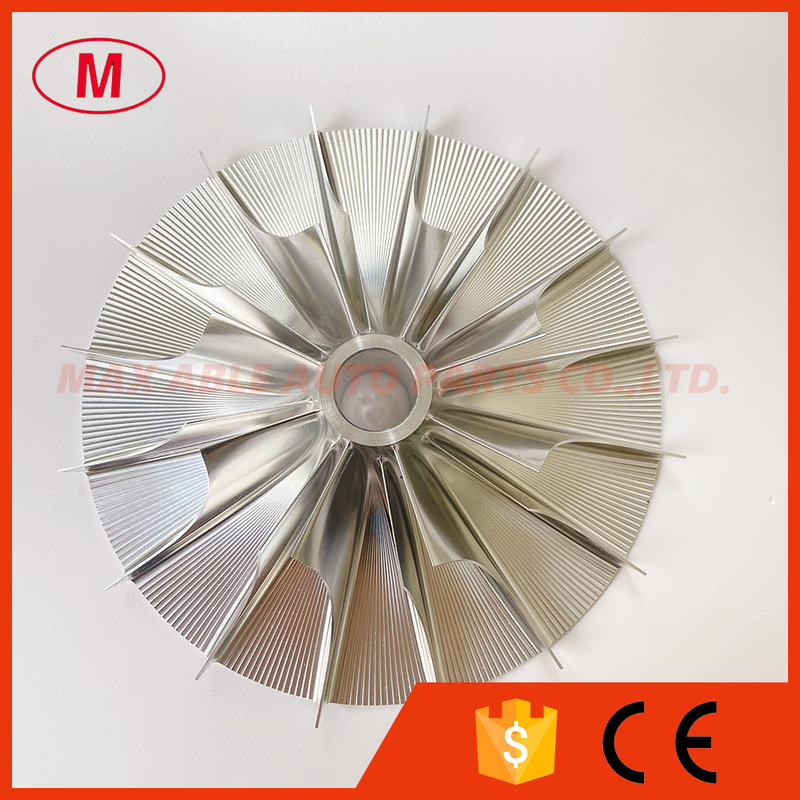

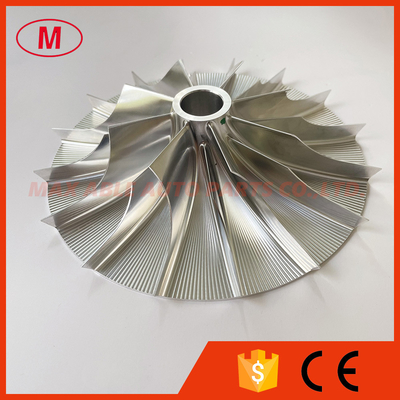

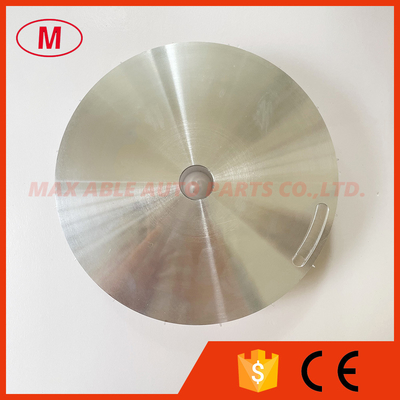

2.supercharger 85.67/157.50mm 8+8 blades milling/aluminum 2618/billet compressor wheel for PISC
3.Size:
Nose diameter:26.23mm
Inducer:85.67mm
Exducer:157.50mm
Tapered tip exducer:166.67mm
Tip height:9.44mm
Superback:0.00mm
Bore size:19.00mm
bore type:through
Overall height:36.10mm
Trailing Angle:90 degree
Cutback:0.0
Blades height:33.65mm
Splitter height:23.15mm
Sp height angle:3.50
8+8 blades
Forward rotation
Tapered tip Angle:30 degree
It is custom size ,please check carefully befoe buying.
4.High quality and competitive price.
