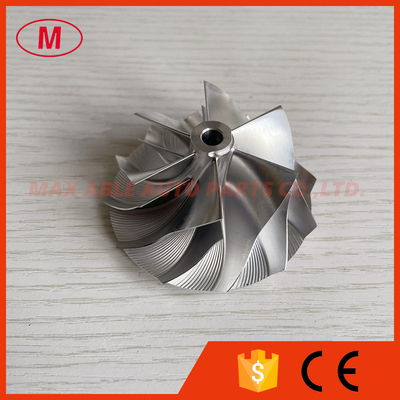

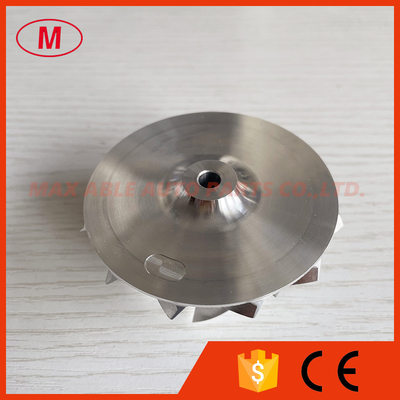

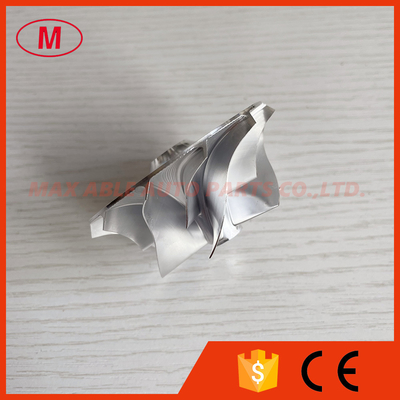

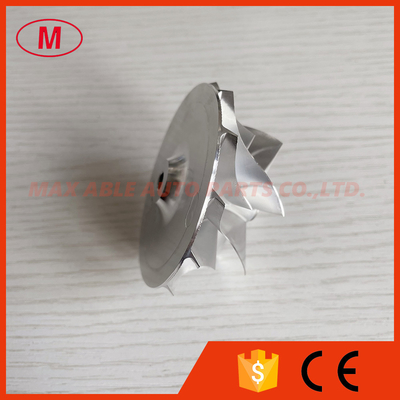

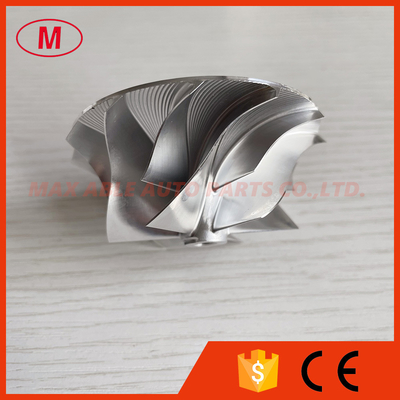

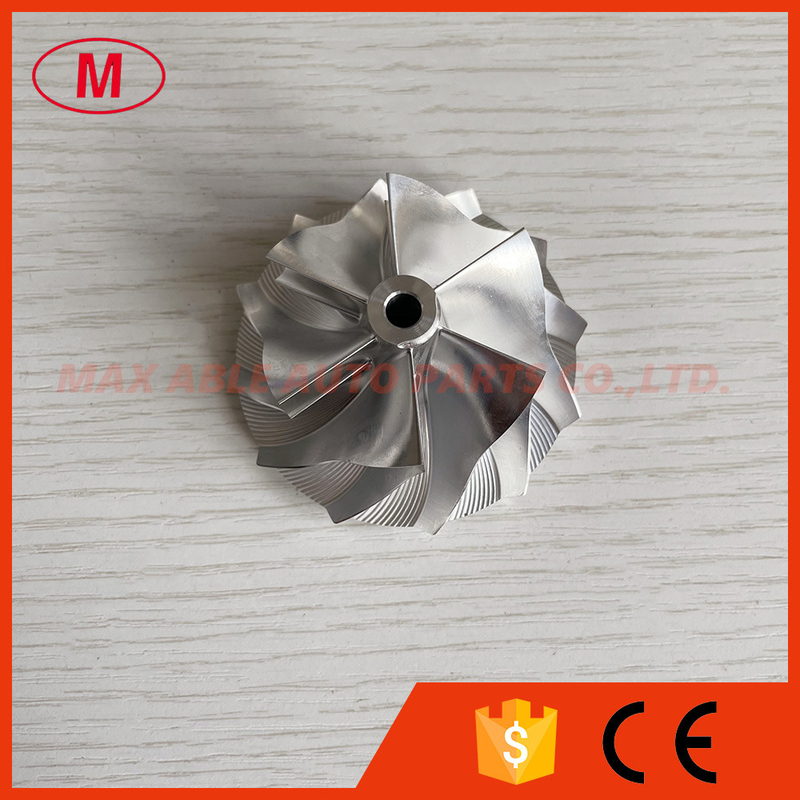

B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheel

B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheel

    • B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheel
    • B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheel
    • B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheel
    • B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheel
    • B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheel
    • B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheel
    • B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: B03G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description

    1. MODEL:B03G reverse
    2.B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:11.50mm
    Inducer:48.30mm
    exducer:64.00mm
    Tapered tip exducer:68.00mm
    Tip height:4.61mm
    Superback:4.00mm
    bore size :5.61mm
    bore type:through
    Overall height:33.00mm
    Cutback:0.00
    Trailing Angle:55 degree
    Sp height angle:0.00
    Splitter height:17.00mm
    Blade height:26.90mm
    6+6 blades reverse rotation
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:29 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    B03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheelB03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheelB03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheelB03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheelB03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheelB03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheelB03G reverse 6+6 blades 48.30/64.00mm High performance Turbo milling/aluminum 2618/billet compressor wheel
