Model Number: | k04 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:K04 forward

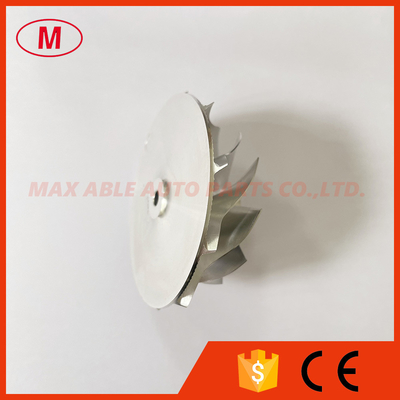

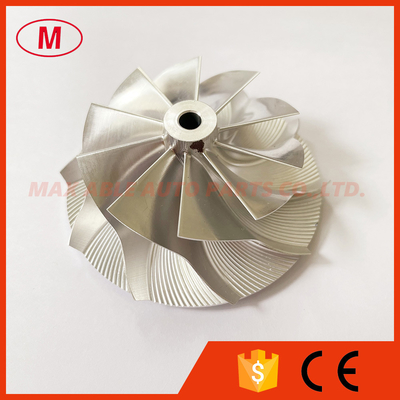

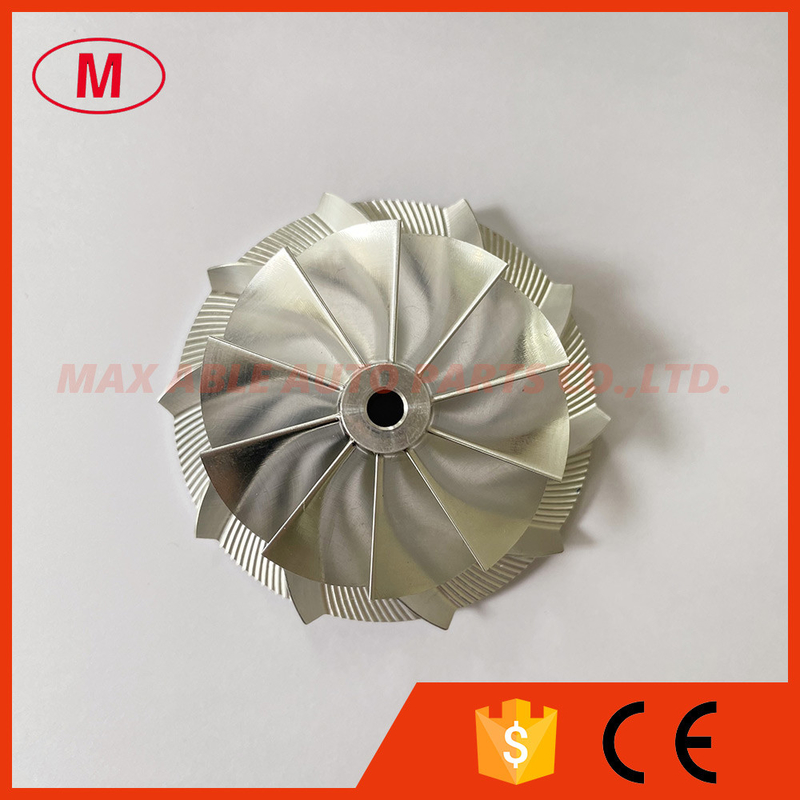

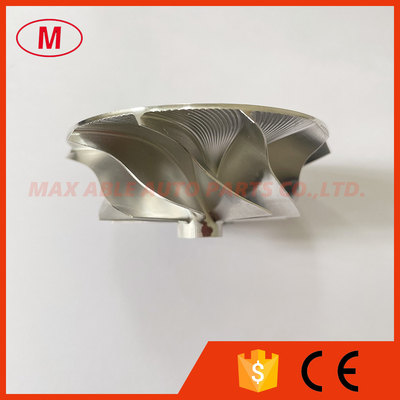

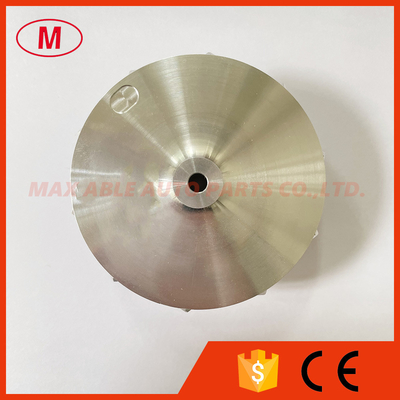

2.K04 48.00/61.98mm 10+0 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diamter:10.95mm
inducer:48.00mm
Exduder:61.98mm
Tapered tip exducer:65.56mm
Tip height:3.76mm
Superback:1.80mm
Overall height:25.70mm
bore size :4.61mm
bore type:through
Trailing angle:60 degree
Cutback:2.0
Sp height angle:.0.00
Splitter height:0.00mm
Blades height:20.00mm
10+0 blades
Forward rotation
Tapred tip angle:33 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
Skype: maxabledieselparts
Wechat/Whatsapp:+86-18018657719
