| Model Number: | KP39 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 34.10/46.00mm | Type: | Turbochargers |
|---|
1. MODEL:KP39 FORWARD

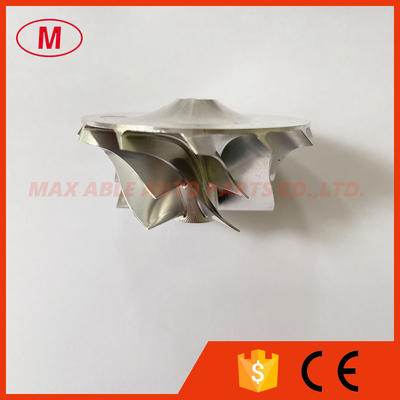

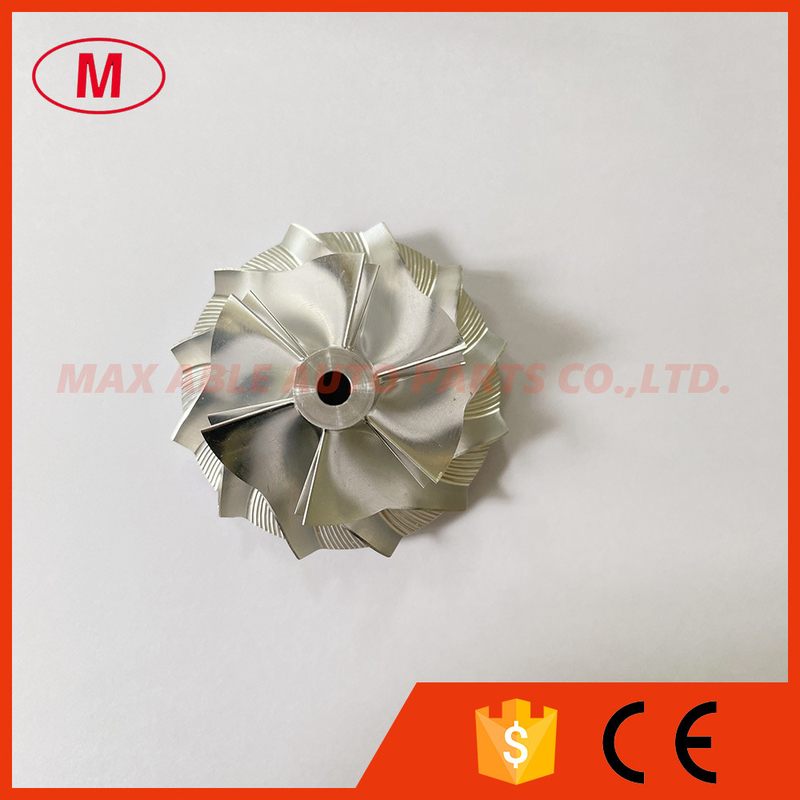

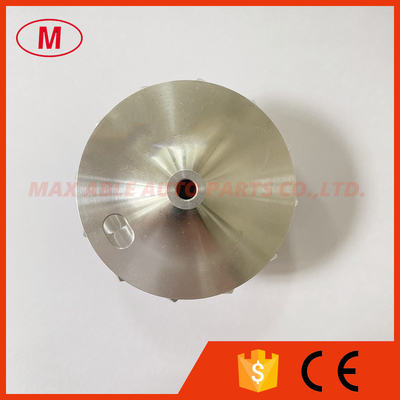

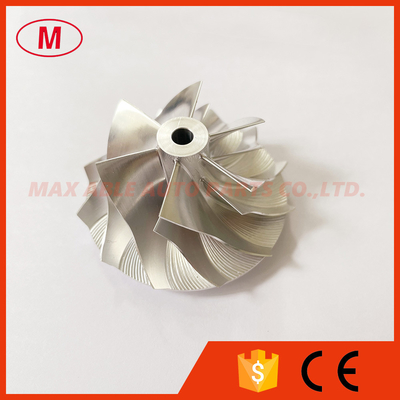

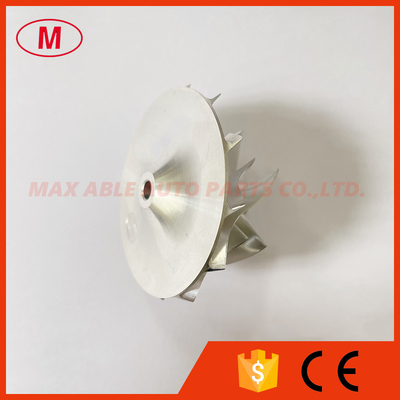

2.KP39 6+6 blades 34.10/46.00mm high performance turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:9.96mm
inducer:34.10mm
Exduder:46.00mm
Tapered tip exducer:49.16mm
Tip height:3.74mm
Superback:3.90mm
Overall height:25.20mm
bore size :4.10mm
bore type:through
Trailing Angle:55 degree
Cutback:0.0
Blades height:19.64mm
Splitter height:13.45mm
Sp height angle:-3.50
Tapered tip Angle:30 degree
6+6 blades
forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
