| Model Number: | S300 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 66.10/92.61mm | Type: | Turbochargers |
|---|
1. MODEL:S300 forward rotation

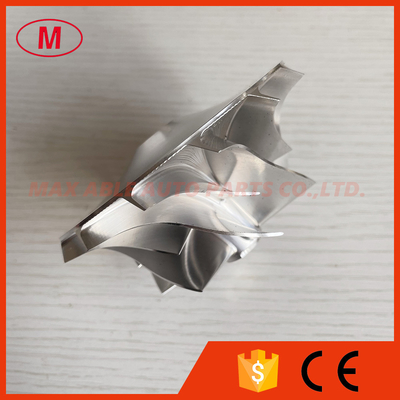

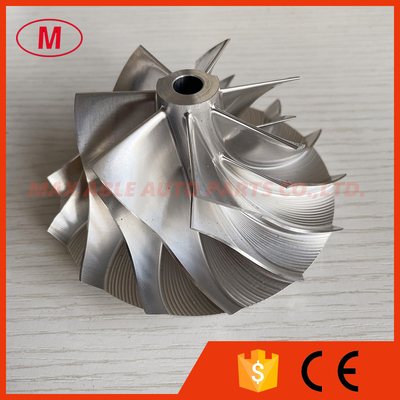

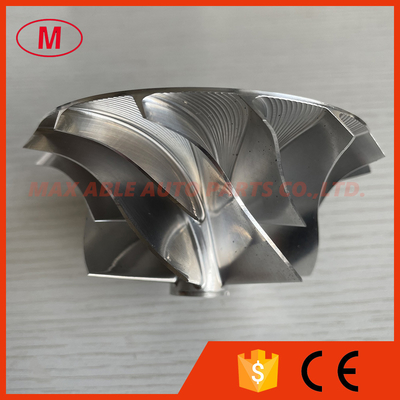

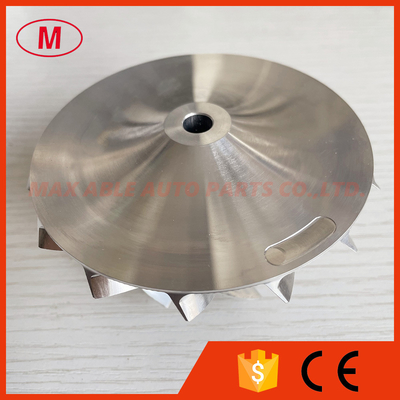

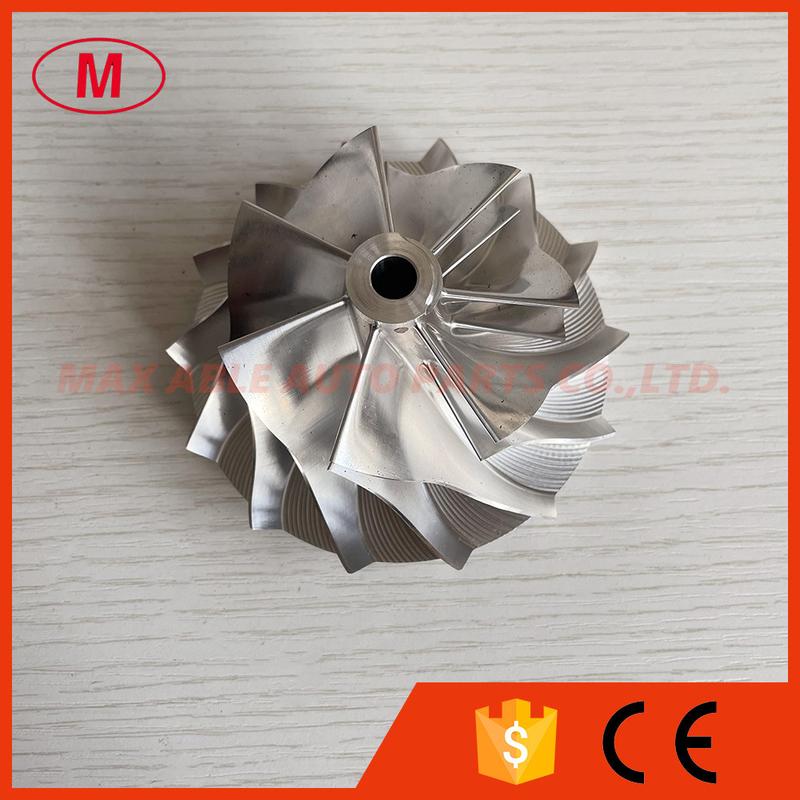

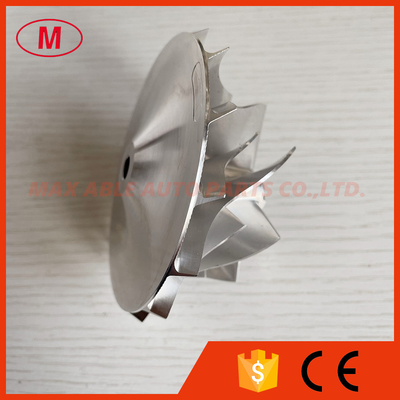

2. S300 66.10/92.61mm 7+7 blades 171449 turbo milling/aluminum 2618/billet compressor wheel for S366
3.Size:
Nose diameter:16.73mm
inducer:66.10mm
Exduder:92.61mm
Tapered tip exducer:99.44mm
Tip height:6.91mm
Superback:6.95mm
Overall height:50.58mm
bore size:8.01mm
bore type:through
Trailing Angle:45 degree
Cutback:5.9
SP height angle:-4.80
Blades height:40.35mm
Splitter height:24.75mm
Tapered tip Angle: 30 degree
7+7 blades
Forward rotation
It is for OE compressor housing.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the turbine shaft and compressor wheel have balanced .
The more models we also have.
