| Brand Name: | no |
| Model Number: | HX40 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:HX40 foward

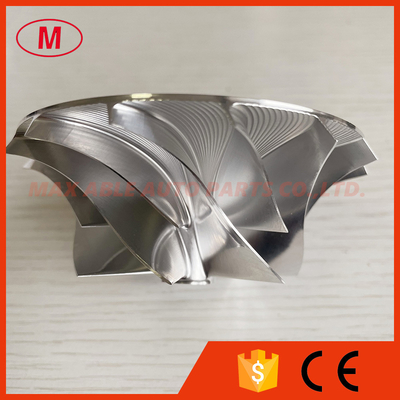

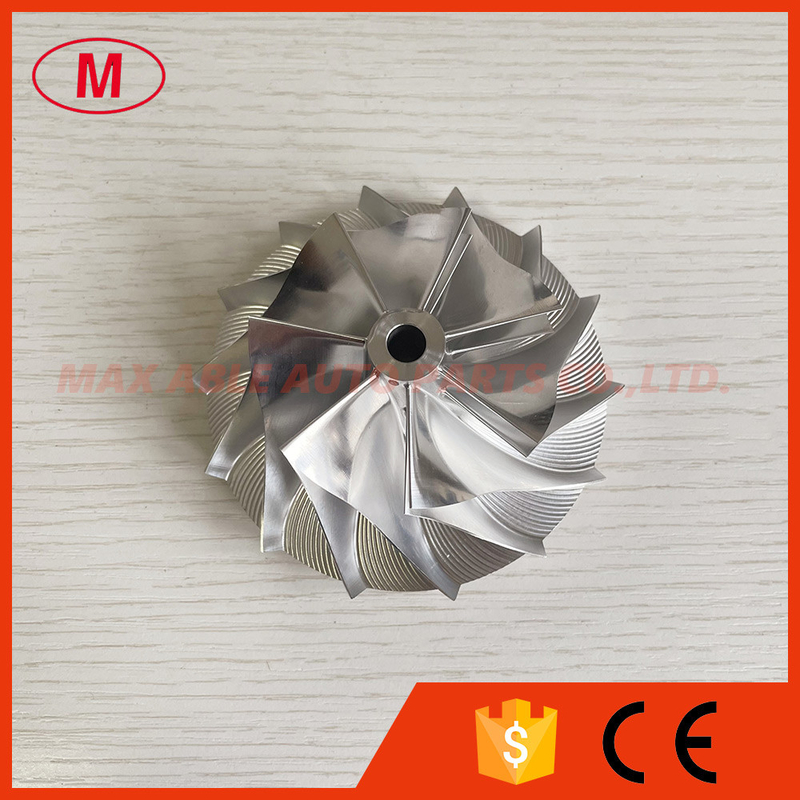

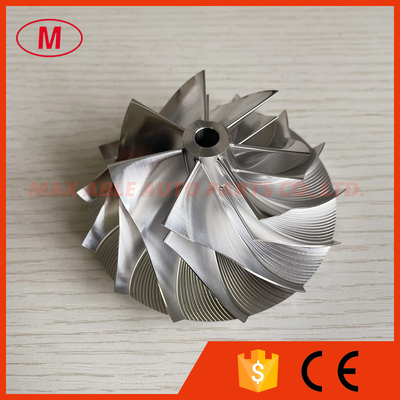

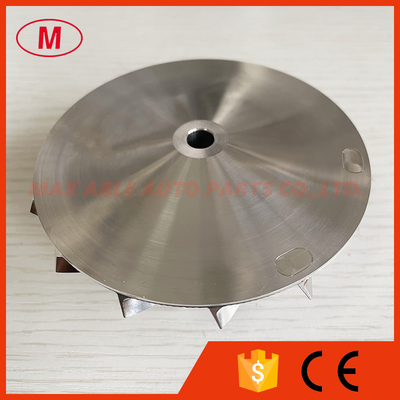

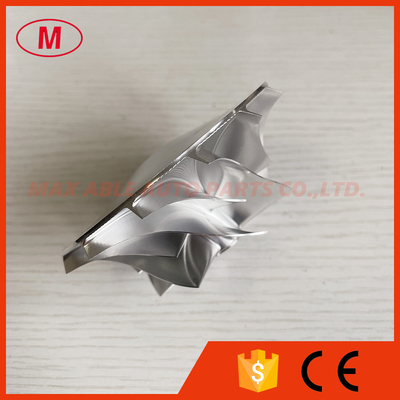

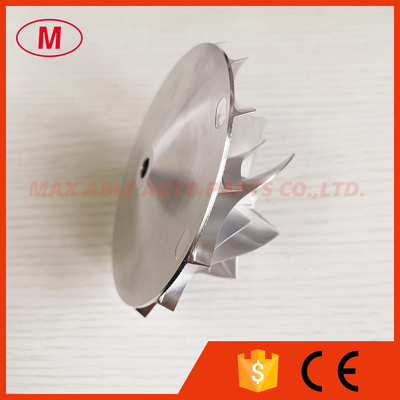

2.HX40 57.97/85.98mm 7+7 blades 3594834 high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for 3596787/3594628/3590503/3590502/3537949/3537941/3590502/4040044 Man/Iveco
3.Size:
Nose diameter:13.93mm
Inducer:57.97mm
Exducer:85.98mm
Tapered tip exducer:91.62mm
Tip height:5.89mm
super back:4.96mm
overall height:39.80mm
Bore size:7.00mm
bore type:through
Trailing Angle:70
Cutback:0.0
Sp height Angle:-3.90
Splitter height:21.85mm
Blade height:32.80mm
7 long 7 short
Tapered tip Angle:30 degree
Forward Rotation
Fit for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
6.Material:Aluminum 2618
