| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |

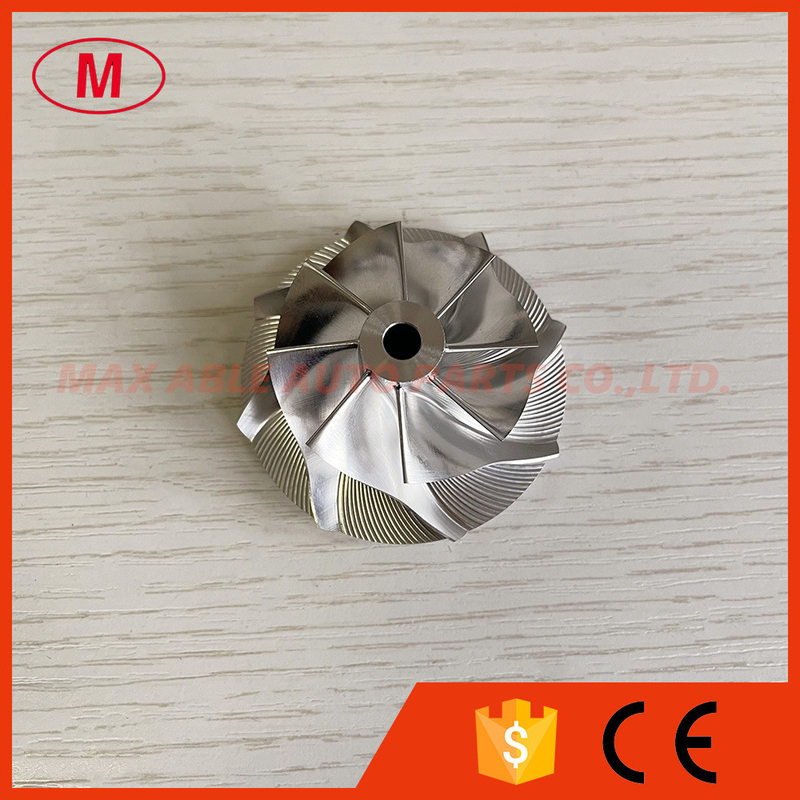

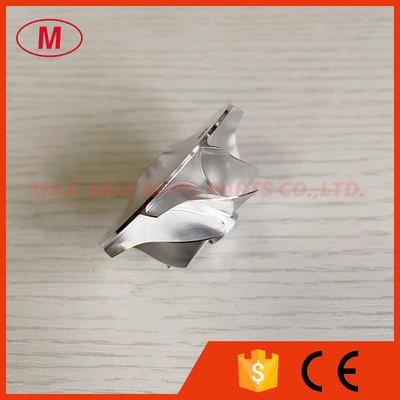

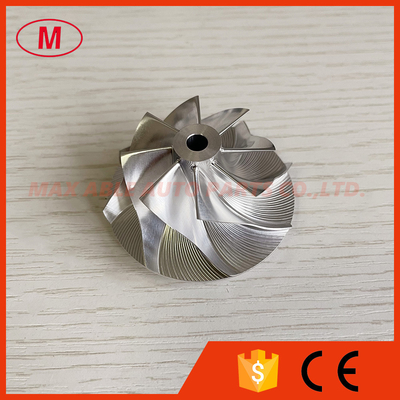

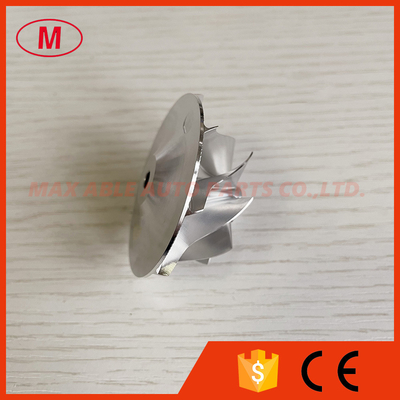

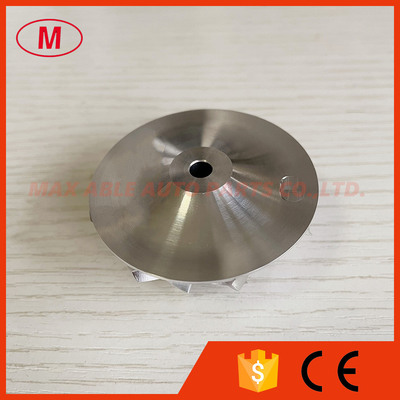

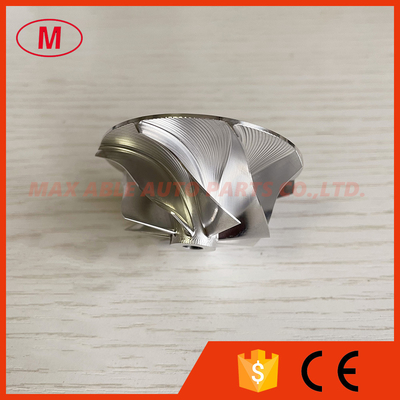

| Size: | 37.50/52.00mm | Type: | Turbochargers |
|---|
3.Size:
Nose diamter:11.60mm
inducer:37.50mm
Exduder:52.00mm
Tapered tip exducer:53.70mm
Tip height:4.29mm
Superback:3.90mm
Overall height:27.05mm
bore size :5.08mm
bore type: through
Trailing Angle:55 degree
Cutback:6.60
SP Height Angle:0.00
Blade height:21.00mm
Splitter Height:0.00mm
6+6 blades
forward rotation
Tapered tip angle:14.5 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.The minimum order is 5pcs
The more models we also have.
