| Brand Name: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 41.00/54.80mm | Type: | Turbochargers |
|---|
1.Model:RHF5 forward

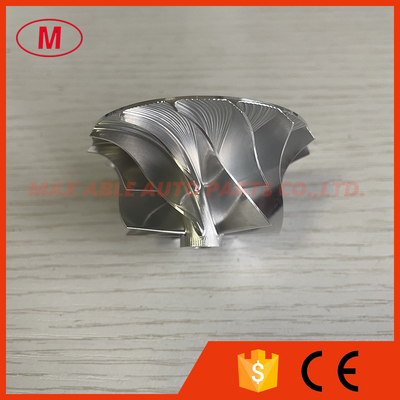

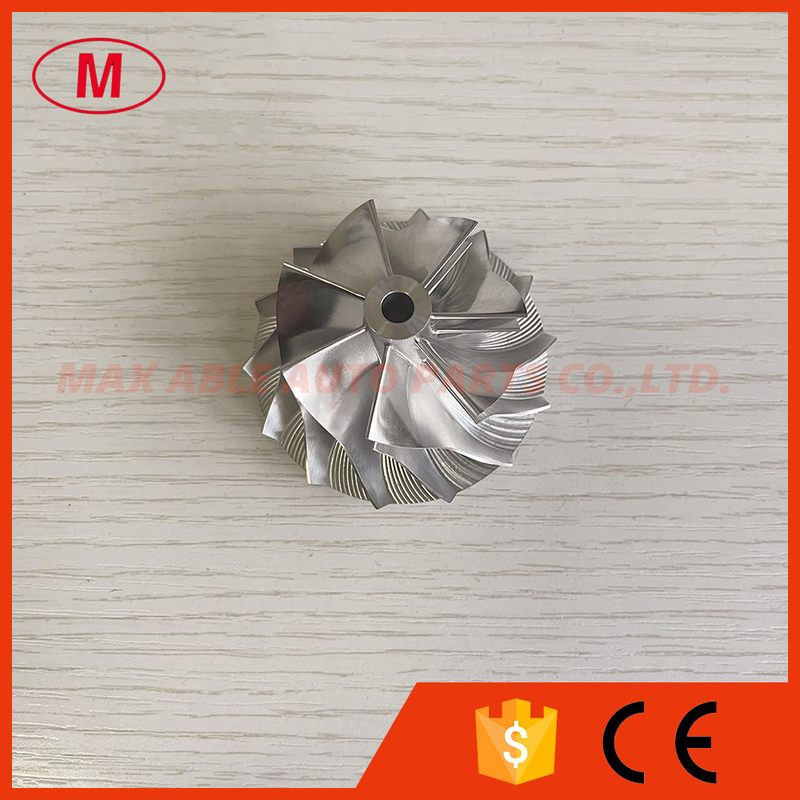

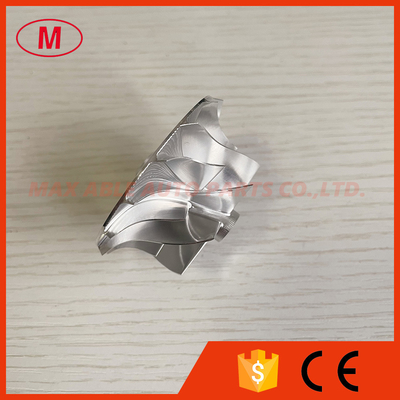

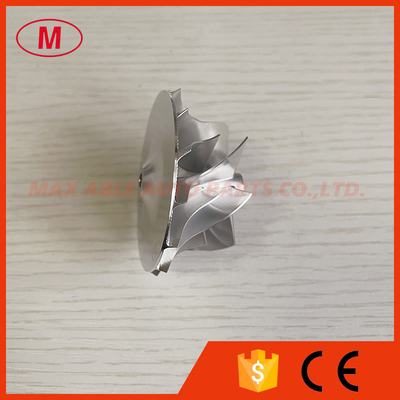

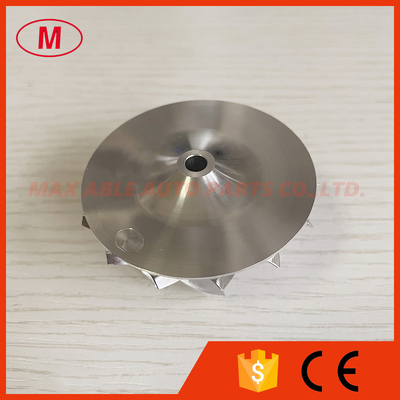

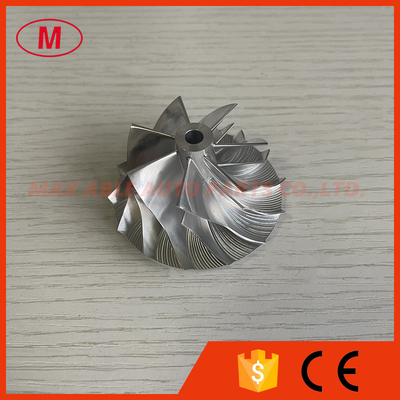

2.RHF5 41.00/54.80mm 7+7blades high performance turbo milling/aluminum 2618/billet compressor wheel
3.SIZE:
Nose Diameter:10.60mm
inducer:41.00mm
Exducer:54.80mm
Tapered tip exducer:57.91mm
Tip height:3.69mm
Superback:3.74mm
Overall height:31.90mm
bore size :5.11mm
Bore type:through
Trailing angle:60
Cutback:3.0
SP Height angle:-4.60
Splitter height:15.70mm
Blade height:25.13mm
7+7 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the compressor wheel have been balanced.
