| Brand Name: | NO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 50.39/68.01mm | Type: | Turbochargers |
|---|

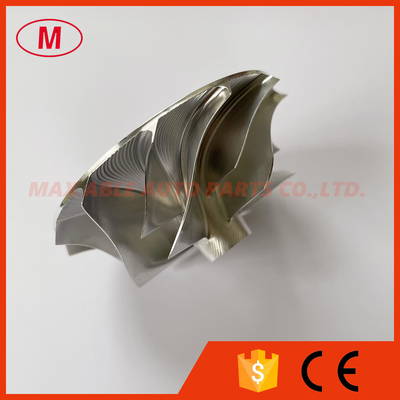

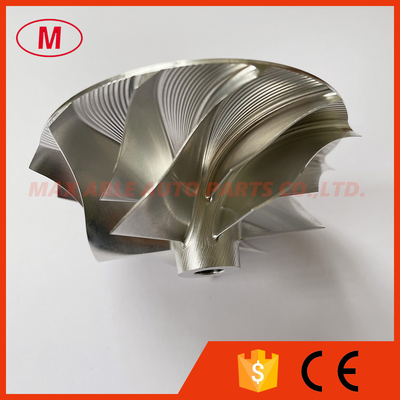

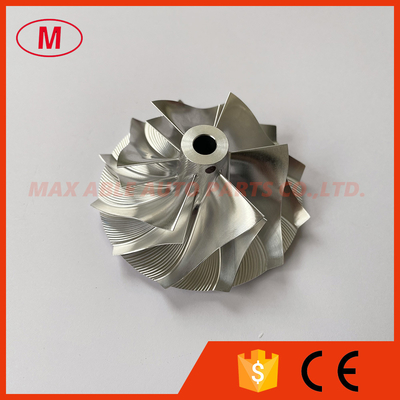

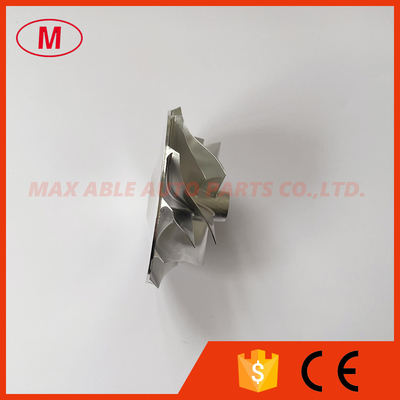

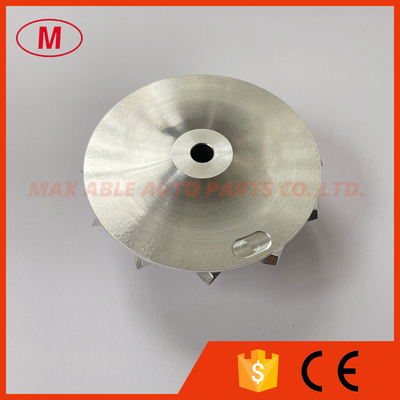

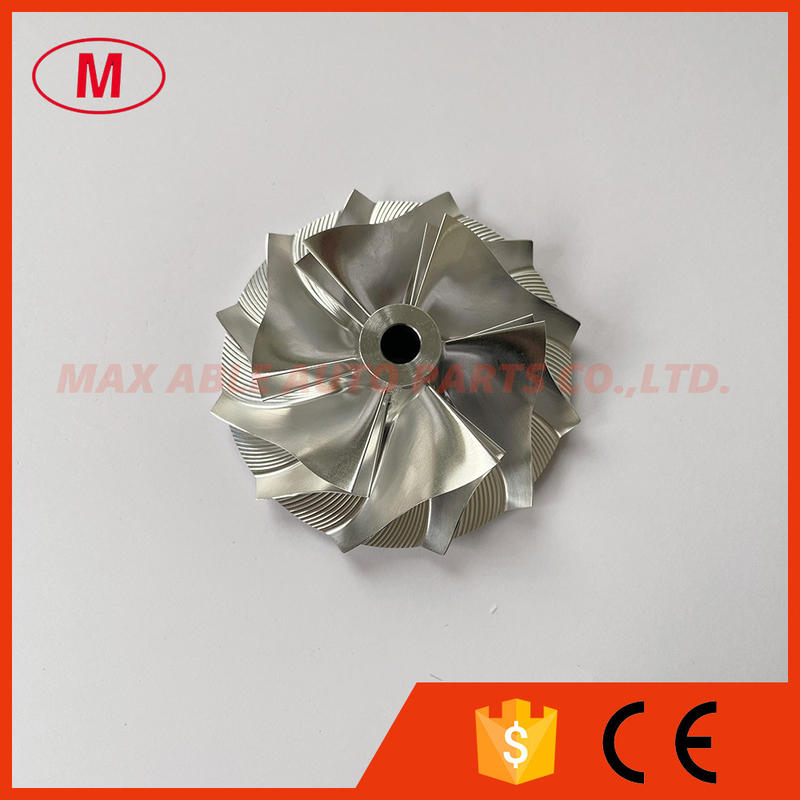

1.Model:TD05H 18G ,TD05H-18G reverse
3.Size:
Nose diameter:13.50mm
inducer:50.39mm
Exduder:68.01mm
Tapered tip exducer:72.46mm
Tip height:4.85mm
Superback:2.90mm
Overall height:31.50mm
bore size :6.50mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
Splitter height:15.65mm
Blades height:22.94mm
SP height angle:-4.00 degree
6+6 blades
reverse rotation
Tapered tip angle:30 degree
Fit for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
