| Brand Name: | NO |
| Model Number: | RHF5HB |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 54.06/71.40mm | Type: | Turbochargers |
|---|
1.Model:RHF5HB forward

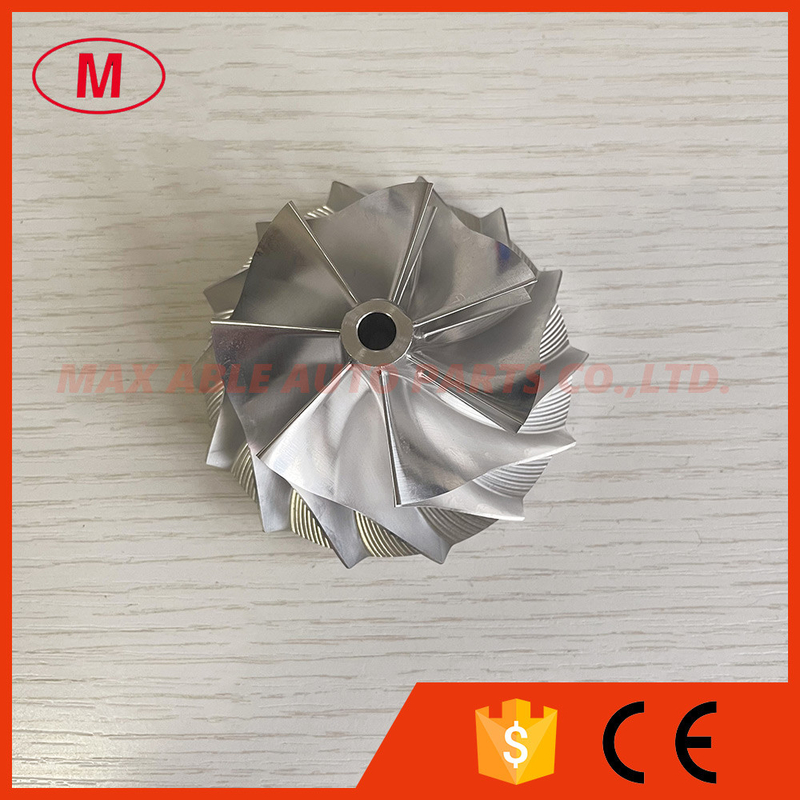

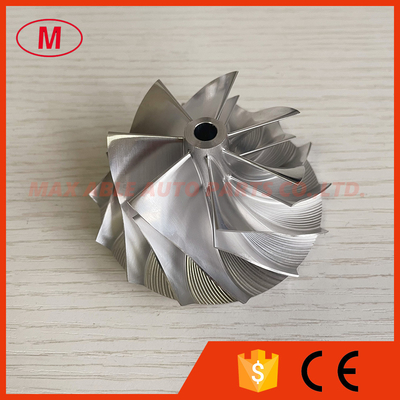

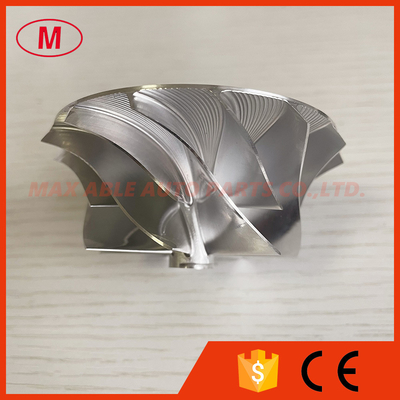

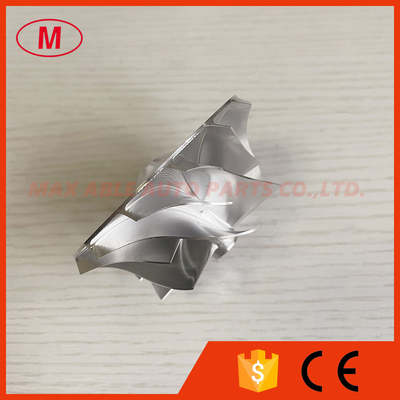

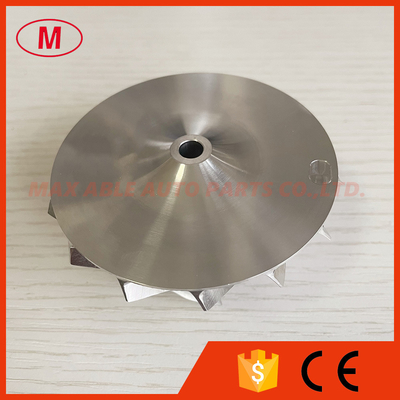

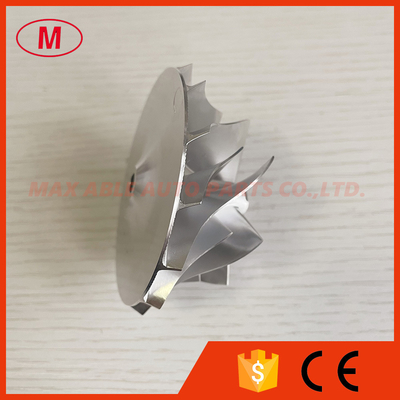

2. RHF5HB 54.06/71.40mm 7+7 Blades high performance slimnose billet/aluminum 2618 compressor wheel FOR racing
3.Size:
Nose diameter:11.38mm
Inducer:54.06mm
Exducer:71.40mm
Tapered tip exducer :76.51mm
Tip height:5.94mm
Superback:3.71mm
Overall height:37.00mm
Bore:6.10mm
Trailing angle:60
Cutback:0.0
SP height angle:-6.70
Blades height:29.88mm
Splitter height:20.30mm
7+7 blades
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price.
5.if you want to know more details ,please send email to me !
We have more model you want.
