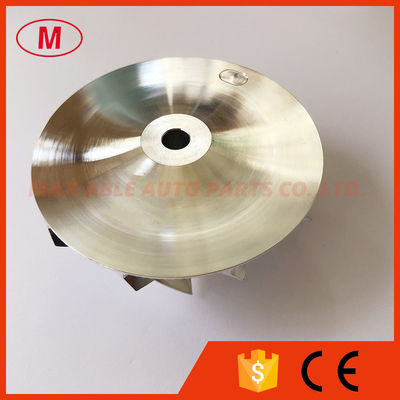

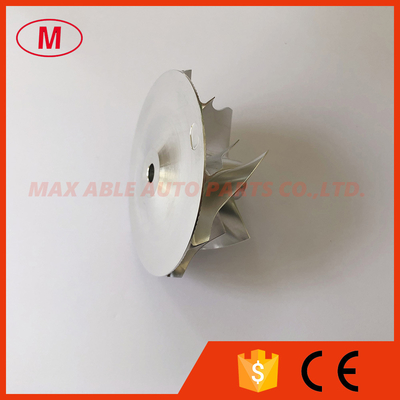

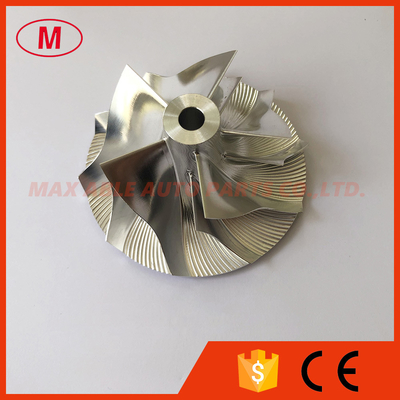

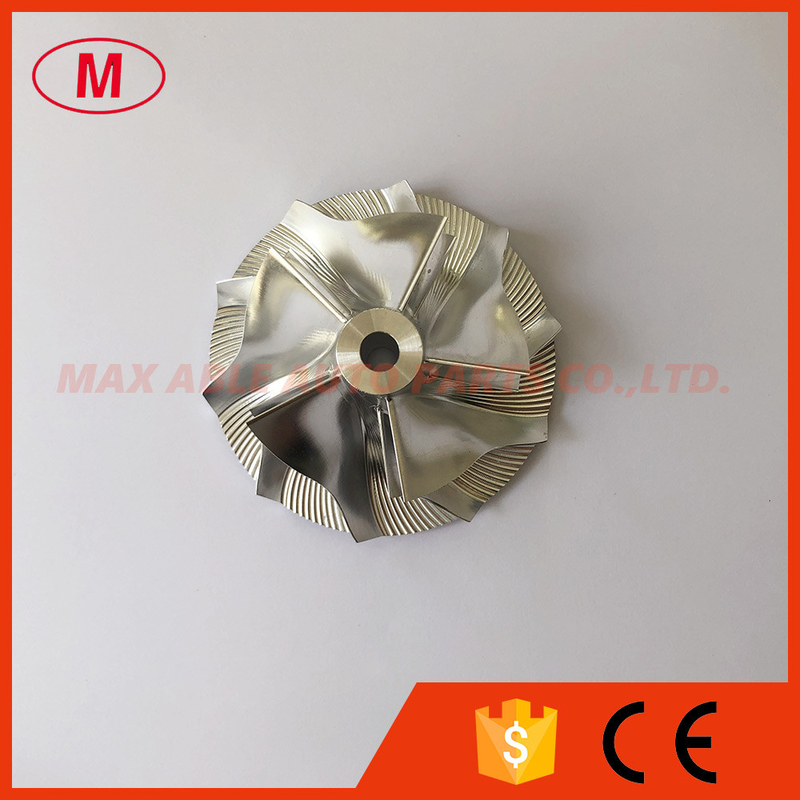

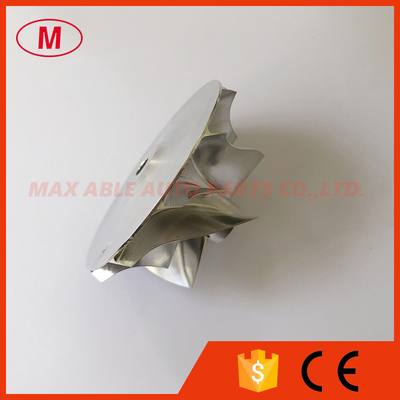

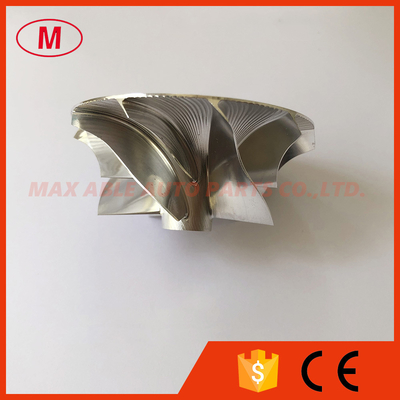

TD05H forward 51.20/69.10mm 5+5 blades Turbocharger milling/aluminum 2618/billet compressor wheel

1. MODEL:TD05H forward

2.TD05H forward 51.20/69.10mm 5+5 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel

3.Size:

inducer:51.20mm

exducer:69.10mm

Tapered tip exducer:71.11mm

Tip height:5.54mm

Superback:2.92mm

Overall height:33.83mm

bore size :6.50mm

Trailing angle:45

Cutback:-4.0

Blade height:27.19mm

5+5 blades

forward rotation

Tapered tip angle:12 degree

It is custom size ,please check carefully before buying

4.High quality and competitive price.

5.if you want more details, please send email to me.
