| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 52.02/71.94mm | Type: | Turbochargers |
|---|
1.Model:GT15-25 FORWARD

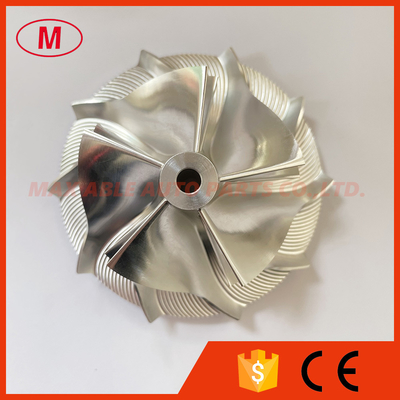

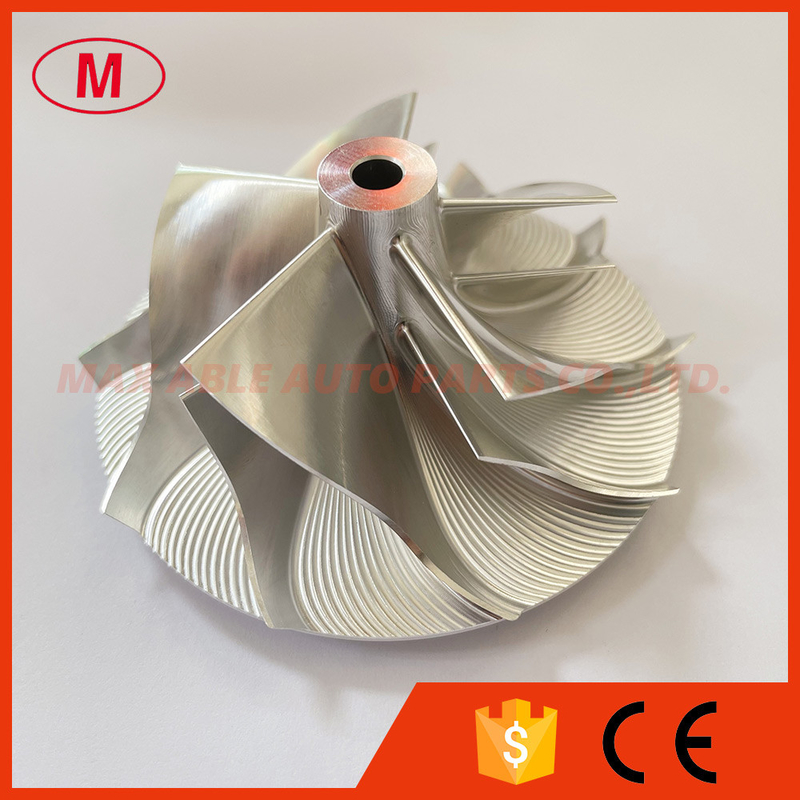

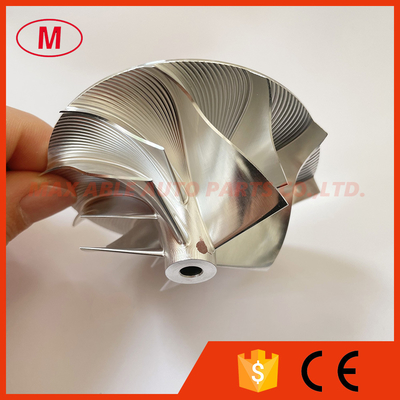

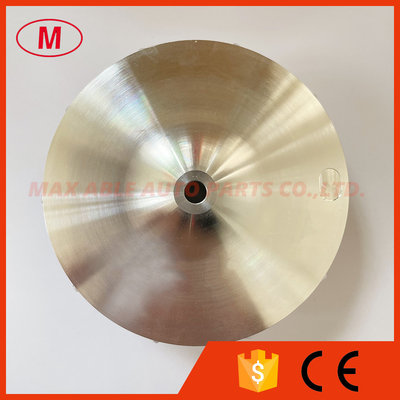

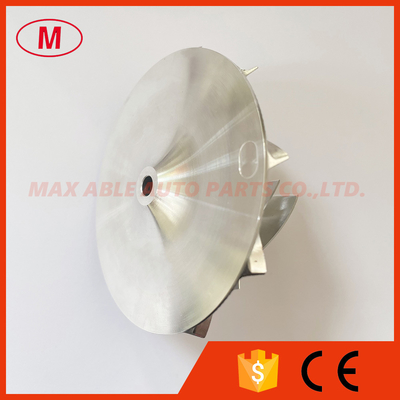

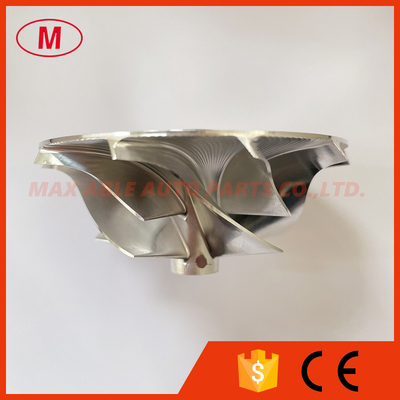

2. GT15-25 52.02/71.94mm 5+5 Blades turbo aluminum 2618/Milling/billet compressor wheel
3.Size:
Nose diameter:12.00mm
Inducer:52.02mm
Exducer:71.94mm
Tapered tip exducer:76.16mm
Tip height:4.66mm
Trailing angle:60
Superback:3.97mm
Overall height:34.50mm
Bore:5.08mm
Bore type:through
Cutback:10.1mm
SP Height angle:0.00
Blades height:26.64mm
Splitter height:16.00mm
5+5 blades
Tapered tip angle:30 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
All the compressor wheel have been balanced.
