| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 38.50/52.19mm | Type: | Turbochargers |
|---|
1. MODEL:GT15-25 forward

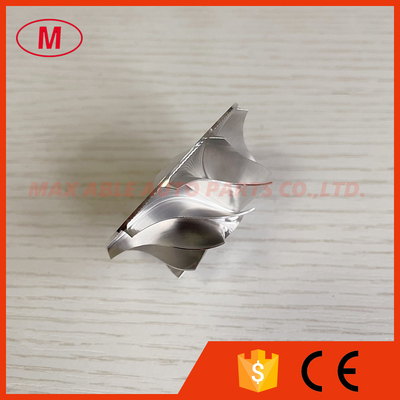

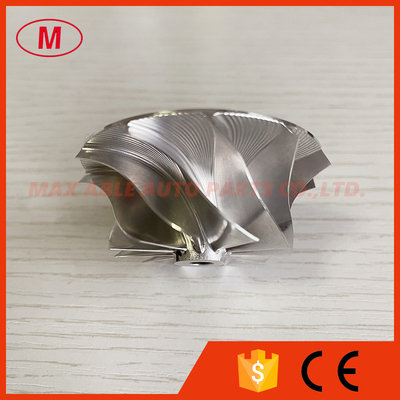

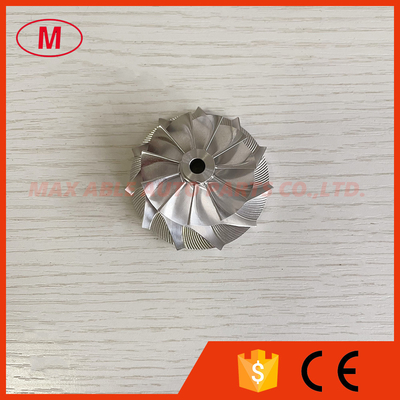

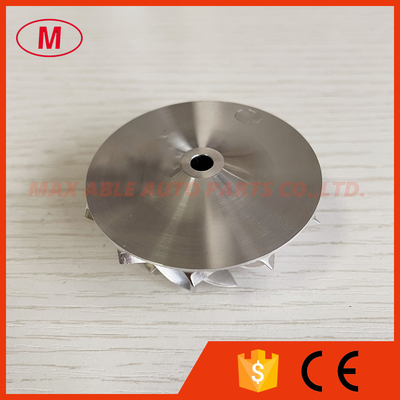

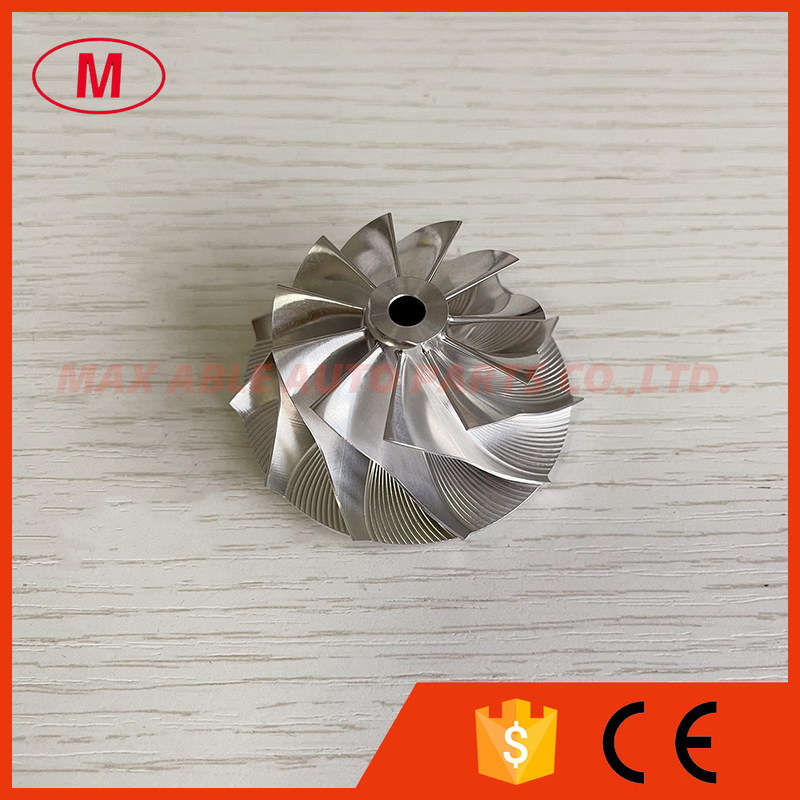

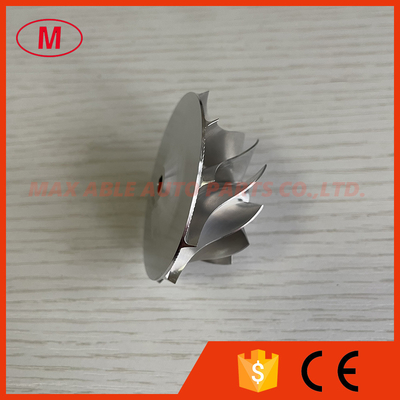

2.GT15-25 38.50/52.19mm 702492-0001, 702492-0004 11+0 blades turbo billet/milling/aluminum 2618 compressor wheel for 454135-0003, 454135-0004, 454135-0005, 454135-0008, 454135-0009, 454135-0010, 454205-0003, 710060-0001,710415-0001, 710415-0003, 714334-0001, 723167-0001, 723167-0002, 723167-0003, 723167-0004, 724639-0005, 724639-0006, 727461-0006, 733952-0001, 742693-0001, 742693-0002, 742693-0003
3.Size:
Nose diameter:11.50mm
inducer:38.50mm
Exduder:52.19mm
Tapered tip exducer:55.19mm
Tip height:3.60mm
Superback:2.39mm
Overall height:24.67mm
bore size :5.08mm
Trailing Angle:60
Cutback:0.0
SP Height angle:0.00
Blades height:20.35mm
Splitter height:0.00mm
11+0 blades
Forward rotation
Tapered tip angle:30 degree
Fit for OE compressor housing
Application:
454135-0003
454135-0004
454135-0005
454135-0008
454135-0009
454135-0010
454205-0003
710060-0001
710415-0001
710415-0003
714334-0001
723167-0001
723167-0002
723167-0003
723167-0004
724639-0005
724639-0006
727461-0006
733952-0001
742693-0001
742693-0002
742693-0003
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
