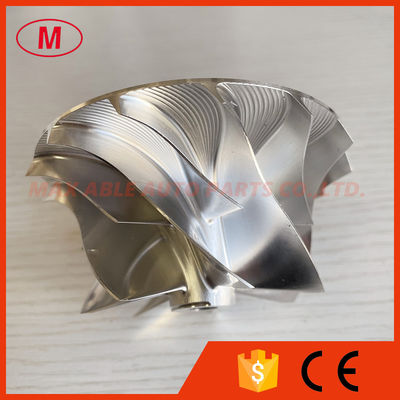

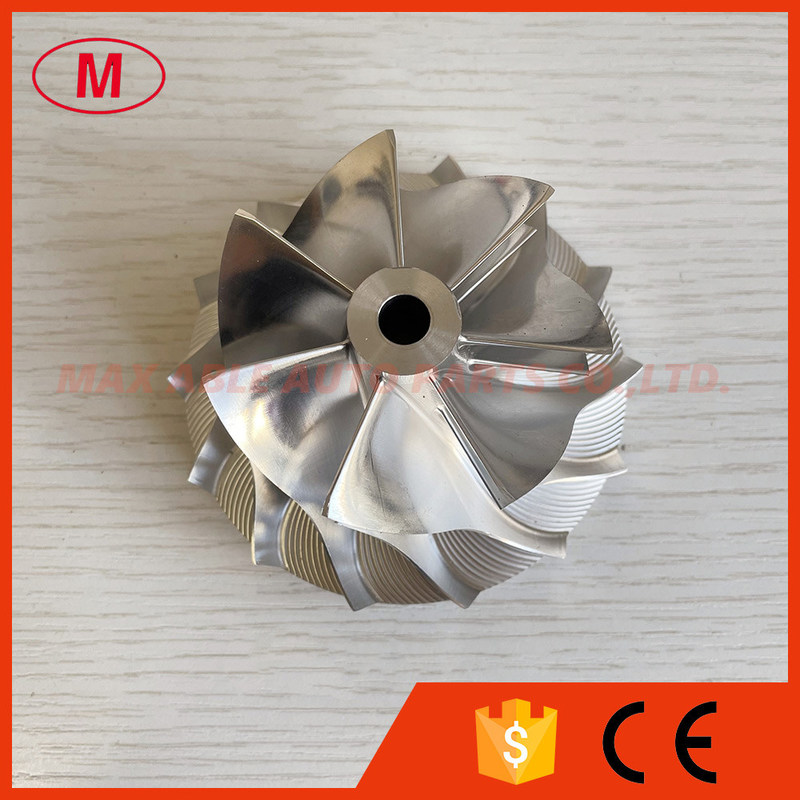

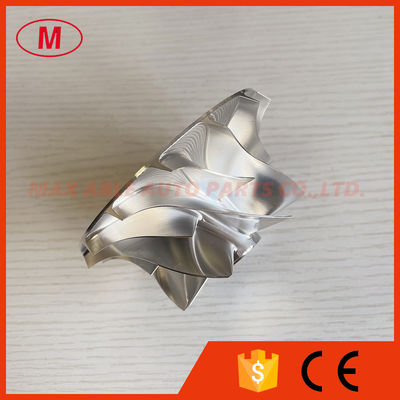

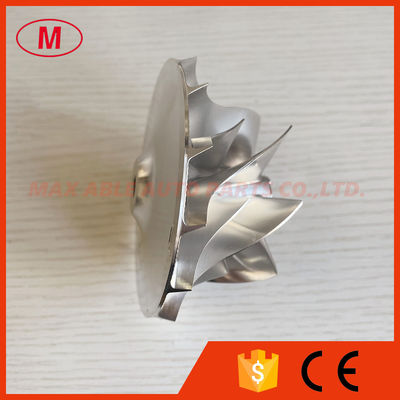

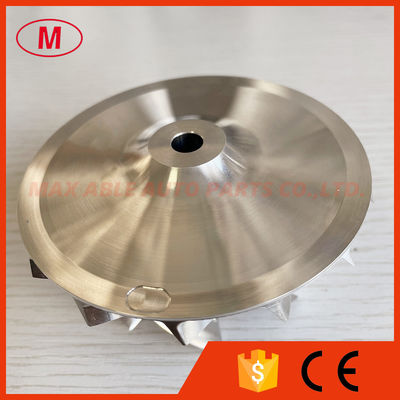

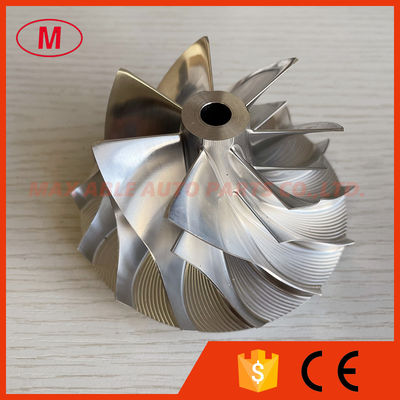

S300 316538 64.49/88.55mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel for 318974/316536

1. MODEL:S300 forward

2.S300 316538 64.49/88.55mm 7+7 blades turbocharger Billet/milling/aluminum 2618 compressor wheel for 318974/316536
3.Size:

Nose diameter:17.67mm

inducer:64.49mm

Exducer:88.55mm

Tapered tip exducer:92.46mm

Tip height:7.02mm

Superback:7.01mm

Overall height:49.09mm

Bore size:8.01mm

bore type:through

Trailing angle:65

Cutback:-10.0

Splitter height:24.05mm

SP height angle:-9.30

Blades height:41.06mm

7+7 blades

forward rotation

Tapered tip angle:18degree

Fits OE Compressor Housing

4.High quality and competitive price.

5.Any questions please send email to me.
