| Brand Name: | NO |
| Model Number: | GTX3071 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

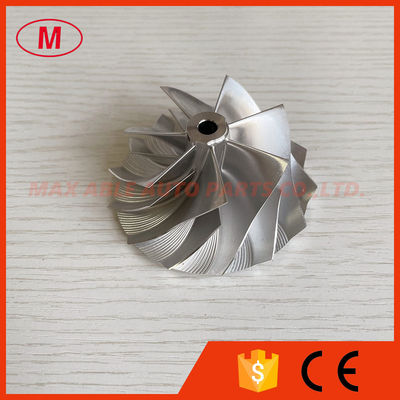

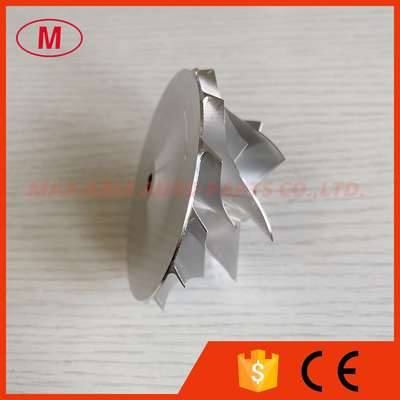

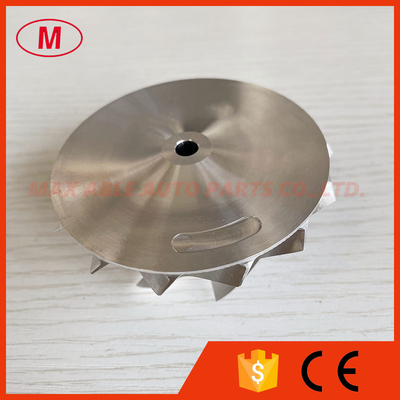

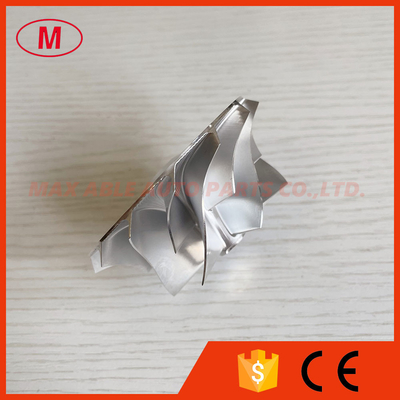

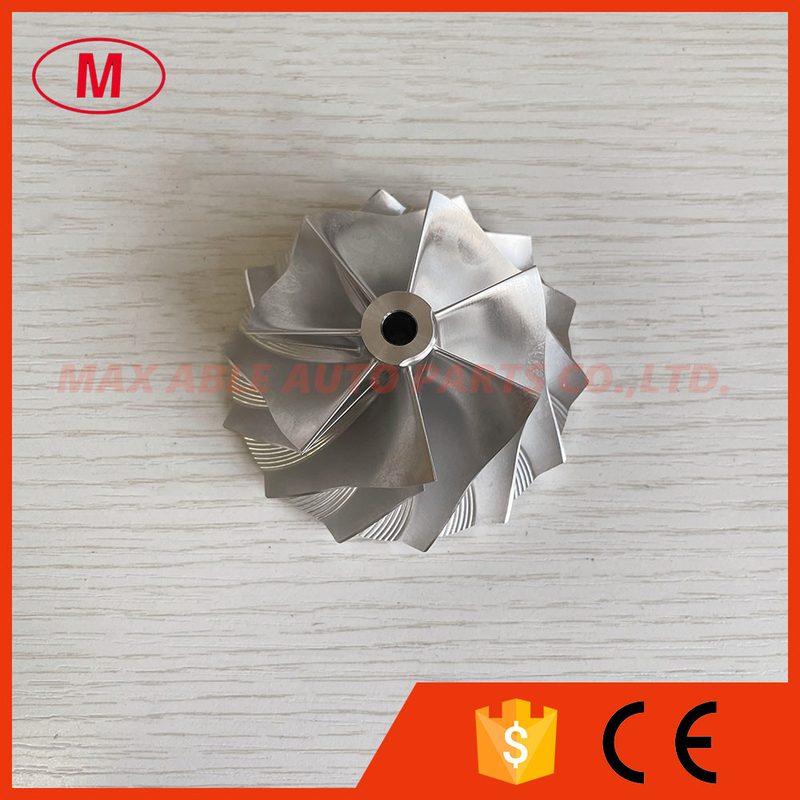

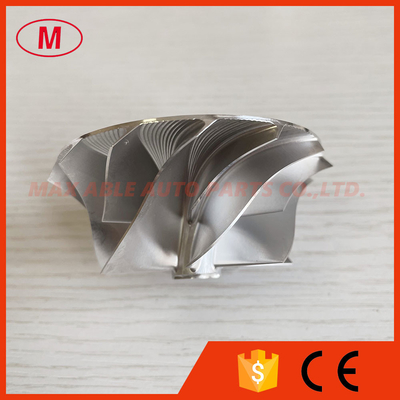

1.Model:GTX3071 reverse
3.Size:
Nose diamter:13.33mm
inducer:54.06mm
Exduder:71.40mm
Tapered tip exducer :76.51mm
Tip height:5.43mm
Superback:2.36mm
Overall height:34.60mm
bore size :6.01mm
bore type:through
Traling angle:45
bore type:through
Cutback:0.00
SP height angle:0.00
Splitter height:17.90mm
Blade height:29.88mm
7+7 blades
reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
ALL the billet compressor wheels have been balanced.
The more models we also have.
