| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

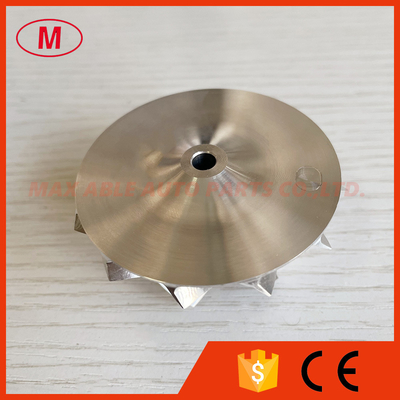

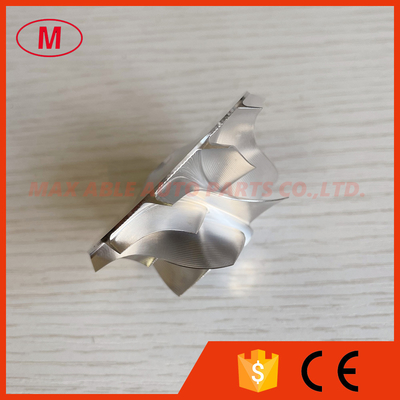

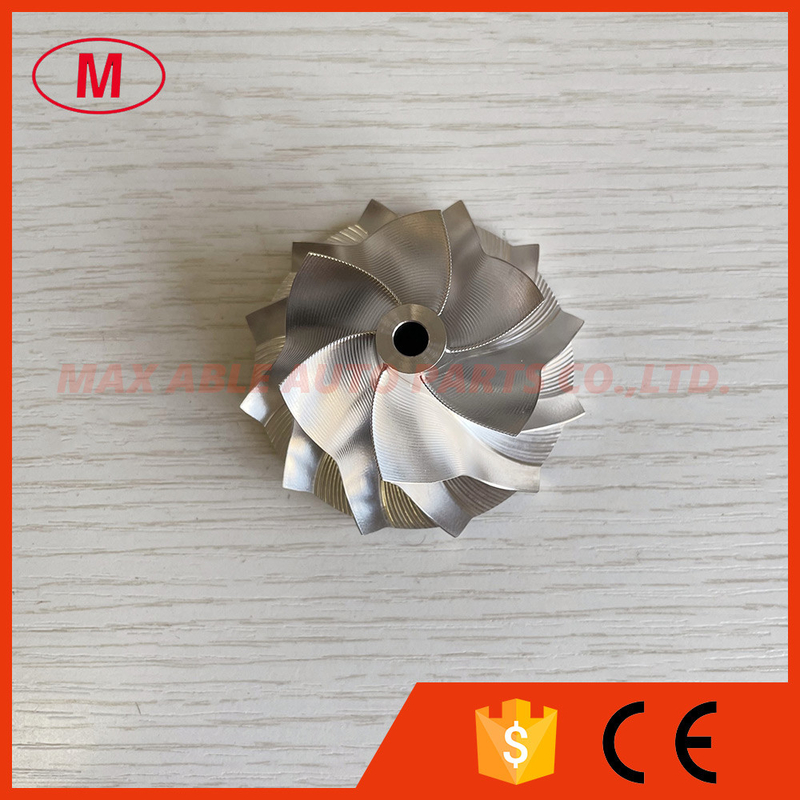

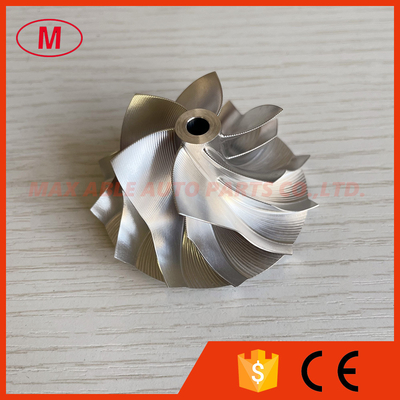

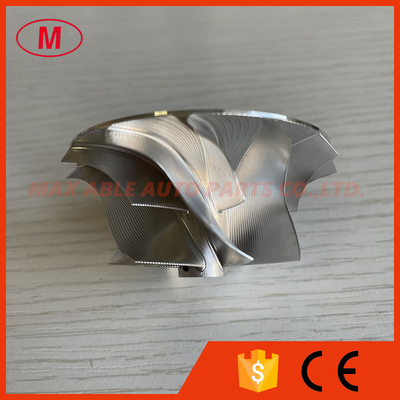

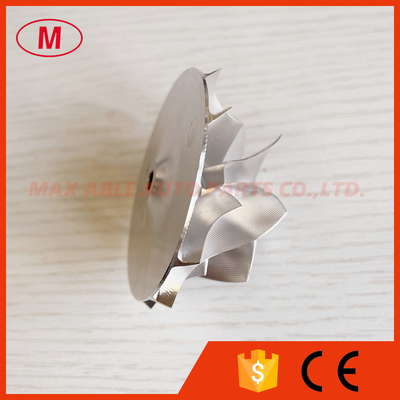

1. MODEL:GT15-25 FORWARD
2.GT15-25 6+6 blades 41.52/56.02mm 701374-0001/701374-0006 high performance point milling air curve turbocharger billet/milling/aluminum 2618 compressor wheel for 454191-0001/454191-0003/454191-0004/454191-0005/454191-0006/454191-0007/454191-0008/454191-0009/454191-0010/454191-0011/454191-0012/454191-0013/454191-0015/454191-0017
3.Size:
Nose diameter:10.42mm
inducer:41.52mm
Exduder:56.02mm
Tapered tip exducer:60.31mm
Tip height:4.71mm
Superback:2.39mm
Overall height:29.30mm
bore size :5.08mm
Trailing angle:50
Cutback:4.00
SP height angle:0.00
Blade height:24.90mm
Splitter height:0.00mm
6+6 blades
Tapered tip angle:30 degree
It is for OE compressor housing
4.Application:
454191-0001
454191-0003
454191-0004
454191-0005
454191-0006
454191-0007
454191-0008
454191-0009
454191-0010
454191-0011
454191-0012
454191-0013
454191-0015
454191-0017
5.High quality and competitive price.
6.if you want more details, please send email to me.
We can produce as your requirement.
All the billet wheels have been balanced.
Skype: maxabledieselparts
Wechat/Whatsapp:+86-18018657719
The more models we also have.
