| Brand Name: | NO |
| Model Number: | HX35 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 49.70/67.40mm | Type: | Turbochargers |
|---|
1. MODEL:HX35 forward

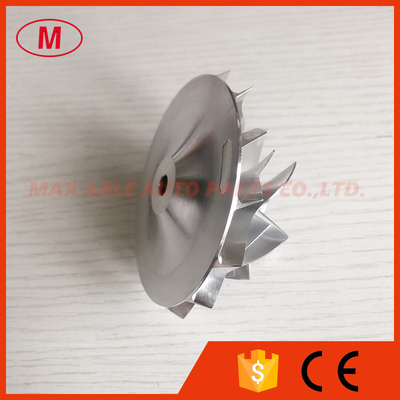

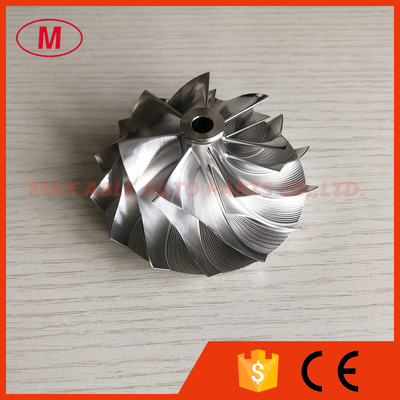

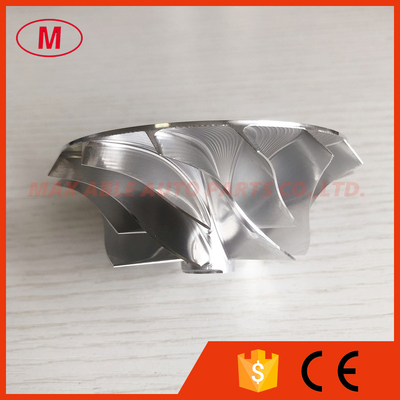

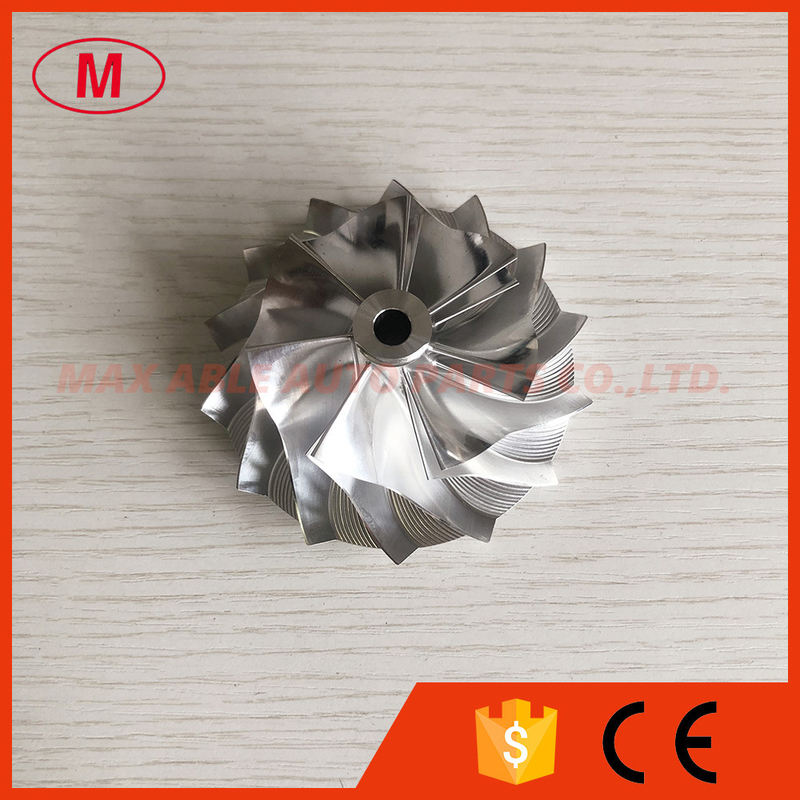

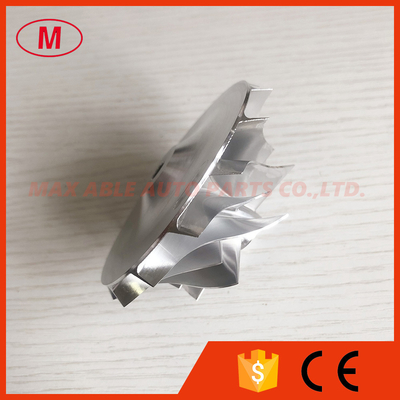

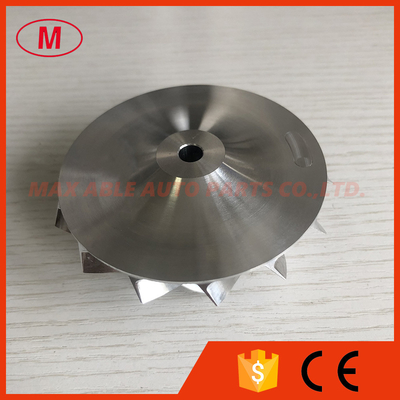

2. HX35 56.00/78.00mm 7+7 blades turbocharger billet/milling/aluminum 2618 compressor wheel
3:Size:
Nose diameter:14.84mm
inducer:56.00mm
Exducer:78.00mm
Tapered tip exducer:84.93mm
Tip height:7.00mm
Superback:5.09mm
Overall height:38.00mm
Bore size:7.00mm
bore type:through
Trailing angle:60 degree
Cutback:0.0
SP Height angle:0.00
Blades height:29.47mm
Splitter height:21.50mm
7+7 blades
5.Any questions please send email to me.
All the billet compressor wheels have been balanced
