| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | HX60 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

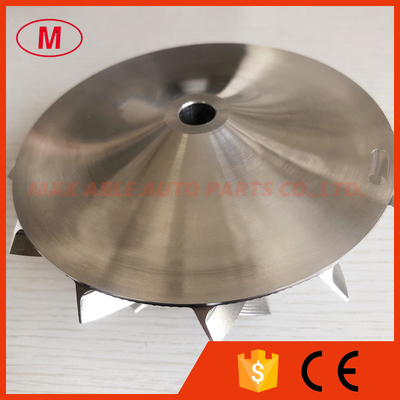

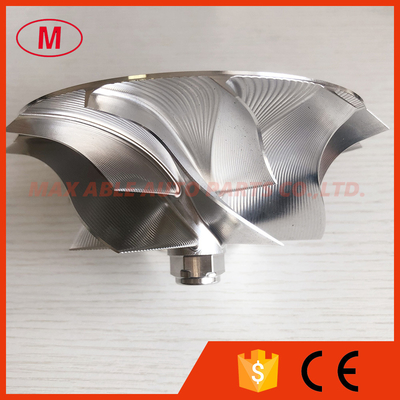

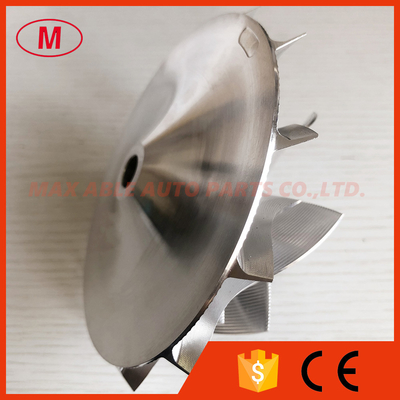

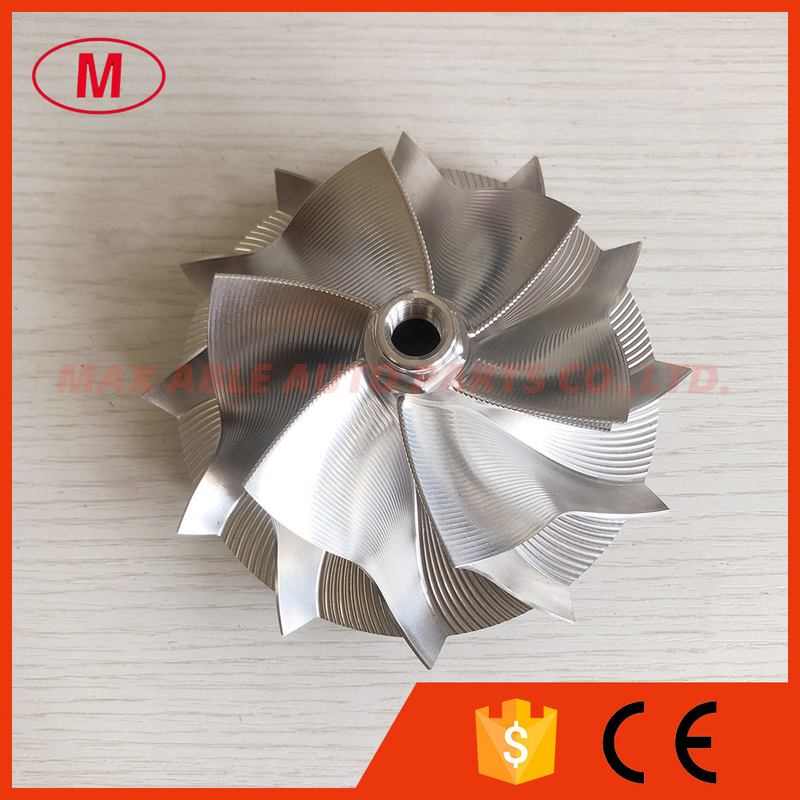

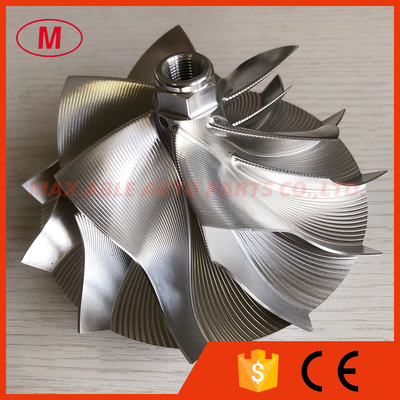

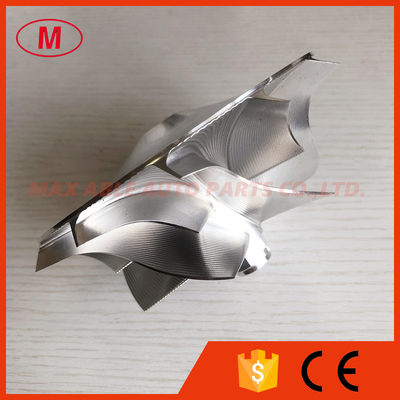

1. MODEL:HX60 forward
2. HX60 88.70/118.00mm 6+6 blades point milling high performance turbo billet/milling/Aluminum 2618 compressor wheel
3.Size:
Nose Diameter:21.00mm
inducer:88.70mm
Exducer:118.00mm
Tapered tip exducer:131.28mm
Tip height:8.14mm
Superback:9.68mm
Overall height:65.00mm
Bore size:11.12mm
bore type:Threaded-M11x1.0LHT
Trailing angle:60
Cutback:0.0
Splitter height:25.20mm
SP height angle:0.00
Blades height:42.00mm
6+6 BLADES
forward rotation
Tapered tip angle:45 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.We have many size.
All the compressor wheel have been balanced.
