| Model Number: | CT12 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|
1. MODEL:CT12 FORWARD

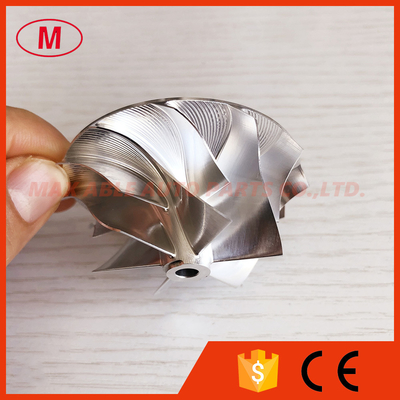

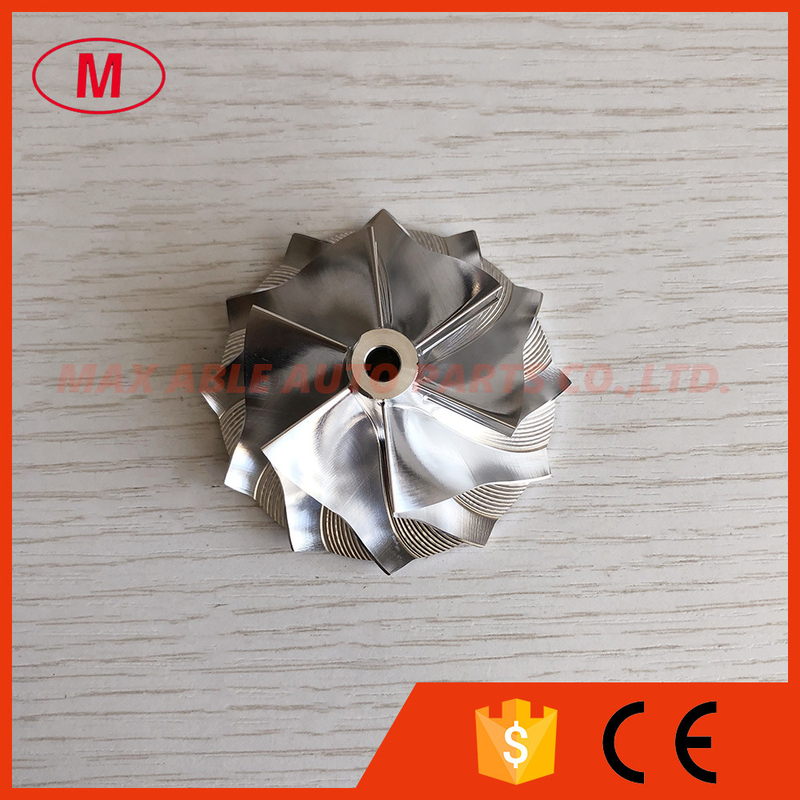

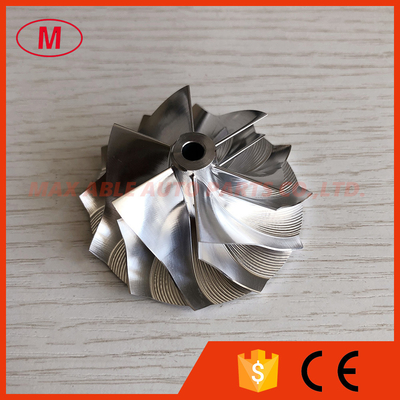

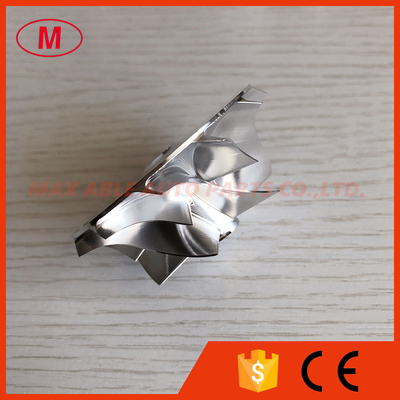

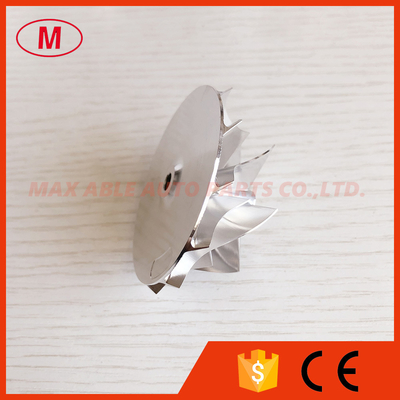

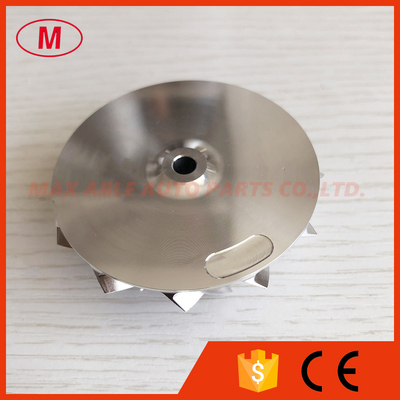

2.CT12 6+6 blades 43.08/58.03mm 17291-67010 high performance turbocharger milling/aluminum 2618/billet compressor wheel for 17201-67010, 17201-67020, 17201-67040 Landcruiser /TD/4 RUNNER 3.0L D 1KZ-T
3.Size:
Nose diameter:10.50mm
inducer:43.08mm
Exduder:58.03mm
Tapered tip exducer:62.28mm
Tip height:4.68mm
Superback:1.04mm
Overall height:26.48mm
bore size :5.10mm
bore type:through
Trailing angle:45 degree
Cutback:0.00
SP height angle:-10.00
Splitter height:14.80mm
Blade height:23.40mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The minimun order is 5pcs
All the billet compressor wheels have been balanced.
