| Brand Name: | NO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | NEUTRAL PACKING |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | Western Union, MoneyGram, T/T,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD05H forward

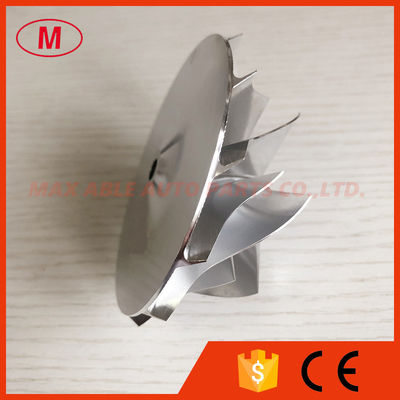

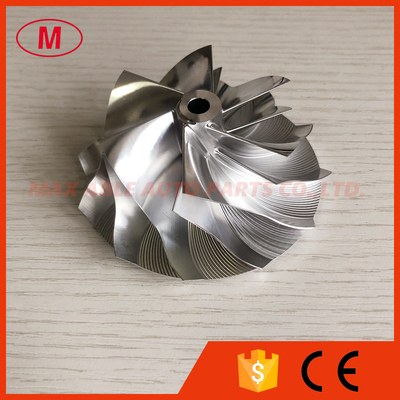

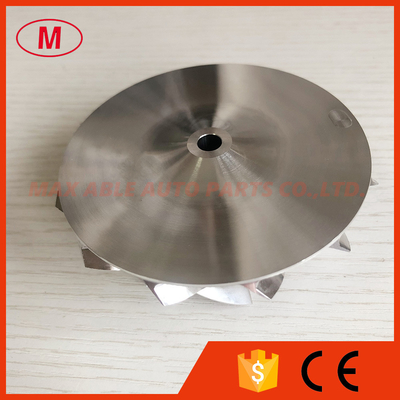

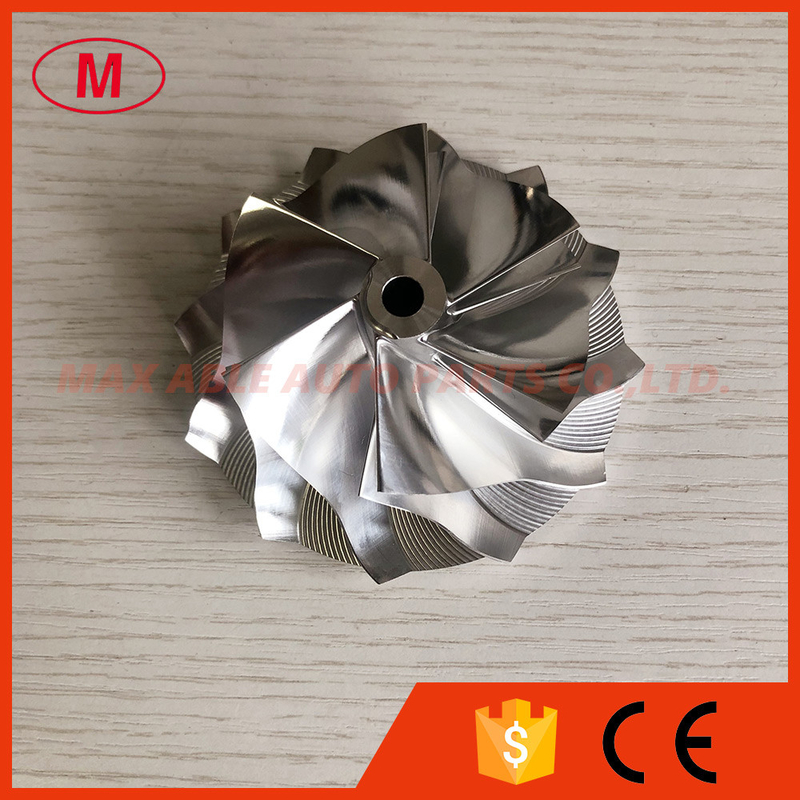

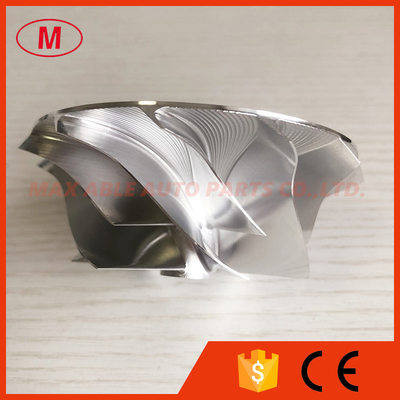

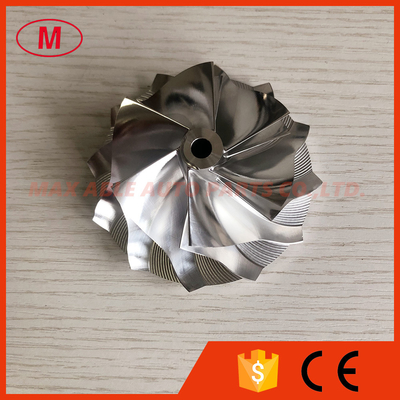

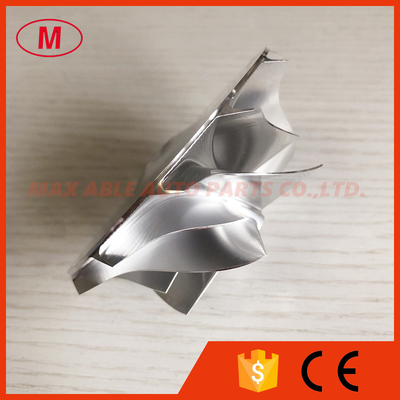

2.TD05H 61.33/82.00mm 6+6 blades high performance Turbocharger Billet/aluminum 2618/milling compressor wheel
3.Size:
Nose diameter:13.72mm
inducer:61.33mm
Exduder:82.00mm
Tapered tip exducer:87.37mm
Tip height:5.65mm
Superback:2.90mm
Overall height:35.60mm
bore size :6.50mm
Trailing angle:45 degree
Cutback:0.0
Blade height:30.98mm
SP height angle:-5.00
Splitter height:22.10mm
6+6 blades
Forward rotation
Tapered tip angle: 30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
THE minimum order is 5pcs
