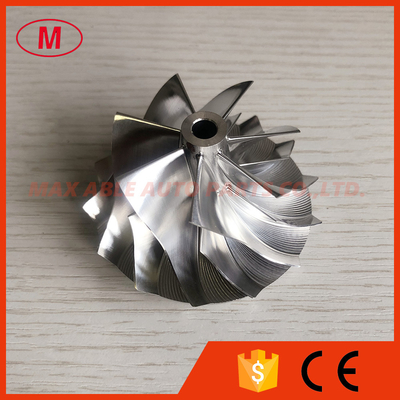

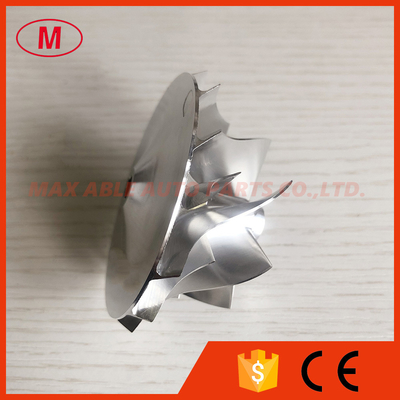

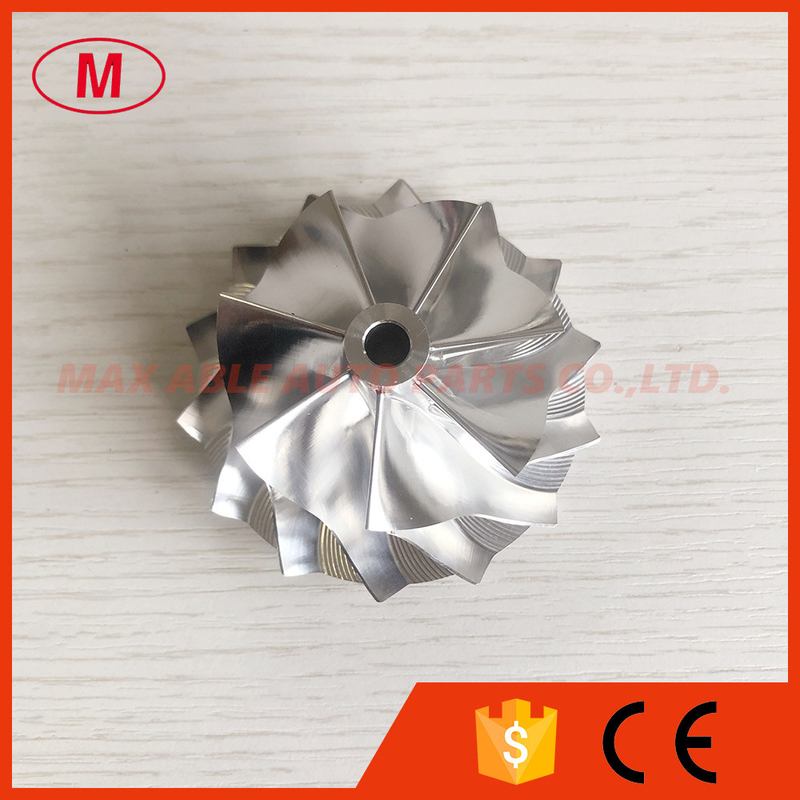

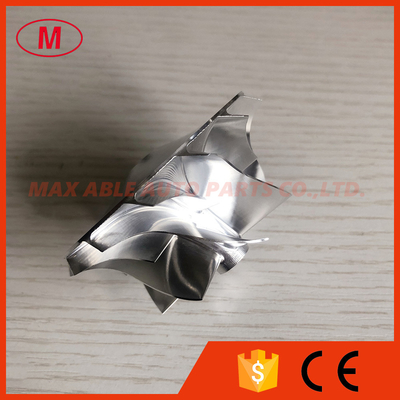

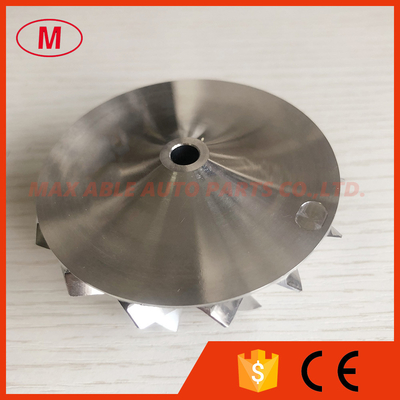

RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu

RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu

    • RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu
    • RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu
    • RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu
    • RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu
    • RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu
    • RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu
    • RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu

    Product Details:

    Model Number: RHF55

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:RHF55 forward
    2.RHF55 48.62/65.00mm 7+7 blades high performance Turbo aluminum 2618/milling/ Billet compressor wheel
    3.Size:
    Nose diameter:11.45m
    Inducer:48.62mm
    exducer:65.00mm
    Tapered tip exducer:69.99mm
    Tip height :5.32mm
    superback:4.53mm
    Overall height:37.92mm
    Bore size:6.10mm
    bore type:through
    Trailing angle:45 degree
    Cutback:0.0mm
    SP height angle:0.00
    Splitter height:15.70mm
    Blade height:29.66mm
    7+7 blades
    Forward
    Tapered tip angle:30 degree
    It is for OE compressor housing
    4.High quality and competitive price.
    5.Any questions please send email to me.

    RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzuRHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzuRHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzuRHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzuRHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzuRHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzuRHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzuRHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu
